95
Editing Parameters

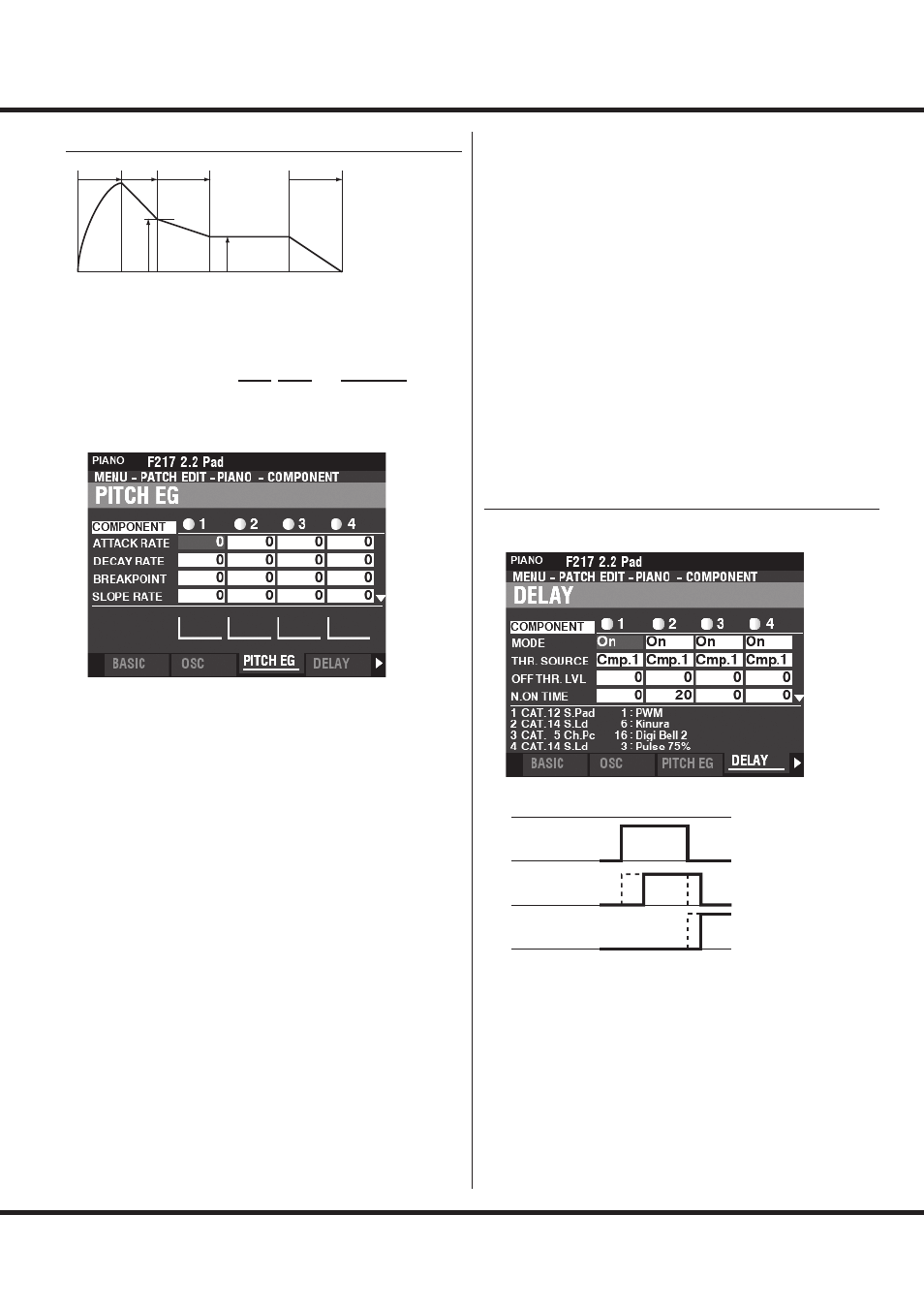

COMPONENT - PITCH EG
Attack Decay Slope Release
Breakpoint
Sustain
On Off
Th e EG ( Envelope Generator) allows you to control how the
sound changes over time by playing notes on the keyboard.
Th
e illustration above illustrates the structure of the Envelope
Generators for the PIANO/ENSEMBLE Section.
Th
ere are three (3) EG’s: Pitch , Filter and Amplitude .
NOTE: The PITCH EG DEPTH Parameter must be set to some value
other than “0” to hear the eff ect produced by the PITCH EG.
NOTE: Use the DIRECTION [  ] button to move the screen down to
see the additional Parameters.
ATTACK RATE
Setting Range: 0 ~ 127
Th is allows you to adjust the time for the pitch to increase to its
peak value beginning when a key is depressed.
DECAY RATE
Setting Range: 0 ~ 127
Th is allows you to adjust the time from the peak amount to the
Breakpoint Level (explained below).
BREAKPOINT LEVEL
Setting Range: 0 ~ 127
Th is allows you to adjust the level of the point immediately
following the Attack.
A higher value will set a higher pitch as the Breakpoint.
SLOPE RATE
Setting Range: 0 ~ 127
Th is allows you to adjust the time from the Breakpoint Level to
the Sustain Level (explained below).
A higher value decreases the time required for the sound to
return to the base frequency. A lower value increases the time.
SUSTAIN LEVEL
Setting Range: 0 ~ 127
Th is allows you to adjust the main level which will remain until
the key is released.
A higher value will set a higher pitch as the Breakpoint.
RELEASE RATE
Setting Range: 0 ~ 127
Th is allows you to adjust the time for the level to fade from the
Sustain Level to zero after the key is released.
A higher value will result in a longer Release time.
KEY TRACK ATTACK
KEY TRACK DECAY
KEY TRACK SLOPE
KEY TRACK RELEASE
Setting Range: 0 ~ 127
Th ese allows you to adjust the rate and amount of the Pitch EG
by note.
At “0” each note will sound the same Pitch EG. At “1 ~ 127”
the rate and amount of Pitch EQ will be determined by the note
being played. “127” will cause the envelope to respond by the
maximum amount.
VEL TRACK ATTACK
VEL TRACK RELEASE
Setting Range: 0 ~ 127
Th ese allows you to adjust the rate and amount of the Pitch EG
by key velocity.
A higher velocity will result in a more pronounced EQ.
NOTE: The Velocity Parameter in the COMBINATION Function Mode
must be “ON” (values 1 ~ 4) in order to hear the effect of
Velocity Tracking.
COMPONENT - DELAY
Th is allows you to adjust the note delay characteristics of the
selected Component.
MODE
Trigger
Input
Delay Mode
Note ON
Delay Mode
Note OFF
On Off
Th is allows you to select how the notes will sound.
Note On .......... When the note is “ON,” the selected Component sounds at
the Note On Delay Time. When the note is “OFF” the sound
will stop after the Note Off Delay Time.
Note Off Vel .. The selected Component does not sound even if the
note is “ON.” If the note is “OFF,” it will sounds if the
Amplitude EG level of the referenced Component is above
the Note Off Threshold Level. The velocity of the note
will be determined by the velocity with which the key is
depressed.
Note Off EG ... Similar to Note Off Vel, except that the velocity of the note
will be determined by the level of the Amplitude EG of the
referenced Component.
NOTE: Using one of the “Note Off ” settings may cause played notes
to cipher or “stick on” To avoid this, set the Sustain Level of
the Amplitude EG at “0” if you are using one of the “Note Off ”
settings.
