User’s Manual of GSW-4804SF
-10
APPENDIX B
802.1Q VLAN Multi-Untagged VLAN setting sample 1
GSW-4804SF had added the multiple untagged VLAN function on a port. The function could be applied at if the members of two
or more different VLAN groups all have to access the same server/AP/Printer. But the two VLAN groups are separated and can’t
access to each other. The graphic in
Figure B-1
appears.

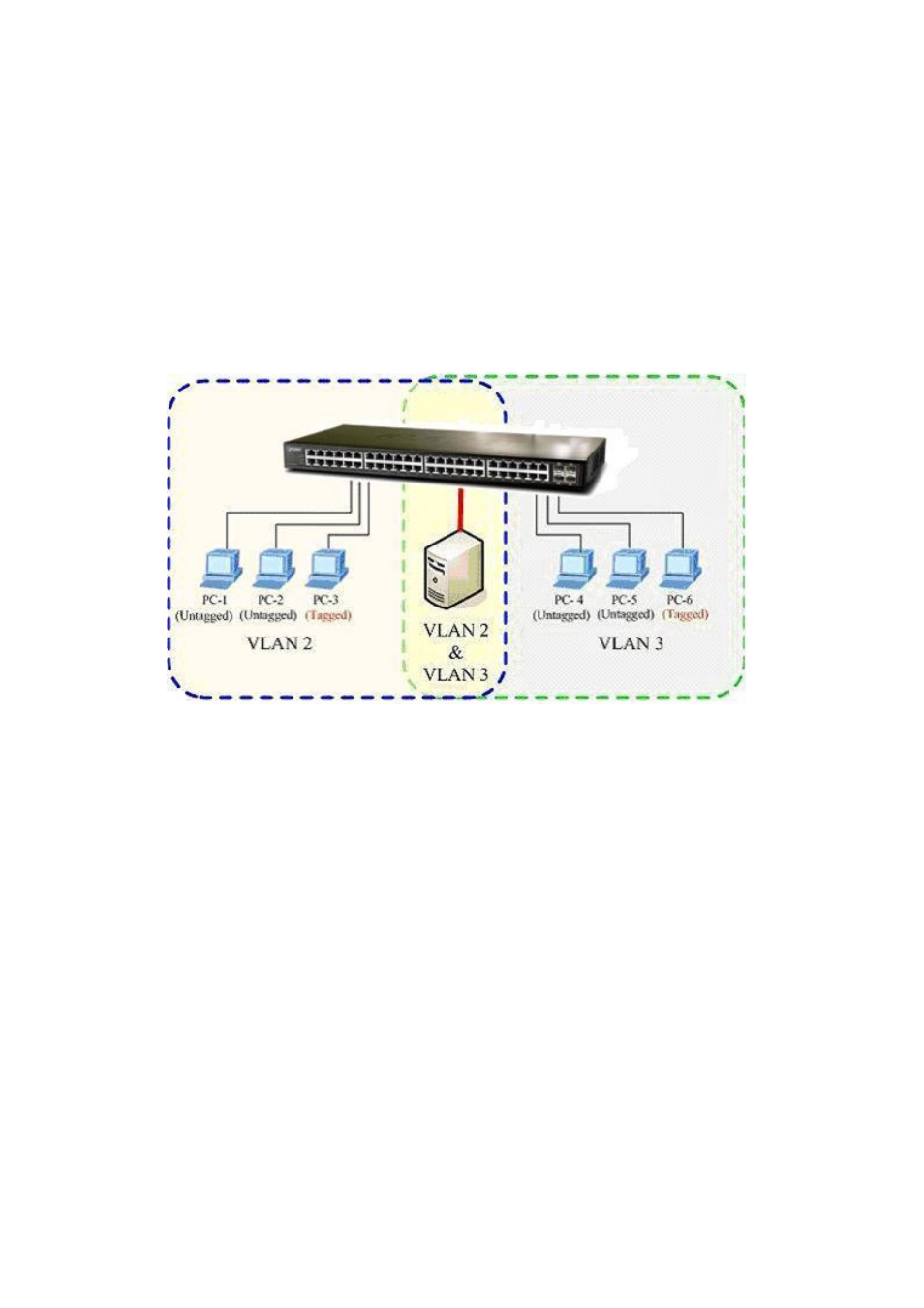

Figure B-1
Overlap VLAN graphic
