User’s Manual of GSW-4804SF
-50-
ACL Type: IP (Default)
This section provide IP ACL configuration, the screen in
Figure 4-43
appears and
Table 4-14
describes the IP ACL
Configuration object of the Switch.

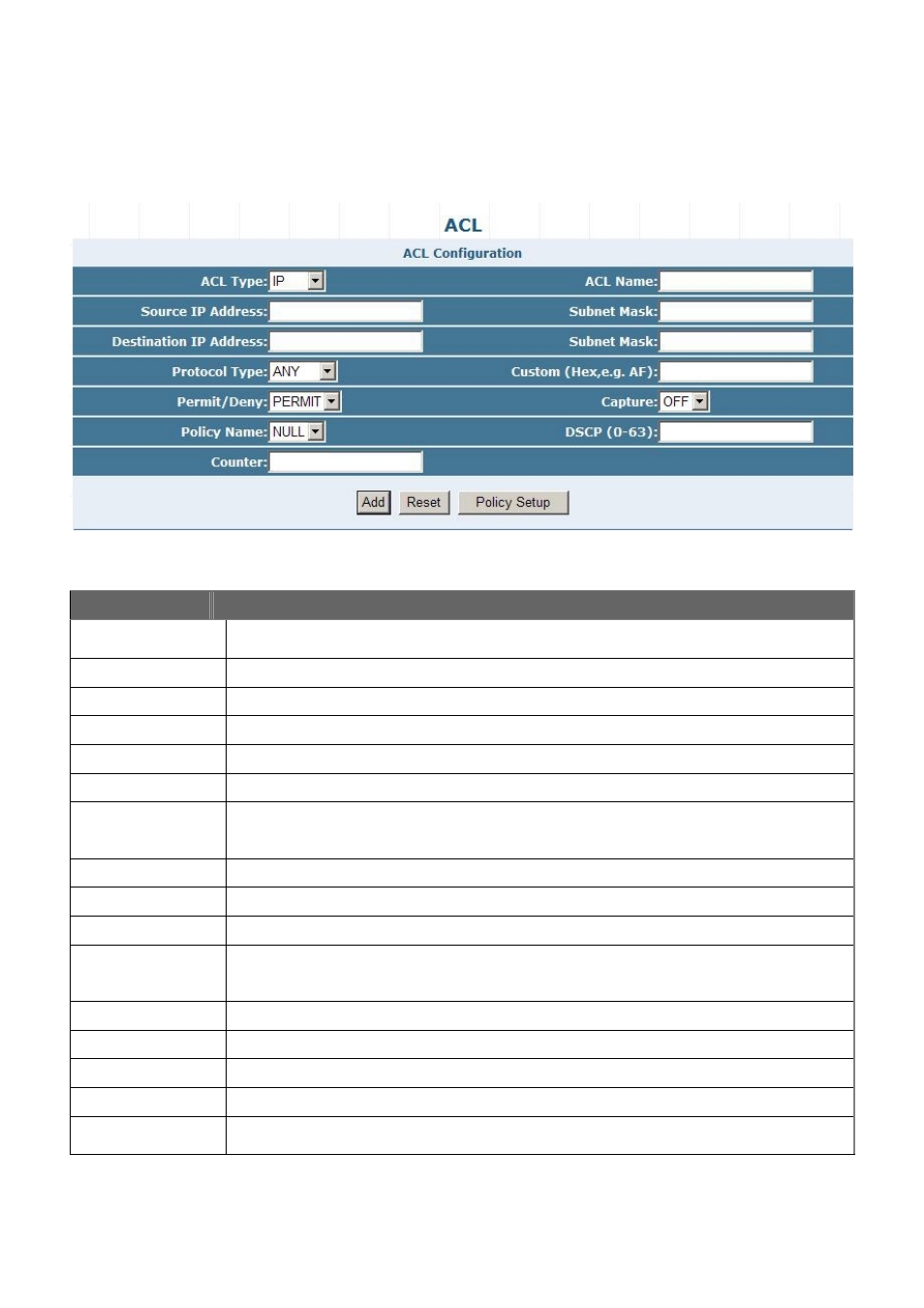

Figure 4-43
IP ACL Configuration Web Scree
Table 4-14
Descriptions of the IP ACL Type Web Screen Objects
O Object
Description
ACL Type:
Provide various ACL type and available options are MAC, IP, TCP, UDP, ICMP. The default ACL Type
is IP
.
ACL Name:
Allow input the ACL Name and maximum length is 10 characters.
Source IP Address:
Allow input the Source IP Address and the format must be “XXX.XXX.XXX.XXX”.
Subnet Mask:
Allow input the Source Subnet Mask address and the format must be “XXX.XXX.XXX.XXX”.
Destination IP Address: Allow input the Destination IP Address and the format must be “XXX.XXX.XXX.XXX”.
Subnet Mask:
Allow input the Destination Subnet Mask address and the format must be “XXX.XXX.XXX.XXX”.
Protocol Type:
Allow choose various Protocol Type and the available options are ANY, OTHER, AHP, EIGRP, ESP,
GRE, ICMP, IGMP, IPINIP, NOS, OSPF, PCP, PIM, TCP, UDP. Defult is “ANY”.
Custom (Hex,e.g. AF): Allow configure when choose OTHER in Prptocol Type.
Permit/Deny:
Allow choosing “PERMIT” or “DENY” option and default is “PERMIT”.
Capture:
Allow enable (ON) or disable (OFF) the capture ability and default is “OFF”.
Policy Name:
Allow use user configured policy by choose specific policy; create new policy by press “Policy
Setup”
button. Default is “NULL”.
DSCP (0-63):
Allow input DCSP value and available range from 0 to 63. Default is “No value”.
Counter:
Allow input Counter information and maximum length is 10 characters. Default is “No Information”.
Add button
Press this button to add configured IP ACL to ACL table.
Reset button
Press this button to clear whole input information that not complete setting procedure.
Policy Setup button
Provide Traffic Shaping Configuration Web screen for add QoS policy. The screen in
Figure
4-42
appears and
Table 4-13
describes the Traffic Shaping Configuration object of the Switch.
