User’s Manual of GSW-4804SF
-61-
Port Mode VLAN Membership Frame Leave
Access Belongs to a single untagged VLAN
Untagged
( Tag=PVID be removed)
Always Untag
Allowed to belongs to multiple untagged
VLANs at the same time
Untagged
(Tag=PVID be removed)
Trunk
Allowed to belongs to multiple Tagged
VLANs at the same time
Tagged
(Tag=PVID or Original VID be remained)
Port VID (PVID)
Set the port VLAN ID that will be assigned to untagged traffic on a given port. This feature is useful for accommodating devices
that you want to participate in the VLAN but that don’t support tagging. The Switch allows each port to set one PVID, the range
is 1~255, default PVID is 1. The PVID must be the same as the VLAN ID that the port was defined as belonging to in the VLAN
group, or the untagged traffic will be dropped.
1. Select 802.1Q VLAN in the VLAN Type field and click on the “Apply” button.

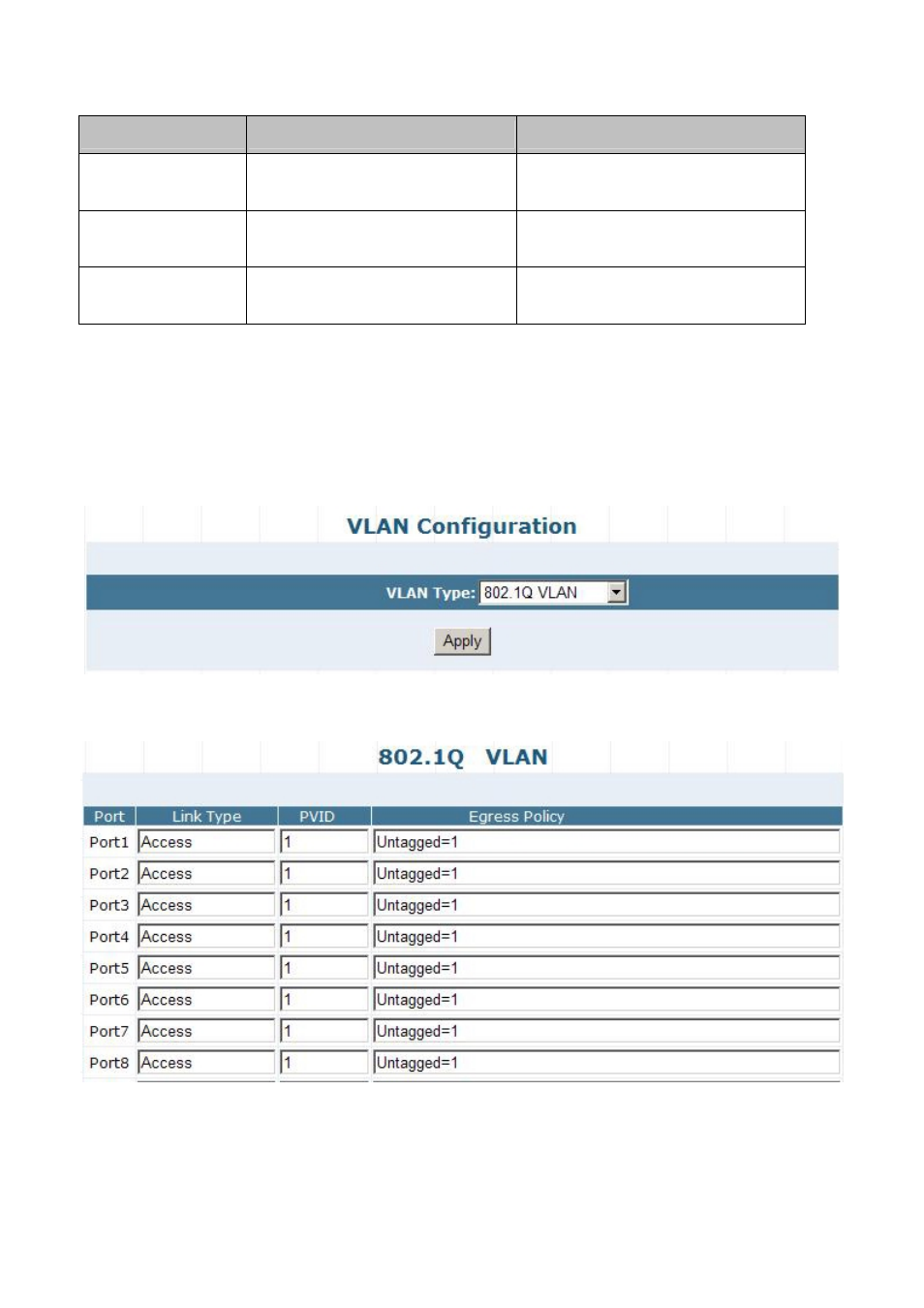

Figure 4-50 802.1Q VLAN Type Web Screen
The main page then changes to the 802.1Q VLAN table which displays the VLAN configuration of each port.
Figure 4-51 802.1Q VLAN Configuration Web Screen
