User’s Manual of GSW-4804SF
-13-
2.2.2 Rack Mounting
To install the Switch in a 19-inch standard rack, please follows the instructions described below.
Step1 : Place the Switch on a hard flat surface, with the front panel positioned towards the front side.
Step2 : Attach the rack-mount bracket to each side of the Switch with supplied screws attached to the package. Figure 2-3
shows how to attach brackets to one side of the Switch.

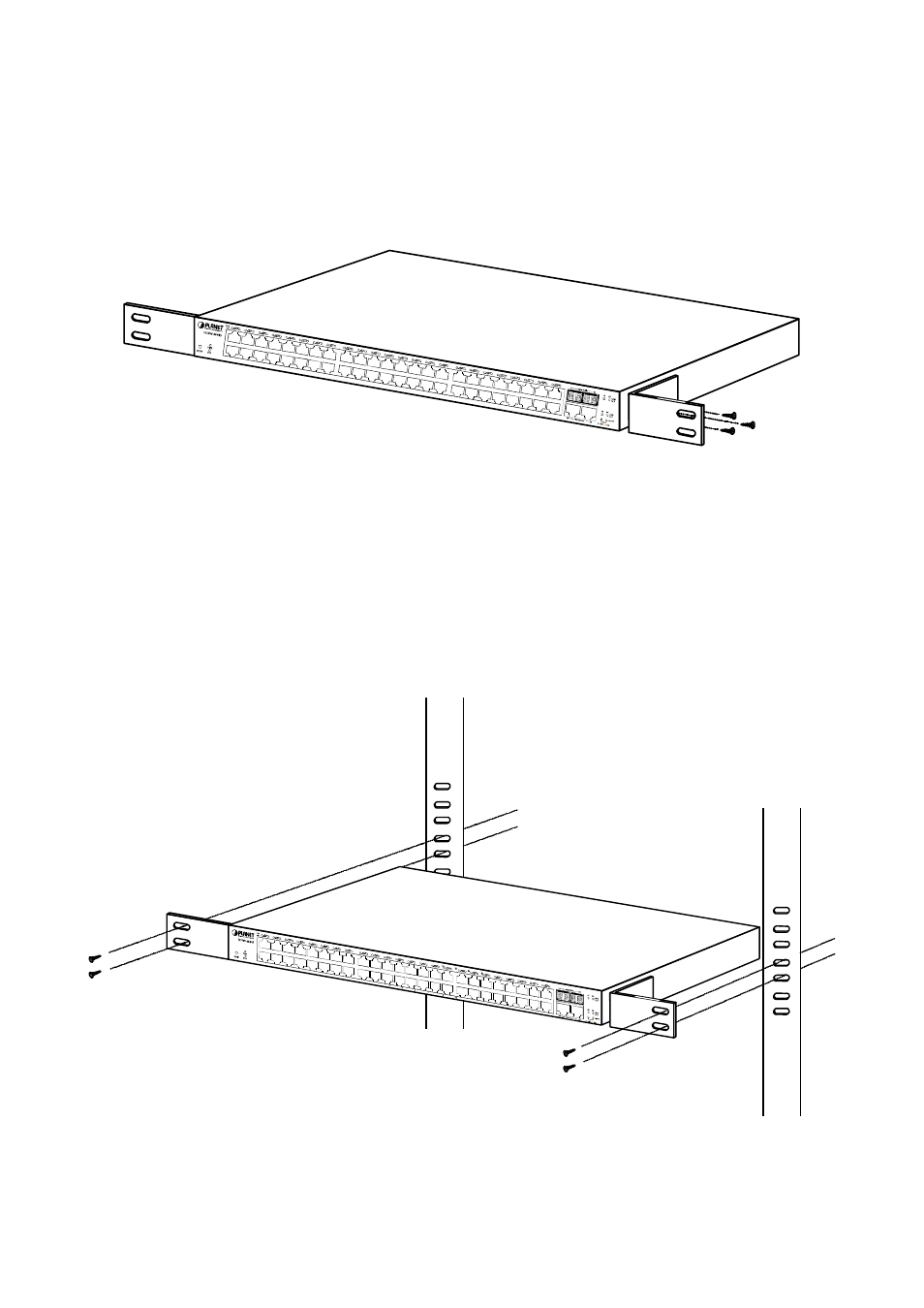

Figure 2-3 Attach brackets to the Switch.
Caution:
You must use the screws supplied with the mounting brackets. Damage caused to the parts by using incorrect screws
would invalidate the warranty.
Step3 : Secure the brackets tightly.
Step4 : Follow the same steps to attach the second bracket to the opposite side.
Step5 : After the brackets are attached to the Switch, use suitable screws to securely attach the brackets to the rack, as shown in
Figure 2-4 .
Figure 2-4 Mounting the Switch in a Rack
Step6 : Proceeds with the steps 4 and steps 5 of session 2.2.1 Desktop Installation to connect the network cabling and supply
power to the Switch.
