Network Device List
This section provide Network Device List configuration, the screen in
Figure 4-87
appears and
Table 4-43
describes the
Network Device List object of the Switch.

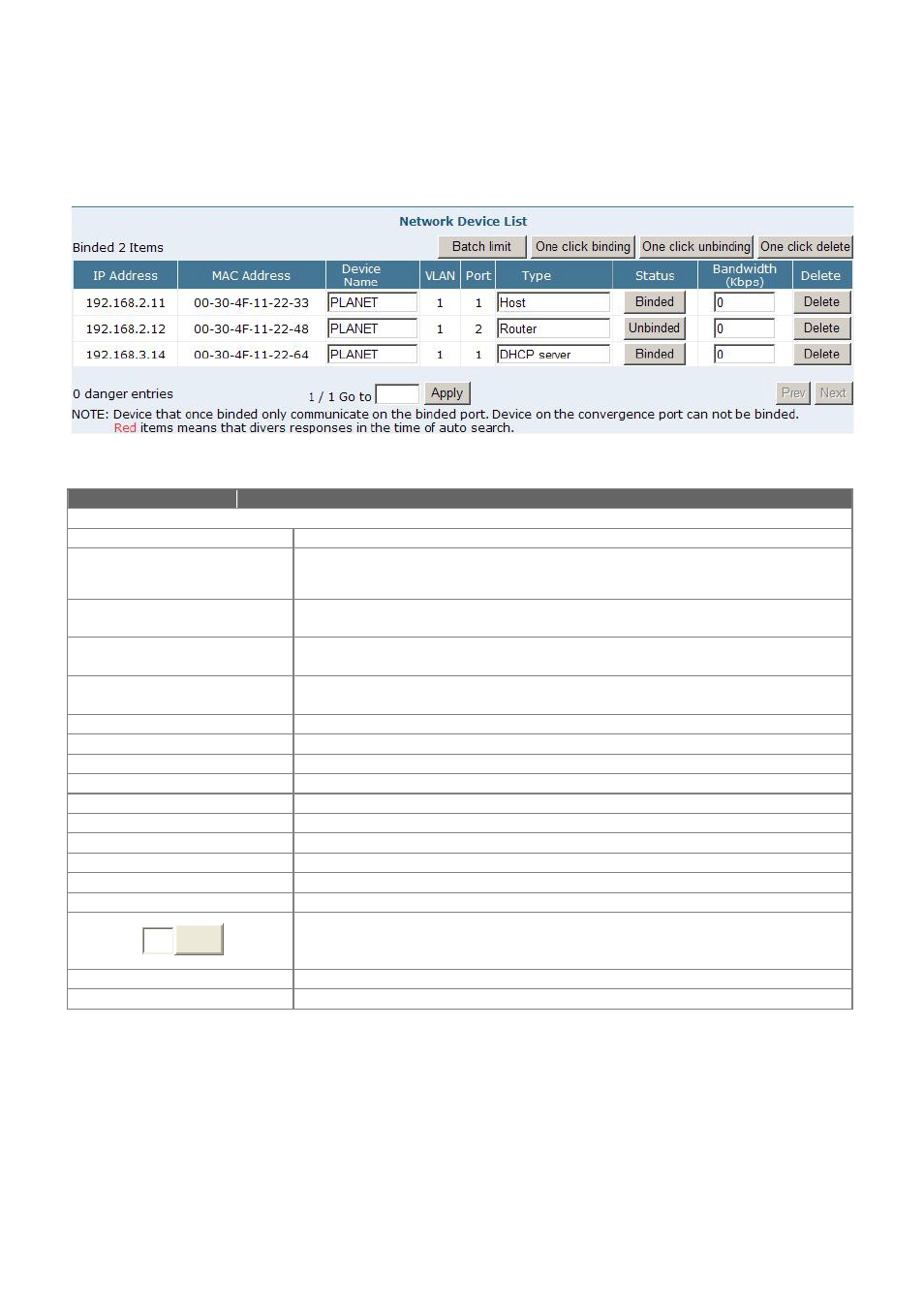

Figure 4-87
Network Device List Web Screen
Table 4-43
Descriptions of the Network Device List Web Screen Objects
O Object
Description
Network Device List
Binded 0 Items
Display the numbers of binded items.
Batch limit
Provide Limited Quantities Flow Setup and the screen in
Figure 4-88
appear and
Table
4-44
describes the Batch limit object of the Switch.
One click binding button
Press this button to bind all devices and the pop screen in
Figure 4-89
appears, click
“OK”
to complete this procedure.
One click unbinding button
Press this button to unbind all devices and the pop screen in
Figure 4-90
appears, click
“OK”
to complete this procedure.
One click delete button
Press this button to delete all bind devices and the pop screen in
Figure 4-91
appears,
click “OK” to complete this procedure.
IP Address
Display the IP Address of one specific bind item.
MAC Address
Display the MAC Address of one specific bind item.
Device Name
Display the Device Name of one specific bind item.
VLAN
Display the VLAN group infromation of one specific bind item.
Port
Display the port that connects to one specific bind item.
Type
Display the type of “Host”, “Router” or “DHCP Server”.
Status
Display the bind / unbind status of one specific bind item.
Bandwidth(kbps)
Display the bandwidth value (kbps) of one specific bind item.
Delete button
Press this button to delete one specific bind item.
0 danger entries
Display the numbers of danger entries.
1 / 1 Go to
Apply
If there are 2 pages or more, please input the number of the page that need to check and
press “Apply” button for go to this page.
Prev
If there are 2 pages or more, please press this button for go to previous page.
Next
If there are 2 pages or more, please press this button for go to next page.
