User’s Manual of GSW-4804SF
-26-
4.2.4 Console

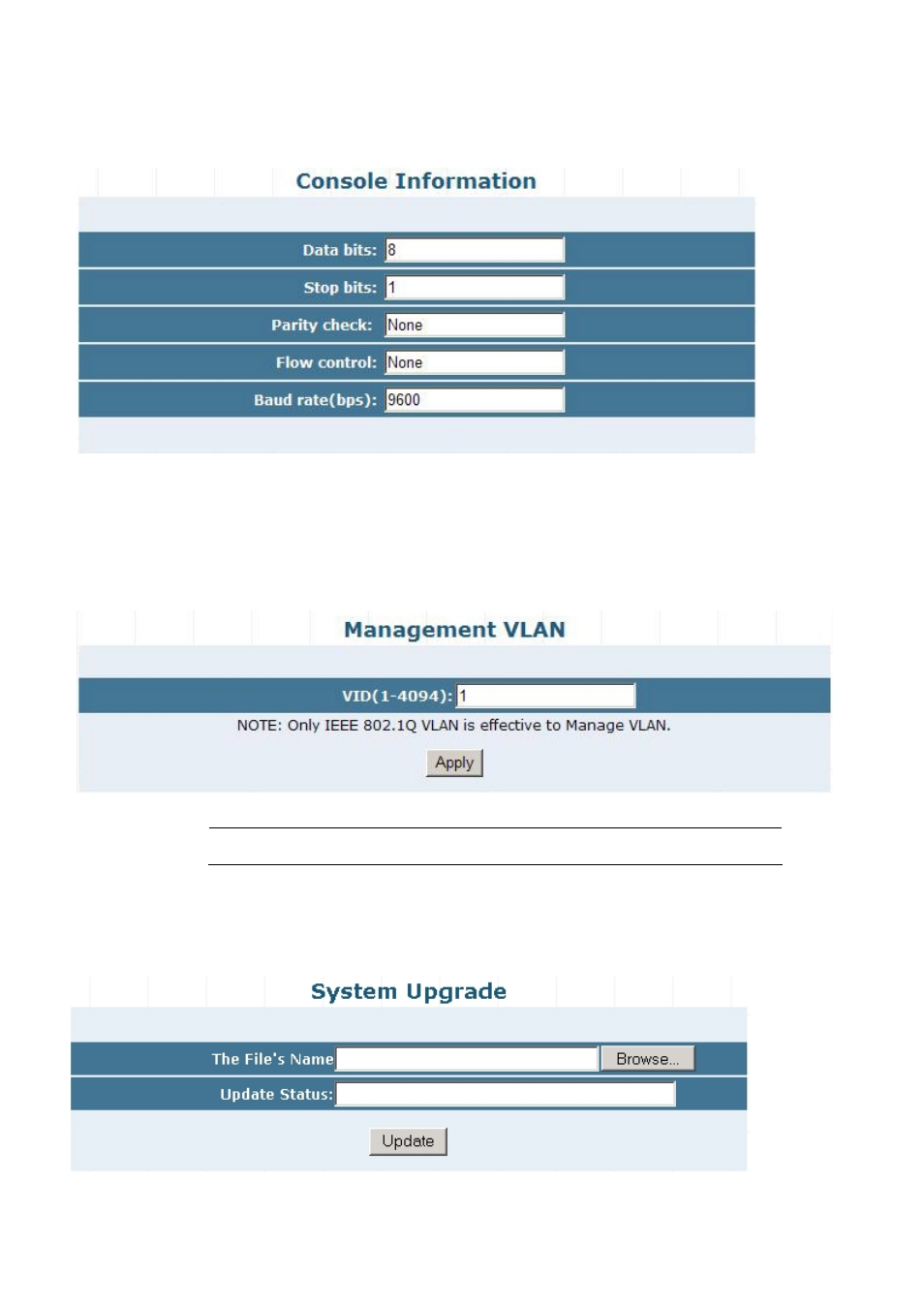

This section displays the console baudrate setting information and the screen in
Figure 4-9
appears.
Figure 4-9
Console Web Screen
4.2.5 Management VLAN
This section provides the Management VLAN configuration, after setup complete. Press “Apply” button to take affect and the
screen in
Figure 4-10
appears.
Figure 4-10
Management VLAN Web Screen
#
Notice:
The available VLAN ID (VID) range is 1 to 4094.
4.2.6 System Upgrade
This section allows precede the firmware upgrade process and the screen in
Figure 4-11
appears.
Figure 4-11
System Upgrade Web Screen
