Page 73
User’s Manual of GSW-4804SF
-73-
4.6.1 802.1p-Queue Mapping
This section provides 802.1p-Queue Mapping Configuration and the screen in
Figure 4-69
appears.
Table 4-26
describes the
802.1p-Queue Mapping object of the Switch.

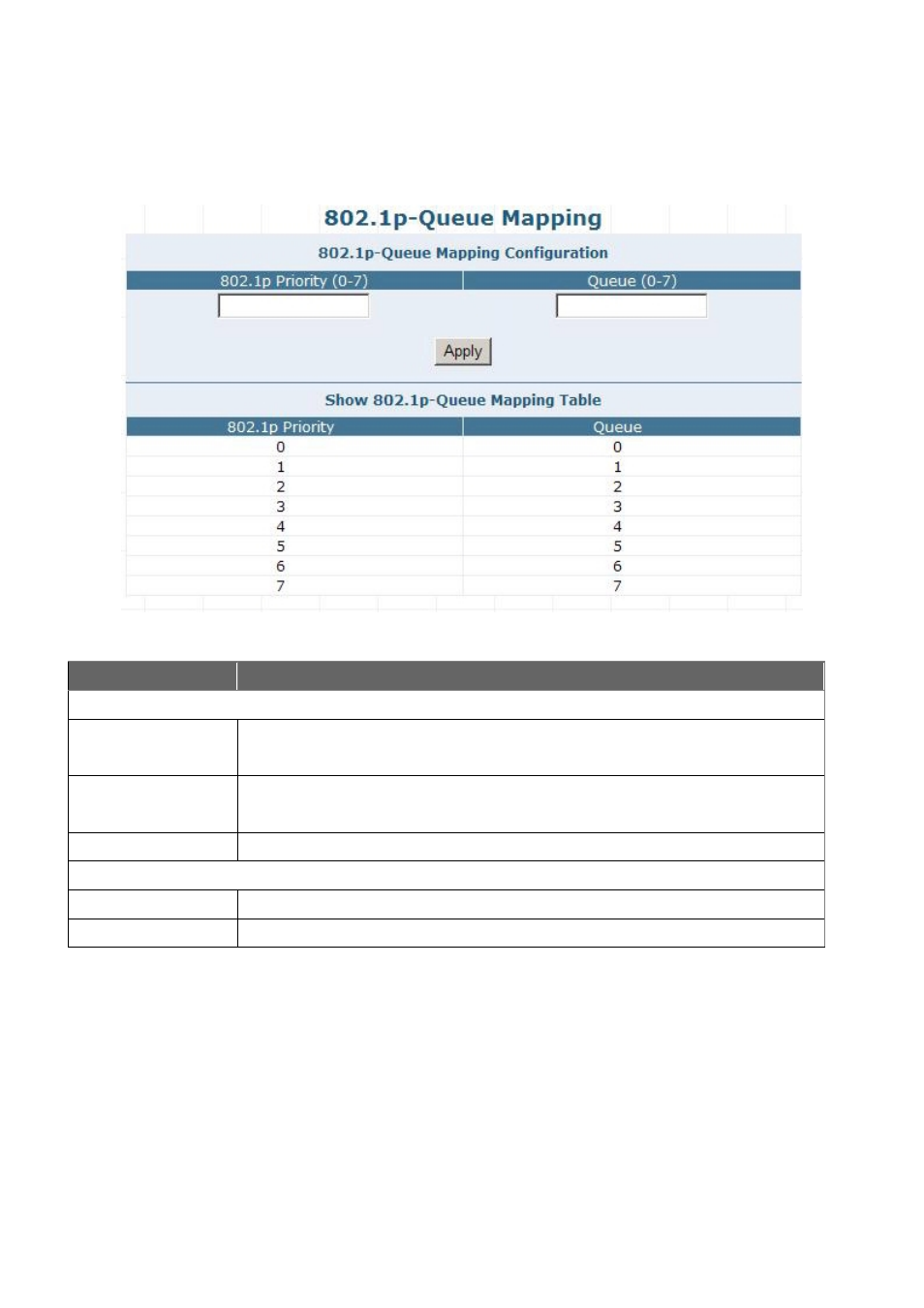

Figure 4-69
802.1p-Queue Mapping Web Screen
Table 4-26 Descriptions of the 802.1p-Queue Mapping Web Screen Objects
Object
Description
802.1p-Queue Mapping Configuration
802.1p Priority (0-7)
Allow define the 802.1p Priority value from 0-7 with corresponding
mapping number in the
Queue (0-7)
field.
Queue (0-7)
Allow define the Queuevalue from 0-7 with corresponding
mapping number in the 802.1p
Priprity (0-7)
field.
Apply button
Press this button to take affect.
Show 802.1p-Queue Mapping Table
802.1p Priority
Display the 802.1p Priority mapping value (0-7).
Queue
Display the Queue Value (0-7).
