User’s Manual of GSW-4804SF
-10
2. Move the mouse course to the port, which had be assigned to be connect to the server/AP/printer, then click on the port.
For this case, we set the Port-1 to be the multiple untagged port. The screen in
Figure B-3
appears.
3. At the Link Type, select “Always Untag” at the draw bar. Click “Apply” button to take affect.

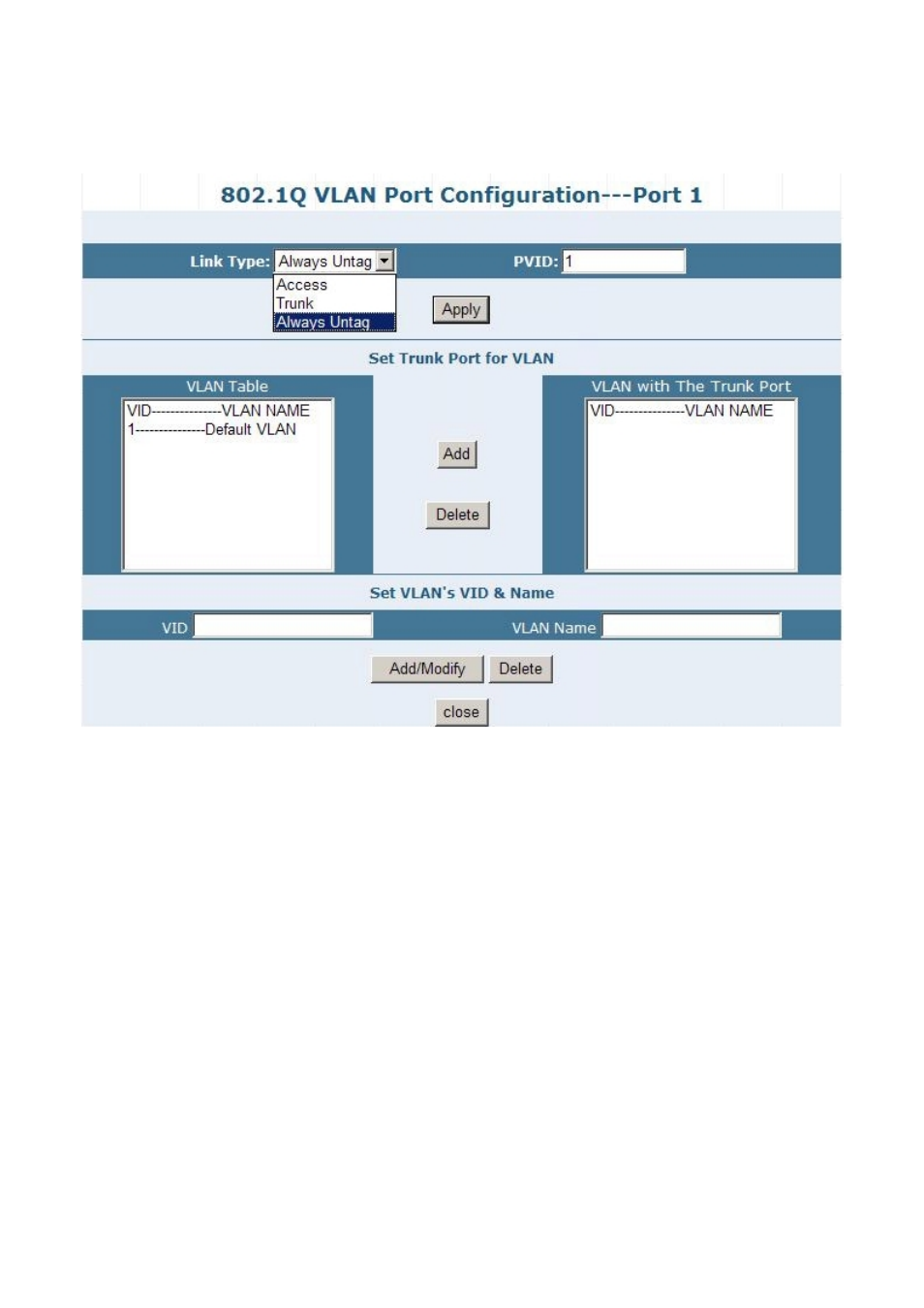

Figure B-3
802.1Q VLAN Port Configuration – Port1 screen
