4.3.5 Link Test
This section provides per port Link Status and the screen in
Figure 4-36
appears.
Table 4-8
describes the Link Status object of
the Switch.

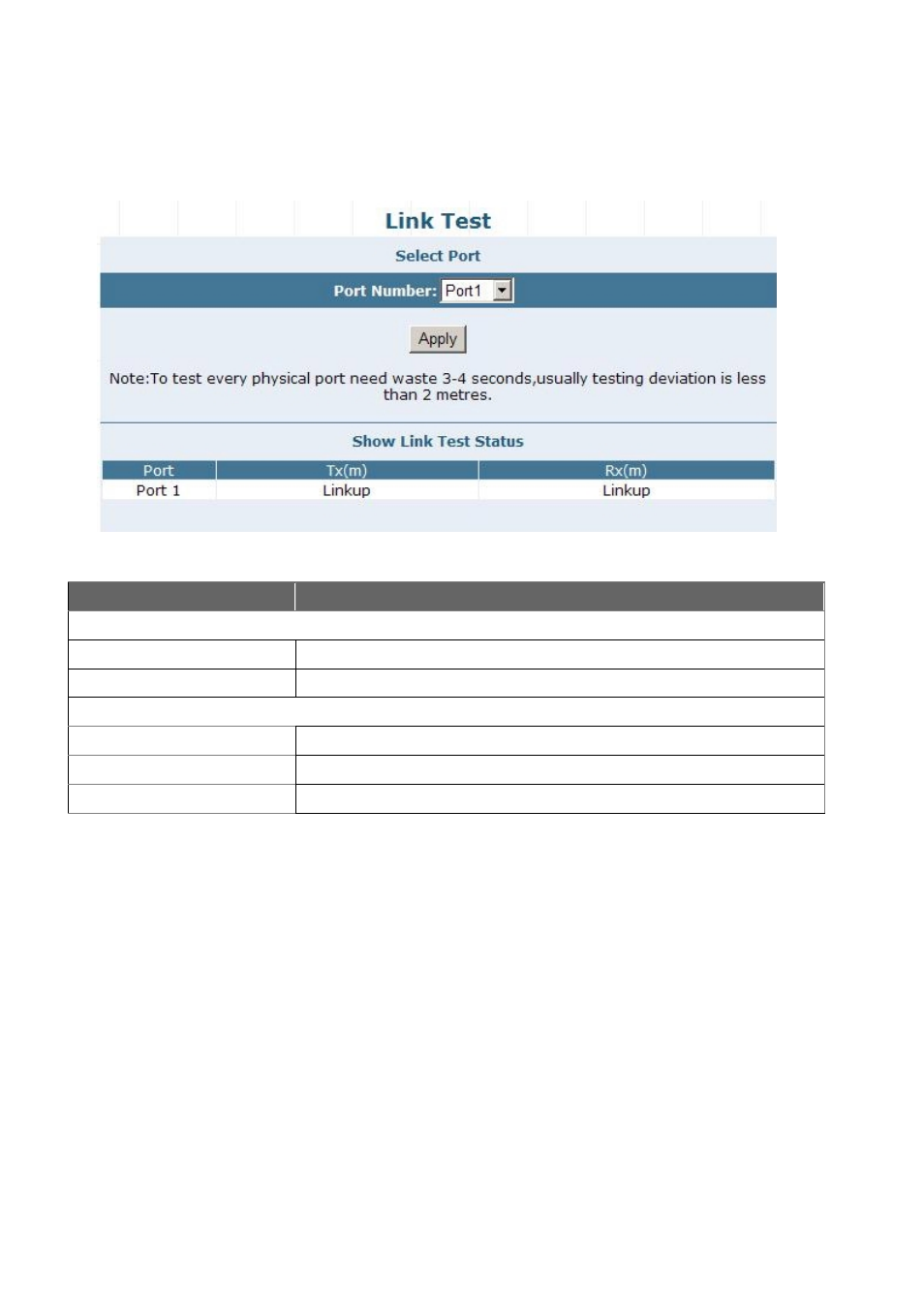

Figure 4-36
Link Test Web Screen
Table 4-8 Descriptions of the Link Test Web Screen Objects
O Object
Description
Select Port
Port Number
Allow choose one port for Link Test.
Apply button
Press this button to take affect.
Show Link Test Status
Port
Indicate the port 1 to port 48 of the Switch.
Tx(m)
Display one specific port Tx Link Status.
Rx(m)
Display one specific port Rx Link Status.
