PLANET GSW-4804SF - Manual (Page 108)

User’s Manual of GSW-4804SF
-10
7. Assign the VLAN 2 and VLAN 3 group member. At this case, Port 2 had been assigned to as VLAN 2 group member and
Port 3 be assigned to as VLAN 3 group member.
8. Repeat step 2 to step 7, expect that :
• Configure the Port 2 with PVID=2, Port 3 with PVID=3.
• The link type of both Port-2 and Port 3 are “Always Untag”.
• And both Port 2 and Port 3 are VLAN 1 members.
9. After properly configure the 802.1Q VLAN per port setting, it should be as the screen in Figure B-6 appears.

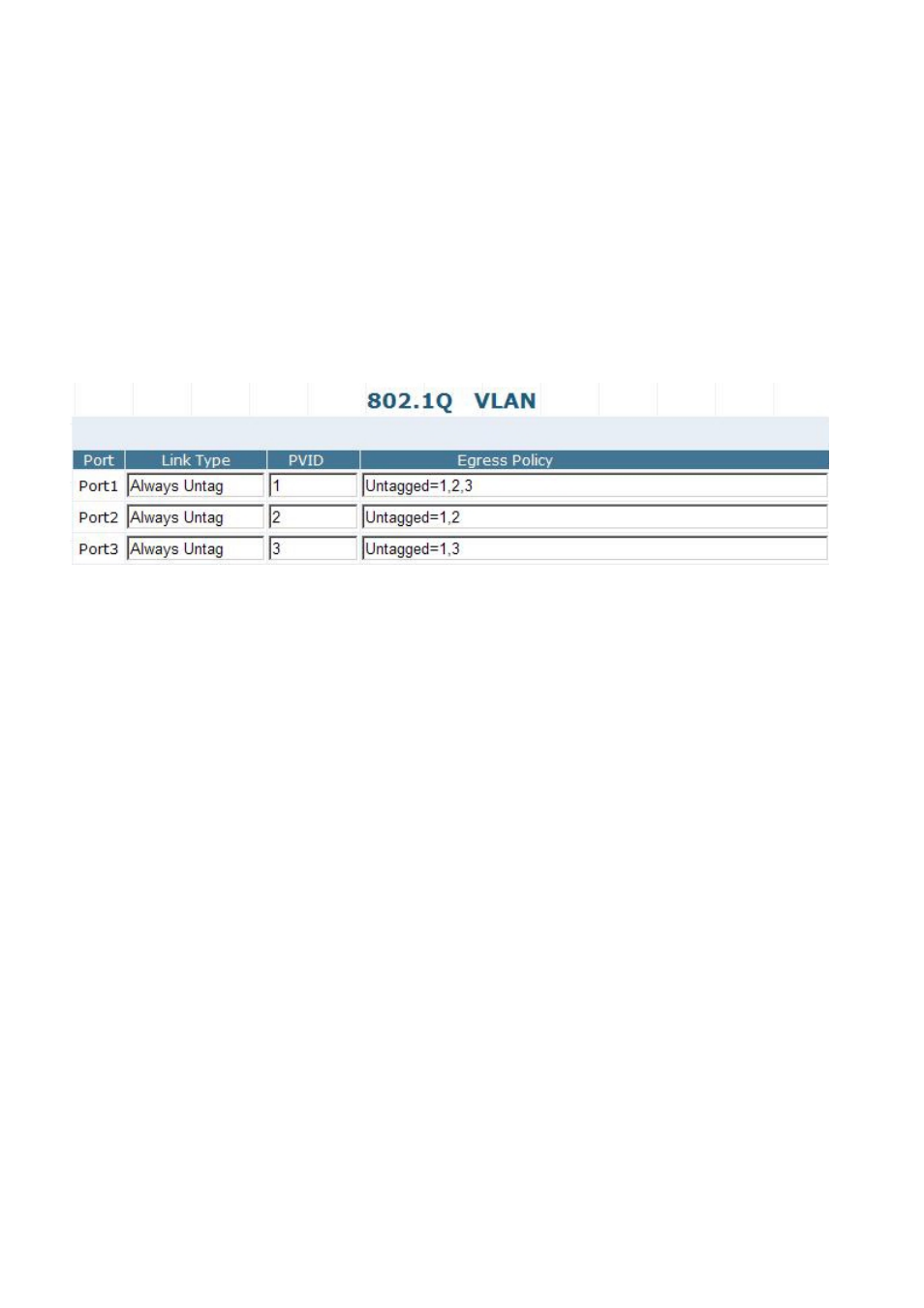

Figure B-6 Port 1, Port 2 and Port 3 VLAN configuration
Although Port 2 and Port 3 are VLAN 1 members, with different PVID setting, the two ports are not able to access each other.
But they all can access with the server/AP/Printer which connect to the Port 1 now.
