User’s Manual of GSW-4804SF
-48-
ACL Type: MAC
This section provide MAC ACL configuration, the screen in Figure 4-41 appears and Table 4-12 describes the MAC ACL
Configuration object of the Switch.

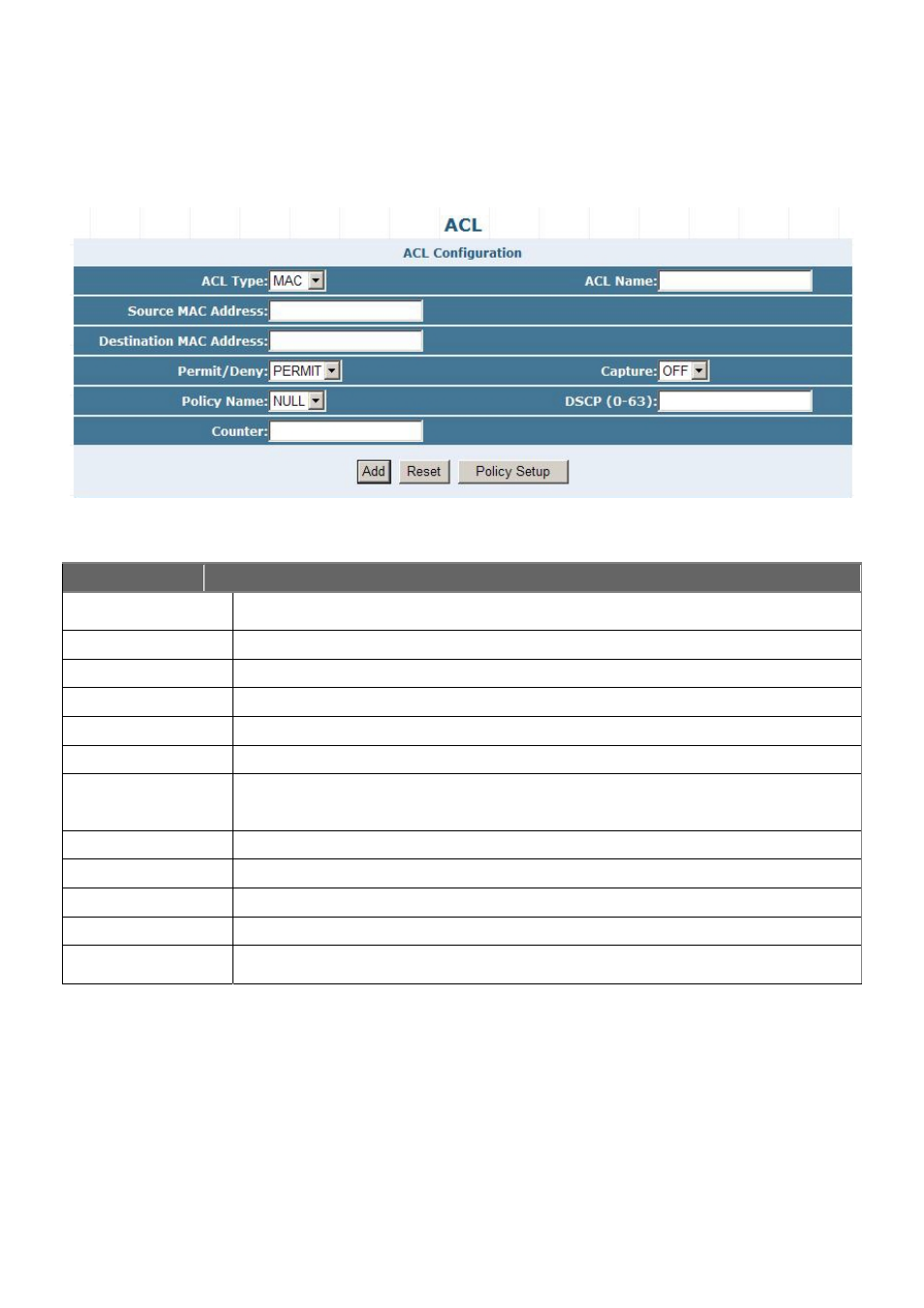

Figure 4-41 MAC ACL Configuration Web Screen
Table 4-12 Descriptions of the MAC ACL Type Web Screen Objects
O Object Description
ACL Type:
Provide various ACL type and available options are MAC, IP, TCP, UDP, ICMP. The default ACL Type
is IP
.
ACL Name: Allow input the ACL Name and maximum length is 10 characters.
Source MAC Address: Allow input the Source MAC Address and the format must be “XX-XX-XX-XX-XX-XX”.
Destination MAC Address: Allow input the Destination MAC Address and the format must be “XX-XX-XX-XX-XX-XX”.
Permit/Deny: Allow choosing “PERMIT” or “DENY” option and default is “PERMIT”.
Capture: Allow enable (ON) or disable (OFF) the capture ability and default is “OFF”.
Policy Name: Allow use user configured policy by choose specific policy; create new policy by press “Policy
Setup” button. Default is “NULL”.
DSCP (0-63): Allow input DCSP value and available range from 0 to 63. Default is “No value”.
Counter: Allow input Counter information and maximum length is 10 characters. Default is “No Information”.
Add button Press this button to add configured MAC ACL to ACL table.
Reset button Press this button to clear whole input information that not complete setting procedure.
Policy Setup button
Provide Traffic Shaping Configuration Web screen for add QoS policy. The screen in Figure
4-42 appears and Table 4-13 describes the Traffic Shaping Configuration object of the Switch.
