User’s Manual of GSW-4804SF
-65-

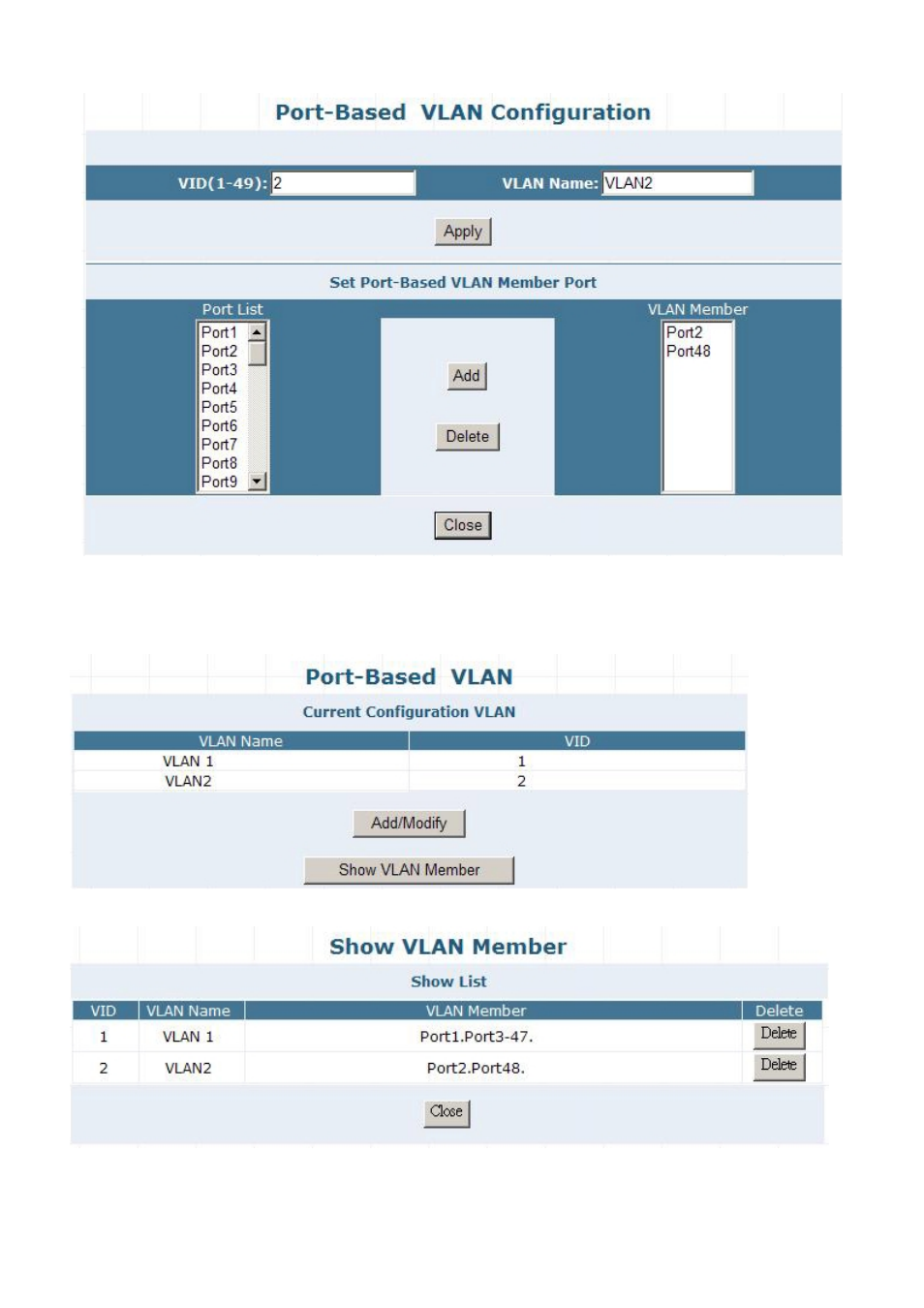

Figure 4-61
Port-Based VLAN Configuration Web Screen
6.
Click on the “Close” button and back to the Port-based VLAN main page.
The “Show VLAN Member” button is to list the valid VLANs. You can also remove the added VALN by click on this button.
Figure 4-62
Show VLAN Members Web Screen
Figure 4-63
Show VLAN Members Web Screen
