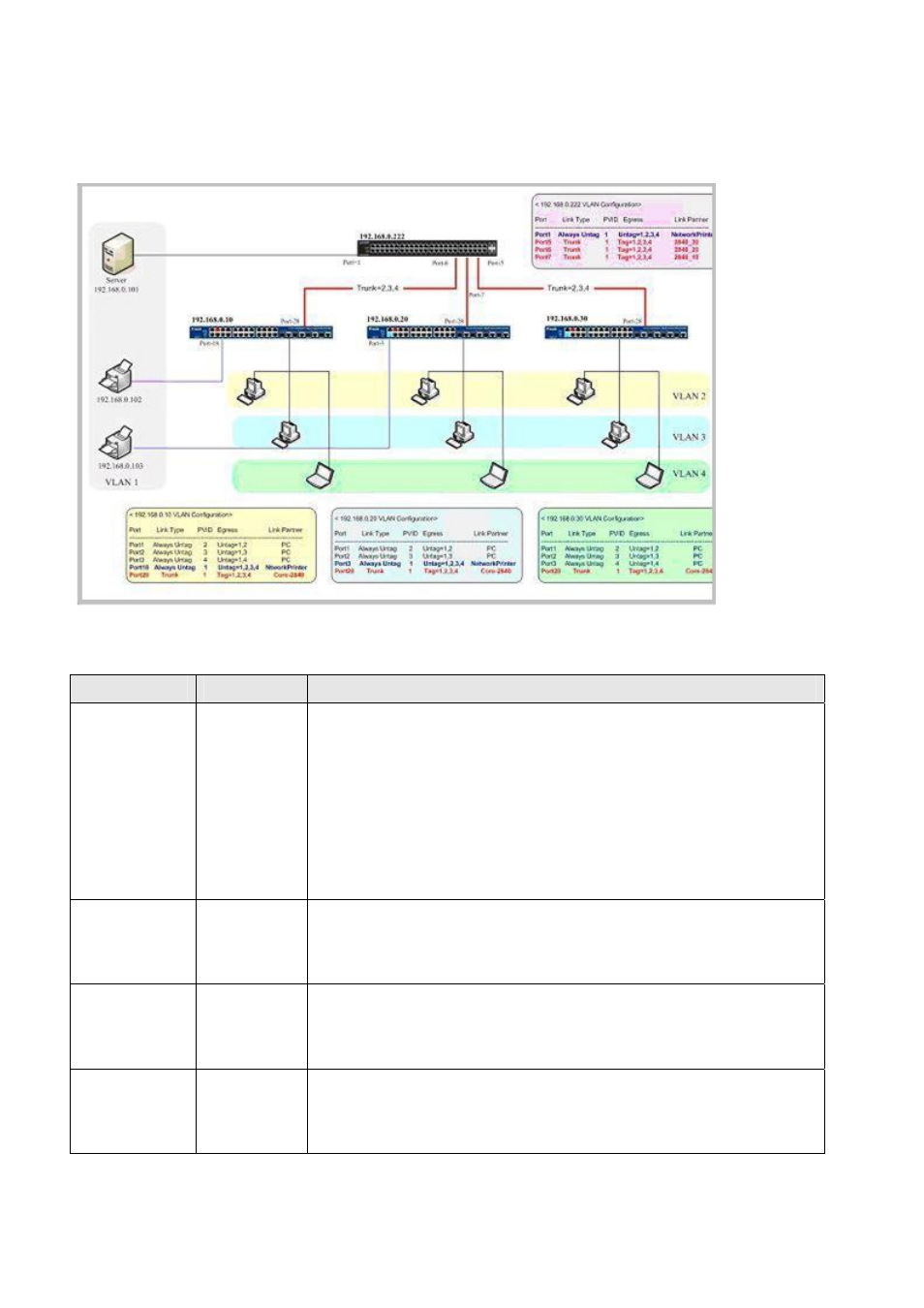

802.1Q VLAN Multi-Untagged VLAN setting sample 3
VLAN Group Membership
VLAN ID
VLAN Define
Major Member
VLAN 1
Public VLAN
GSW-4804SF_220
WGSW-2840_10
WGSW-2840_20
WGSW-2840_30
Server
Network_Printer_1
Network_Printer_2
VLAN 2
Client connect to Ports those be assigned to VLAN 2 ,at [192.168.0.10] switch
Client connect to Ports those be assigned to VLAN 2 ,at [192.168.0.20] switch
Client connect to Ports those be assigned to VLAN 2 ,at [192.168.0.30] switch
VLAN 3
Client connect to Ports those be assigned to VLAN 3 ,at [192.168.0.10] switch
Client connect to Ports those be assigned to VLAN 3 ,at [192.168.0.20] switch
Client connect to Ports those be assigned to VLAN 3 ,at [192.168.0.30] switch
VLAN 4
Client connect to Ports those be assigned to VLAN 4 ,at [192.168.0.10] switch
Client connect to Ports those be assigned to VLAN 4 ,at [192.168.0.20] switch
Client connect to Ports those be assigned to VLAN 4 ,at [192.168.0.30] switch
