PLANET GSW-4804SF - Manual (Page 66)

User’s Manual of GSW-4804SF
-66-
4.5.5 MAC Address Binding
This section provides MAC Address Binding Configuration and the screen in Figure 4-64 appears. Table 4-21 describes the
MAC Address Binding object of the Switch.
This function is based upon for the Switch security. When you add one MAC Address is bind with one port. It remains in the
switch's address table, regardless of whether the device is physically connected to the switch. This saves the switch from
having to re-learn a device's MAC address after it has been disconnected or powered-off from the network, and then
reconnected at some time later. If the Network station is connected with one port want to control the switch, the station’s MAC
Address must be the same as one MAC Address
To bind the MAC Address, click on the Security / MAC Address Binding menu button, the main web page then shows the
MAC Address Bind function table.
1. Fill the MAC Address field with MAC address in the format “XX-XX-XX-XX-XX-XX “ and choose the port to bind the MAC
Address in the Port field.
2. Click on the “Add” button.
3. To remove the MAC Address binded by the port. Simply click on the “Delete” button of the MAC Address in the Show MAC
Address Table.

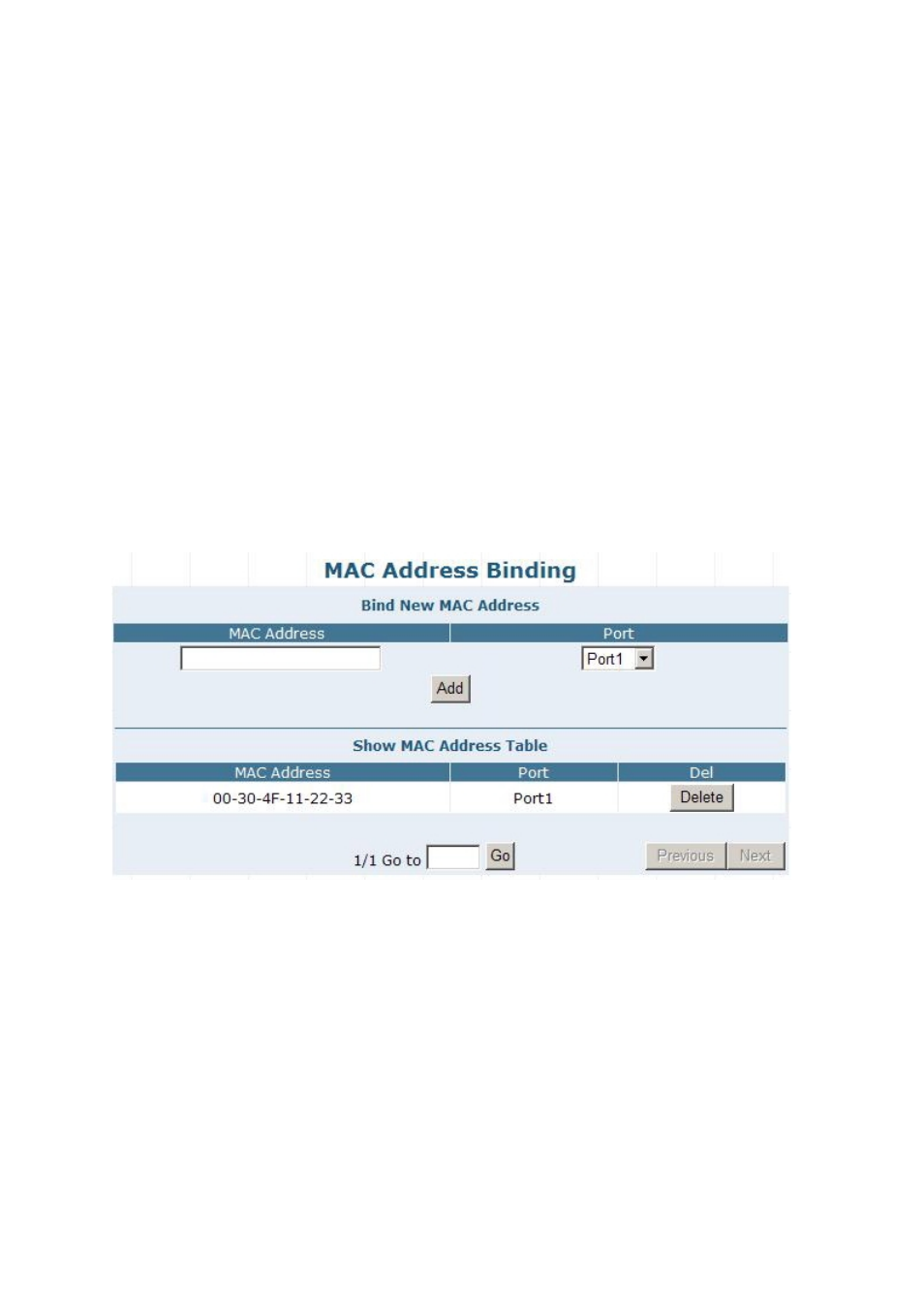

Figure 4-64 MAC Address Binding Web Screen
