User’s Manual of GSW-4804SF
-10
The next will be a configure sample- how to setup the GSW-4804SF 802.1Q VLAN with a multiple untagged port.
At the menu bar ,click “Security” > “ VLAN”
1. After the VLAN configuration page appear, select “802.1Q VALN“ and clink “OK” to apply. Then the following screen in
Figure B-2
appears.

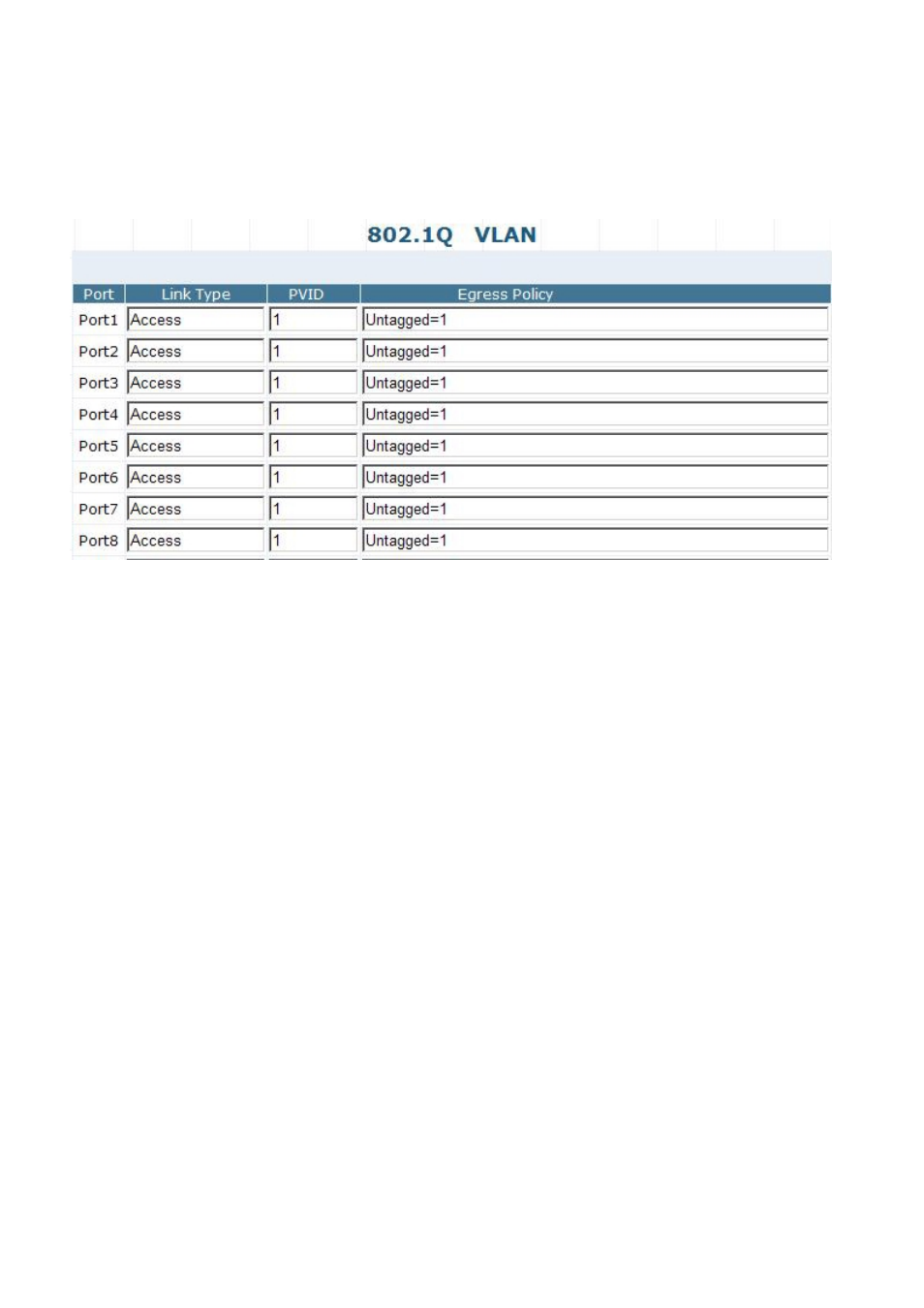

Figure B-2
802.1Q VLAN page screen
