User’s Manual of GSW-4804SF
-17-
3.2 Administrator Console Access

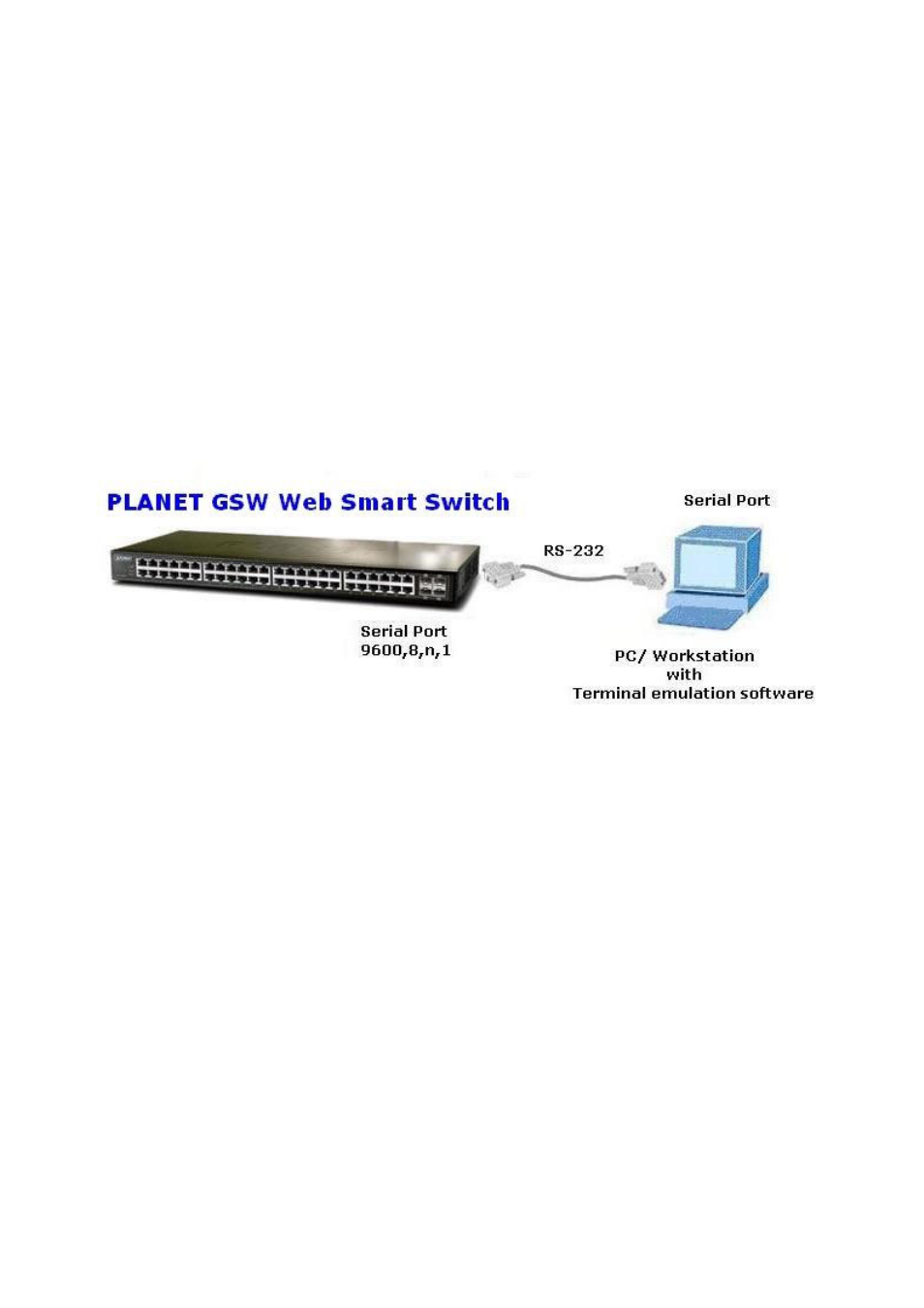

The administration console is a local connection method between the administrator PC and the Switch. Using this method, you
can reset the Switch to factory default mode from a personal computer, Apple Macintosh, or workstation connected to the
Switch's console (Serial) port. Direct access to the administration console is achieved by directly connecting a terminal or a PC
equipped with a terminal-emulation program (such as HyperTerminal) to the Switch console (Serial) port.
When using this management method, a null-modem cable is required to connect the Switch to the PC. After making this
connection, configure the terminal-emulation program to use the following parameters:
The default parameters are:
ƒ 9600 bps
ƒ 8 Data bits
ƒ No Parity
ƒ 1 Stop bits
ƒ No Flow Control
After log on the Switch. This Console interface is often preferred for remain connected and monitor the system during save
current system configuration or system reboots.
