User’s Manual of GSW-4804SF
-10
4. Click the “Add/Modify” button to create new VLAN groups with VID=2 and VID=3.
5. At
the
Port 1-
VLAN Port configuration page, select VLAN 2 and VLAN 3 to add to the Port 1. The right information window
at this table shows the status. The screen in
Figure B-4
appears.

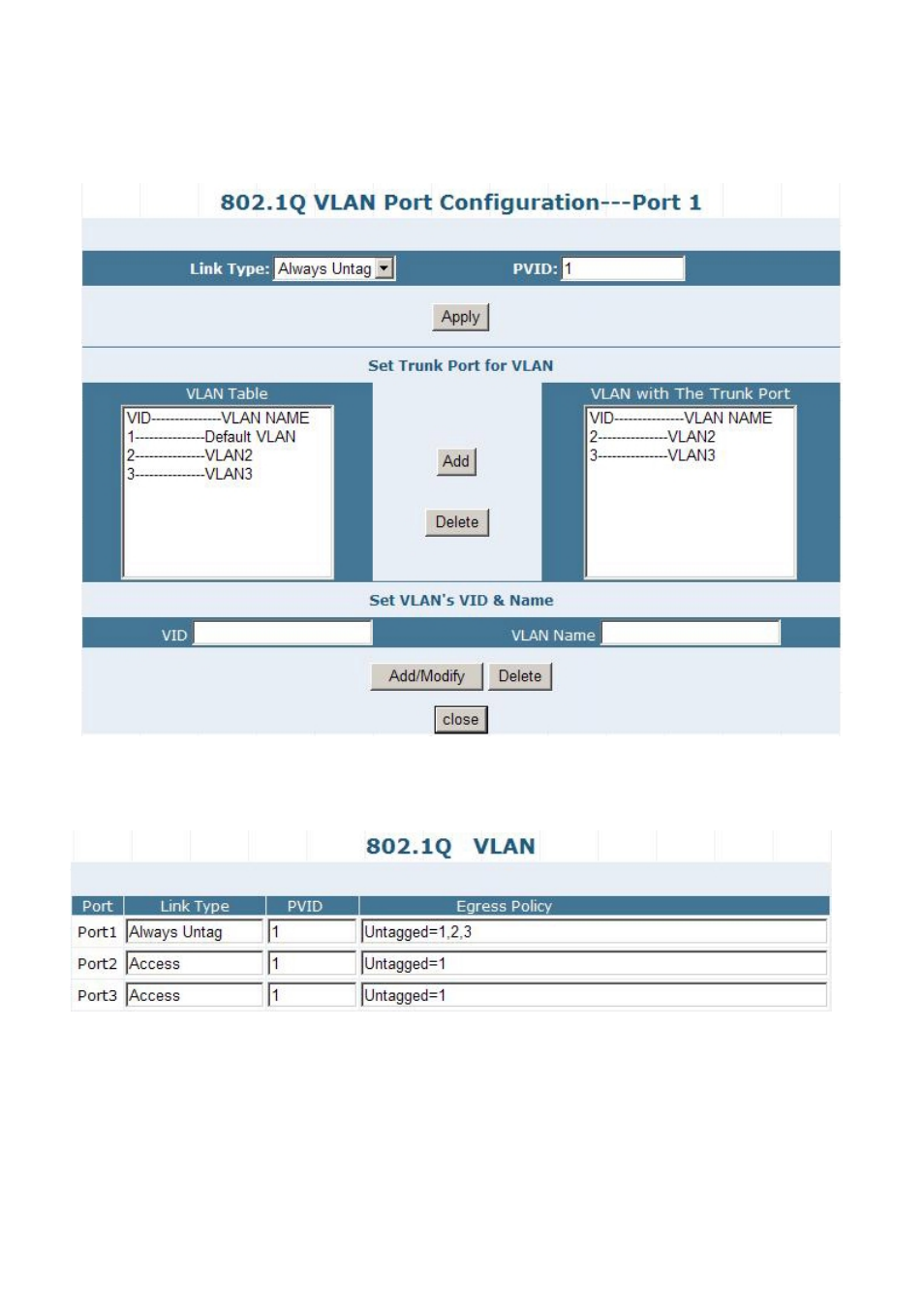

Figure B-4
Assign Port-1 to be VLAN 2 and VLAN 3 member.
6. After the down the Port 1 VLAN configuration, press “close” to back to the 802.1Q VLAN main screen. And check if the
setting be applied to Port 1 at the “Egress Policy” column. The screen in
Figure B-5
appears.
Figure B-5
Port 1 VLA N status
