User’s Manual of GSW-4804SF
-47-
4.5.1 ACL
This section provides ACL configuration and View ACL Table. An ACL consists of a set of rules which are matched
sequentially against a packet. When a packet meets the match criteria of a rule, the specified rule action (Permit / Deny) is
taken and the additional rules are not checked for a match. The screen in Figure 4-40 appears

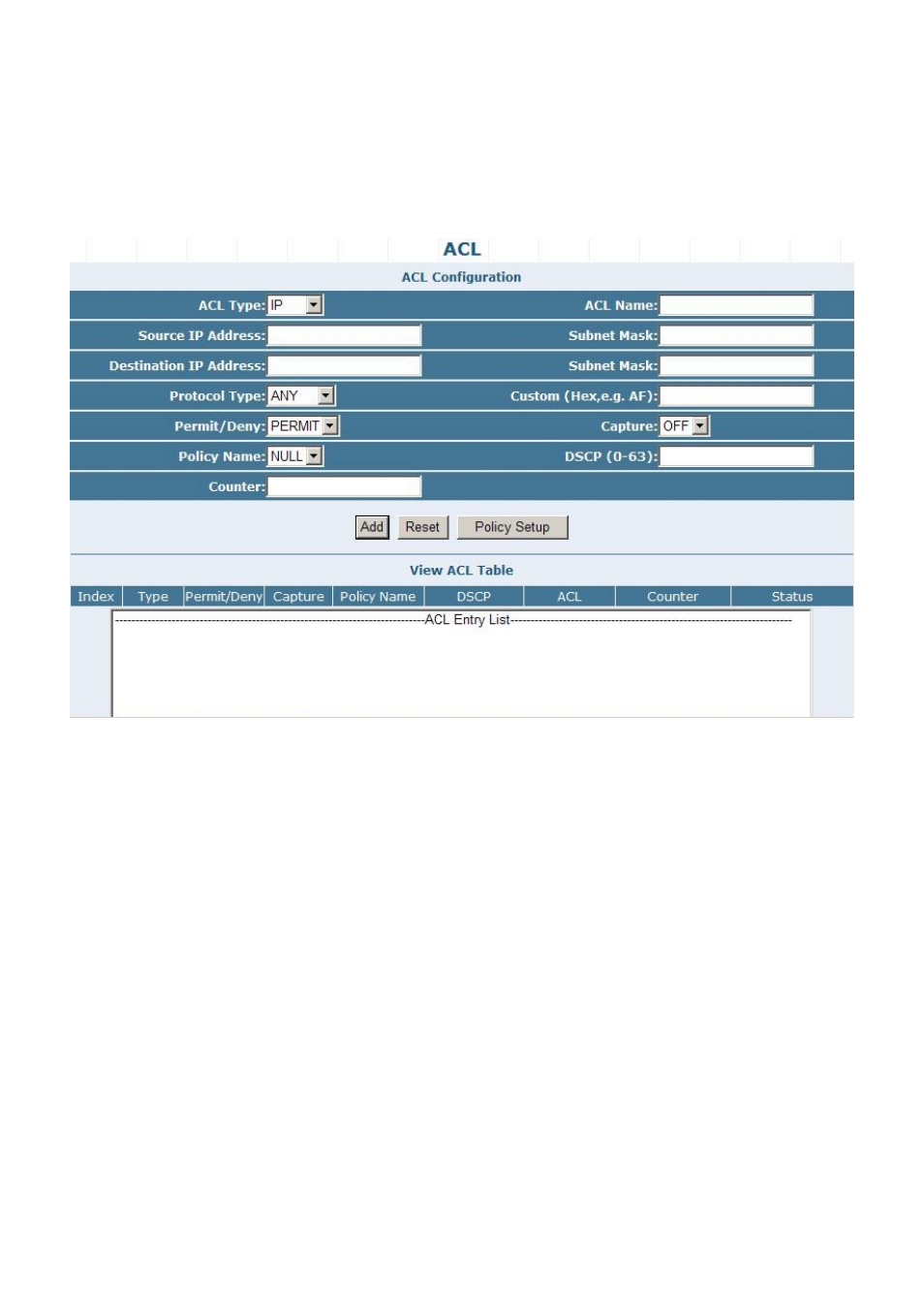

Figure 4-40 ACL Configuration Web Screen
ACL Configuration
The ACL configuration provide five various ACL type for security access control list and the available items are shown as below:
MAC.
IP.
TCP.
UDP.
ICMP.
Please refer to following sections for detail explanation.
