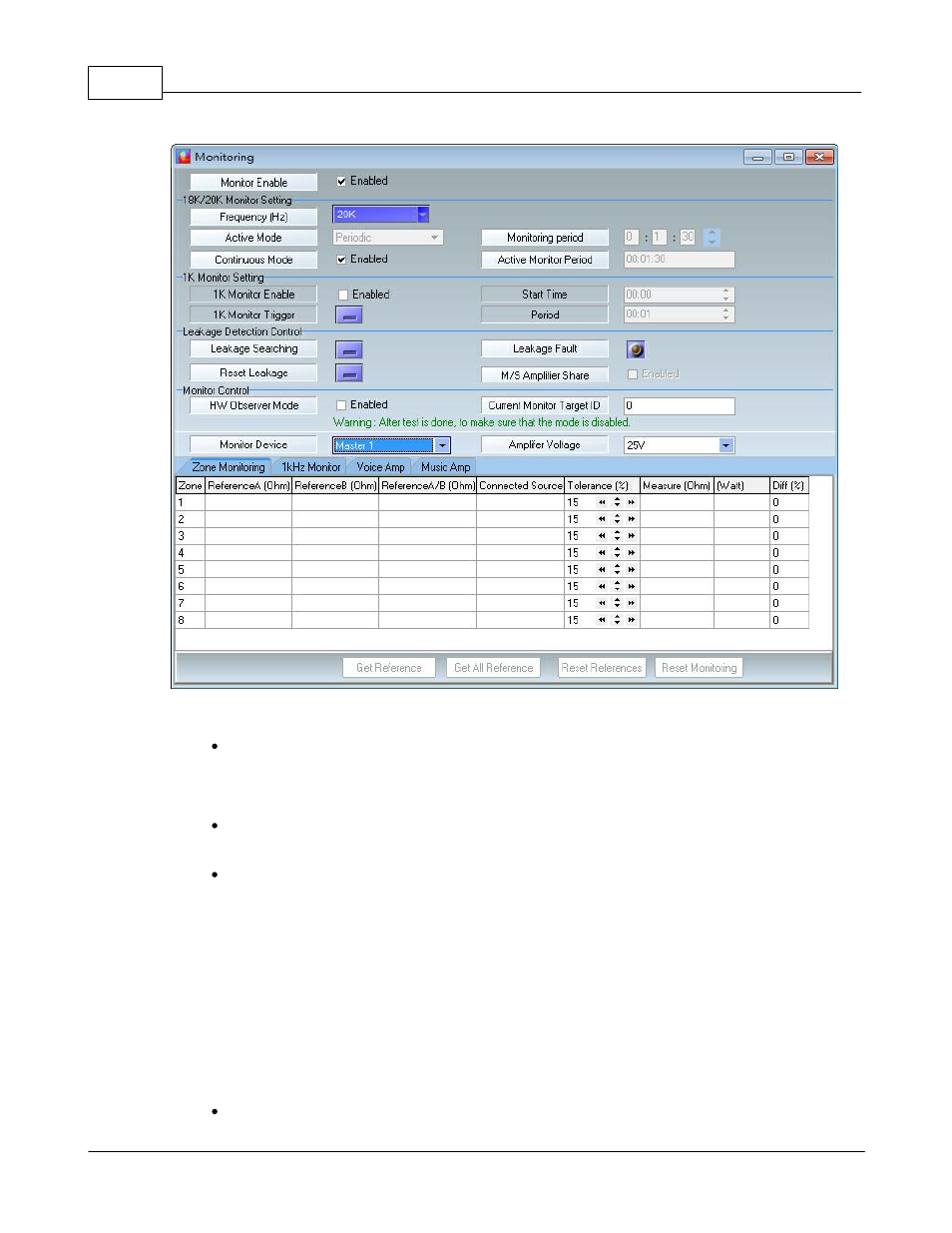

Figure 24: Monitoring Window
In the "Monitoring" window(Figure 24), you can see the machine display. It informs which
DIVA you are currently monitoring.
Note: all DIVA in your Network are real time surveillance monitored.
The "Monitoring" window is divided into four distinct parts: "Zone Monitoring", "1kHz Monitor",
"Voice Amp", "Music Amp" (corresponding to the four tabs) .
Zone Monitoring
o
As mentioned before, one speaker zone is separated in two, A and B. On for security
(Voice) and one for Music (Music). The Voice channel has the priority regarding Music
channel in case of power supply defect. In case of default on the Voice Channel, the voice
source is automatically routed on the Music channel.
o
Click on the "Get All Reference" button. It will start storing the actual measurement for
each zone.
o
In the "Zone Monitoring" page, you can specify the tolerance of the faults detection. It
means that as long as the real time measurement is within the reference +/- the
tolerance, the monitored speaker lines are considered as non faulty.
1kHz Monitor
