Chapter 3: Featuring Configuration

– Web UI

Featuring Configuration

– Web UI

NGSME16T2H User Manual | 185

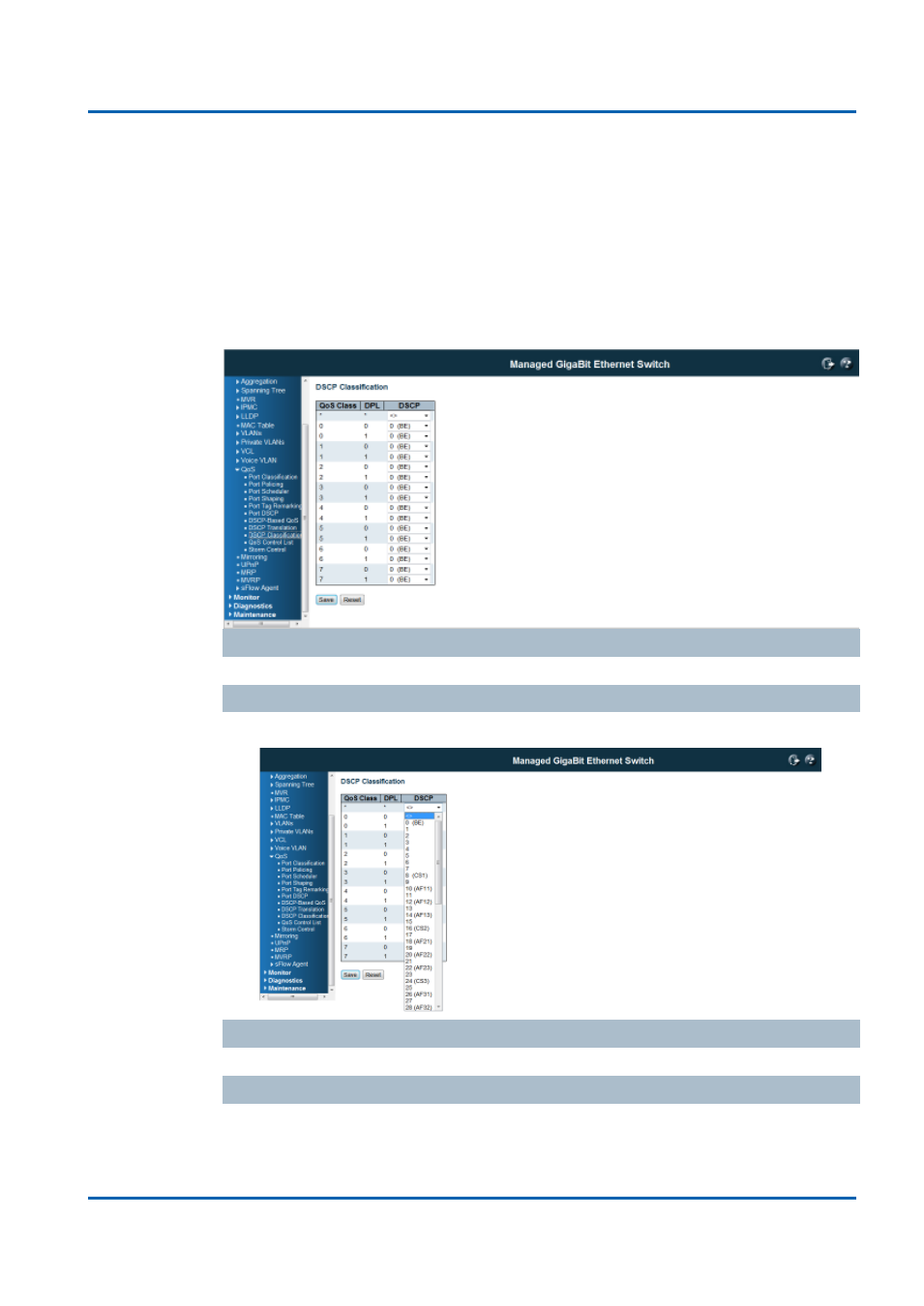

QoS / DSCP Classification

This page allows you to configure the mapping of QoS class and Drop Precedence

Level to DSCP value.

The settings relate to the currently selected stack unit, as reflected by the page

header.

The displayed settings are:

QoS Class

Actual QoS class.

DPL

Actual Drop Precedence Level.

DSCP

Select the classified DSCP value (0-63).

Buttons

Save: Click to save changes.

Reset: Click to undo any changes made locally and revert to previously saved

values.
