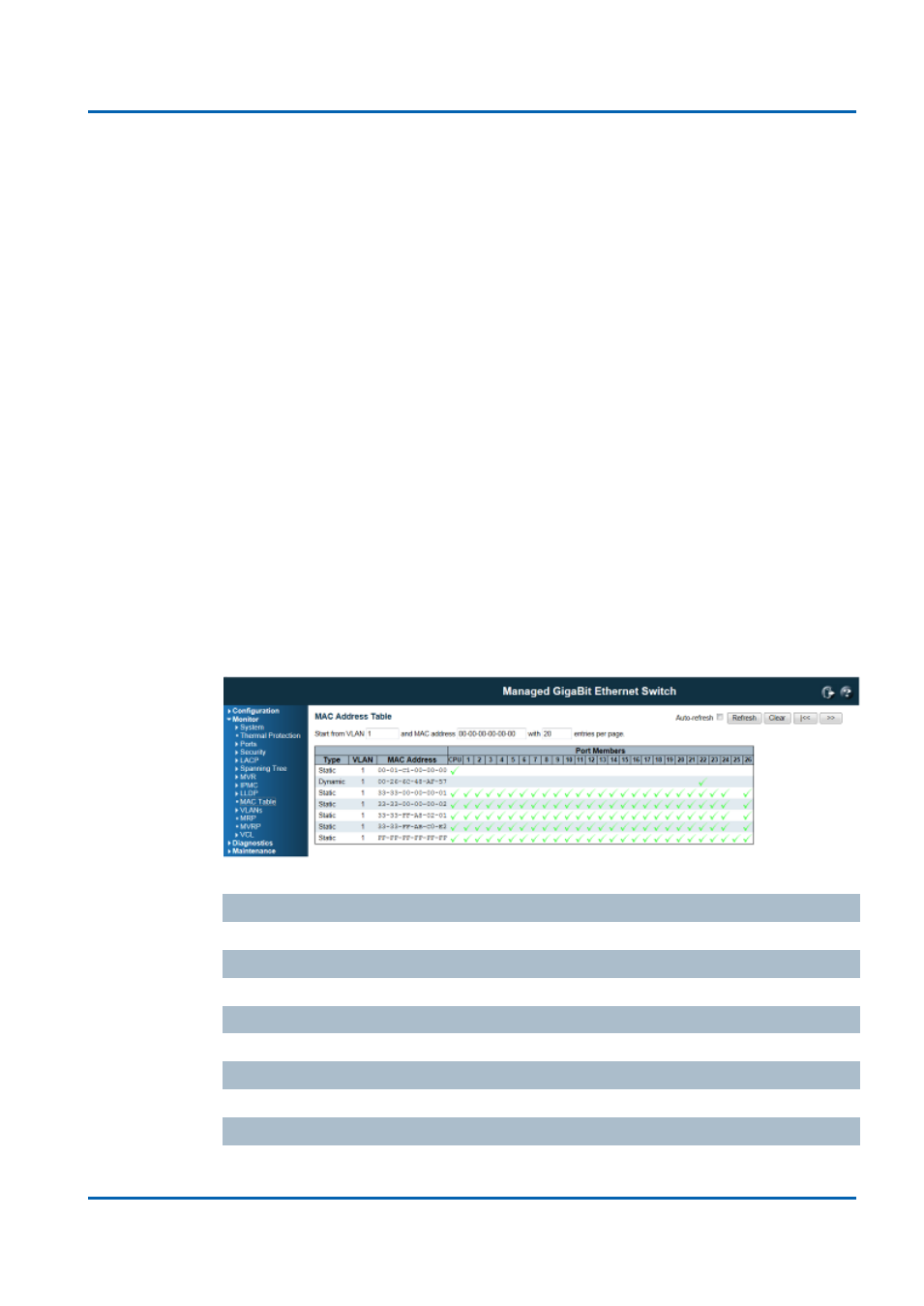

Dynamic MAC Table
Entries in the MAC Table are shown on this page. The MAC Table contains up to
8192 entries, and is sorted first by VLAND ID, then by MAC address.
Navigating the MAC Table
Each page shows up to 999 entries from the MAC table, default being 20, selected
through the "entries per page" input field. When first visited, the web page will show
the first 20 entries from the beginning of the MAC Table. The first displayed will be
the one with the lowest VLAN ID and the lowest MAC address found in the MAC
Table.
The "Start from MAC address" and "VLAN" input fields allow the user to select the
starting point in the MAC Table. Clicking the button will update the displayed table
starting from that or the closest next MAC Table match. In addition, the two input
fields will - upon a button click - assume the value of the first displayed entry,
allowing for continuous refresh with the same start address.
The will use the last entry of the currently displayed VLAN/MAC address pairs as a
basis for the next lookup. When the end is reached the text "No more entries" is
shown in the displayed table. Use the button to start over.
MAC Table Columns
Switch (stack only)
The stack unit where the entry is learned.
Type
Indicates whether the entry is a static or a dynamic entry.
MAC address
The MAC address of the entry.
VLAN
The VLAN ID of the entry.
Port Members
The ports that are members of the entry.
