QoS / Control List Configuration
QoS Control List Configuration

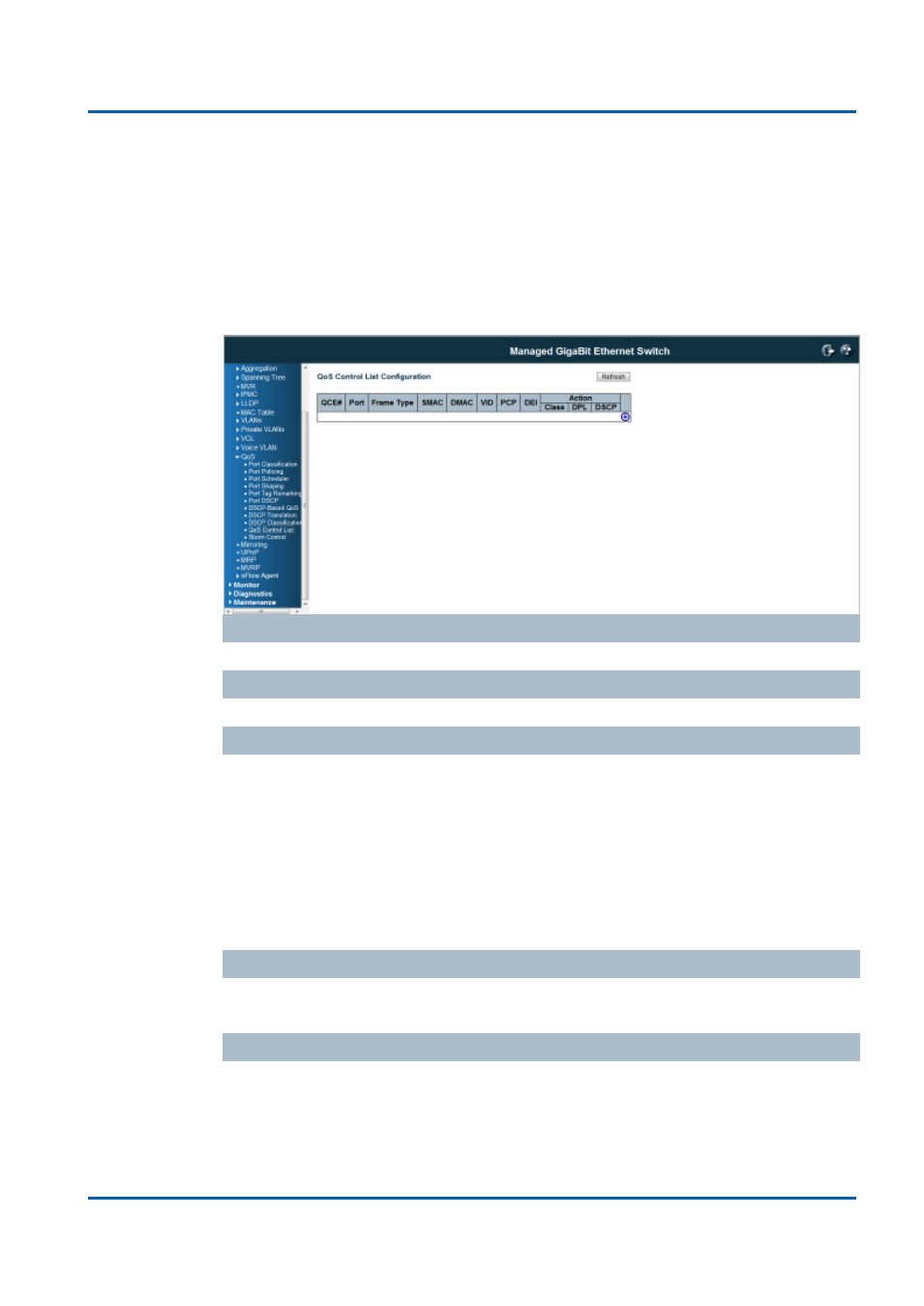

This page shows the QoS Control List(QCL), which is made up of the QCEs. Each
row describes a QCE that is defined. The maximum number of QCEs is 256 on each
switch.
Click on the lowest plus sign to add a new QCE to the list.
QCE#
Indicates the index of QCE.
IndicatesPort
Indicates the list of ports configured with the QCE.
Frame Type
Indicates the type of frame to look for incomming frames. Possible frame types are:
Any: The QCE will match all frame type.
Ethernet: Only Ethernet frames (with Ether Type 0x600-0xFFFF) are allowed.
LLC: Only (LLC) frames are allowed.
SNAP: Only (SNAP) frames are allowed.
IPv4: The QCE will match only IPV4 frames.
IPv6: The QCE will match only IPV6 frames.
SMAC
Displays the OUI field of Source MAC address, i.e. first three octet (byte) of MAC
address.
DMAC
Specify the type of Destination MAC addresses for incoming frame. Possible values
are:
Any: All types of Destination MAC addresses are allowed.
Unicast: Only Unicast MAC addresses are allowed.
