QC5200 Series User’s Guide
Distances
Two probed points are re-
quired to measure a distance.

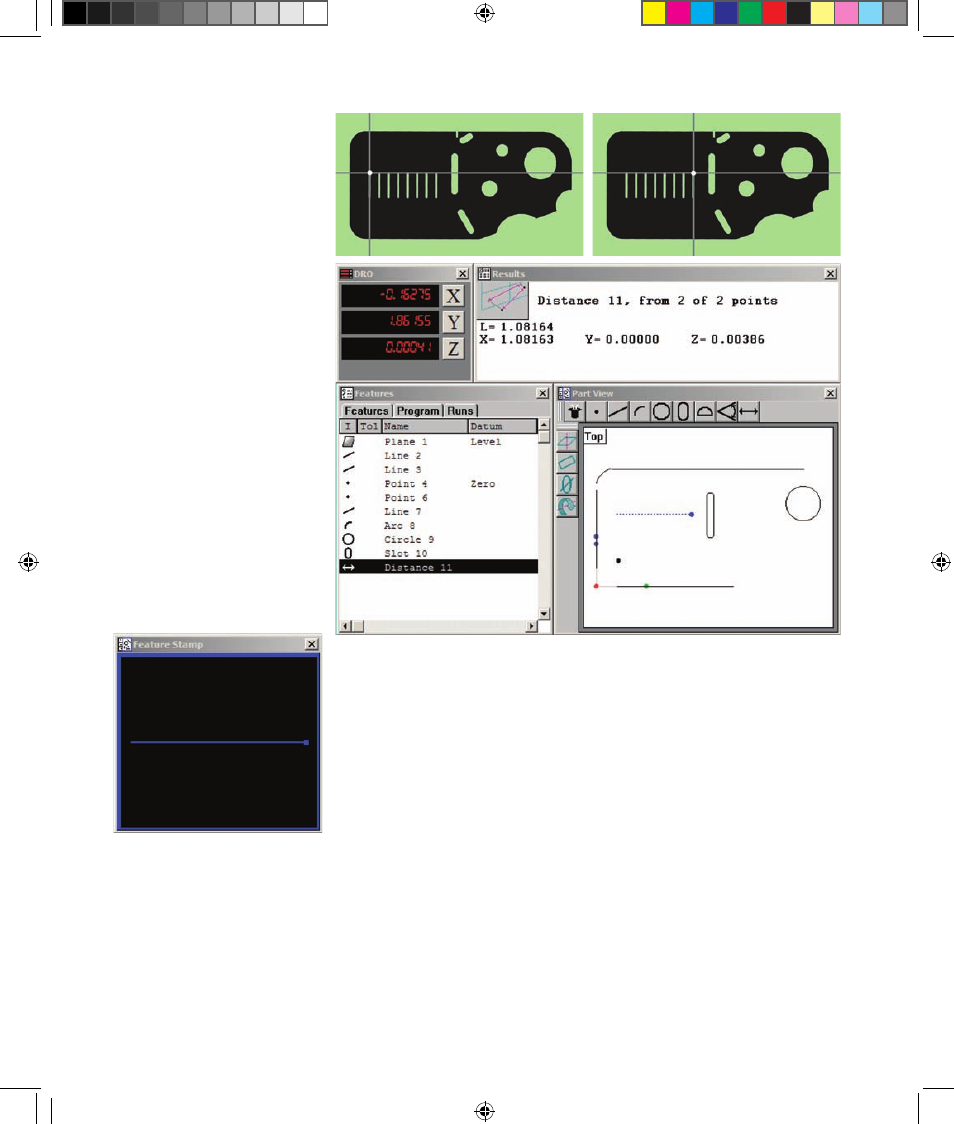

Measurement results are
shown in the Features tem-
plate, Part View window and
Results window. The Results
window shows the feature
identification number, the
number of points used in the
measurement, the length of
the distance, and the coordi-
nate location of the center of
the distance.
The vector direction of the
distance from beginning to
end is shown in the Part View
and Feature Stamp windows
as a dot at the end of the dis-
tance.
