Circles constructed from two lines

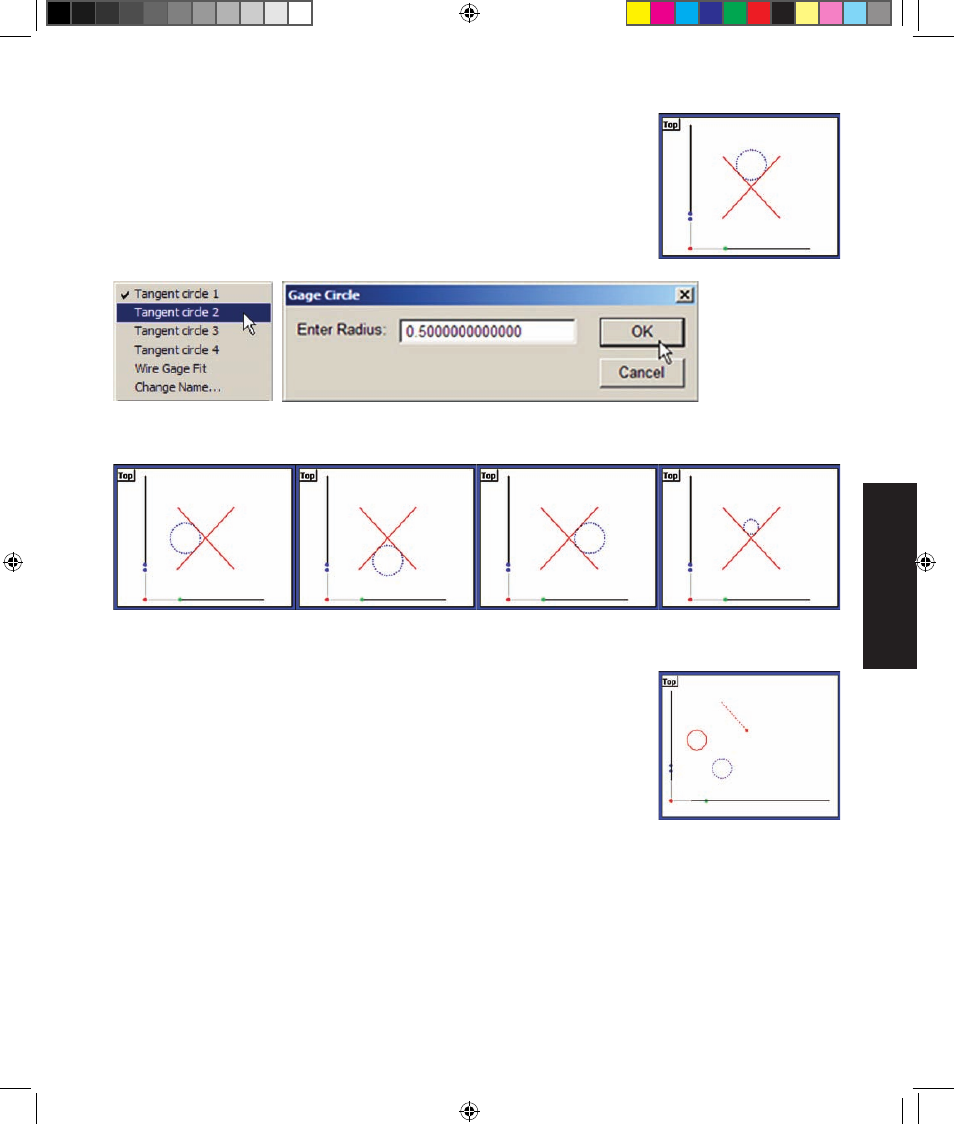

Circles will be constructed tangent to the two parent lines. The user will be
prompted for the circle radius each time a new circle feature type is selected.
Select the desired line features, click Measure Circle and then click OK.
The new circle feature will be constructed and will be shown in the Features
template, Part View window and Results window. Right-click the Results
window to select a different circle feature type.
Circle constructed from a circle and a distance
An offset circle can be constructed from circle and distance parent features.
Select the desired circle and distance features, click Measure Circle and then
click OK. A circle equal to the parent circle will be constructed, offset the
amount equal to the distance parent and will be shown in the Features tem-
plate, Part View window and Results window.
Right-click the Results
window to display
alternative features
User prompt for radius
Tangent 2 Tangent 3 Tangent 4 Wire Gage Fit
