5
Measuring
129

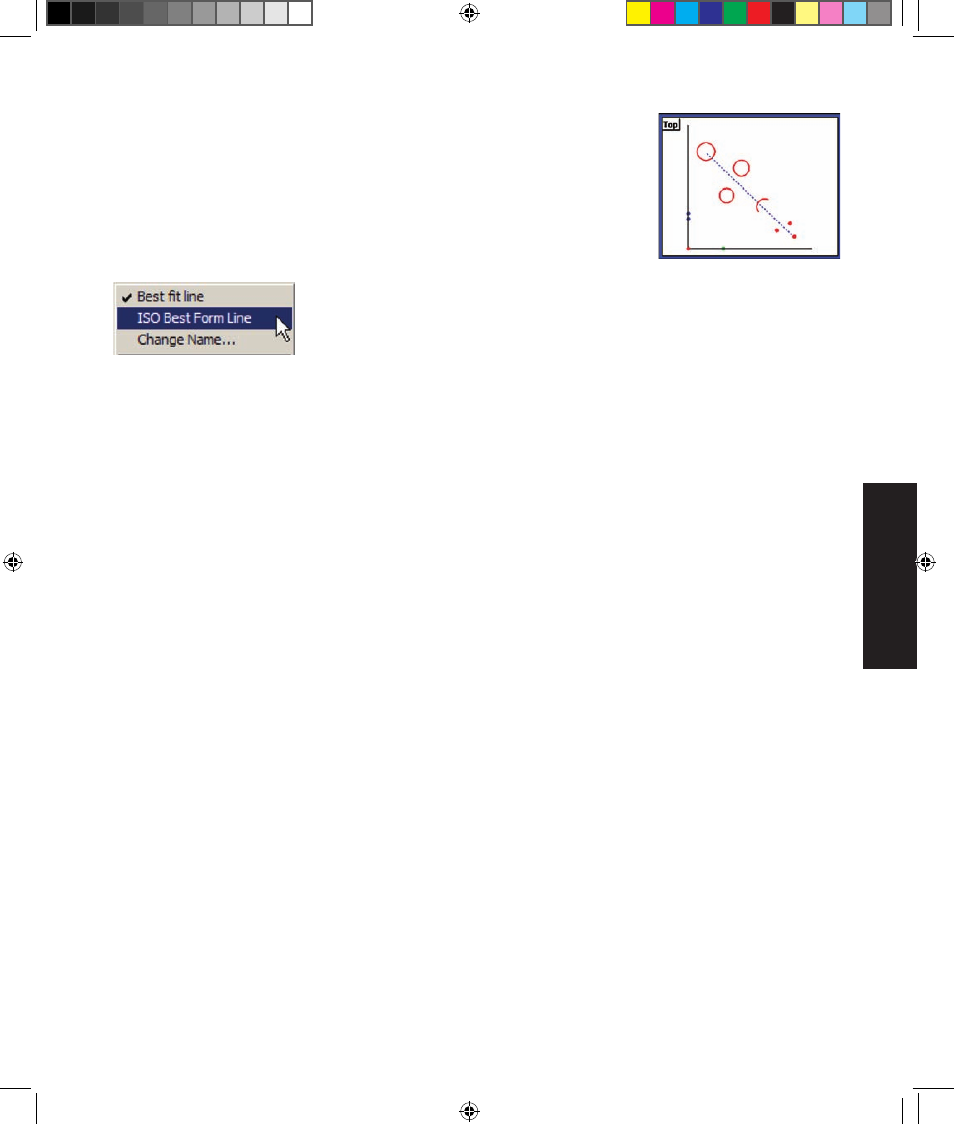

Lines constructed from multiple features
A best fit line through the center of multiple features can be constructed from
any combination and any number of points, slots, circles and arcs. Select
the desired features, click Measure Line and then click OK. The line will be
constructed and will be shown in the Features template, Part View window
and Results window. Right-click the Results window to select a different fit-
ting algorithm for the data.
Constructing Features
