8
QC5200 Series User’s Guide

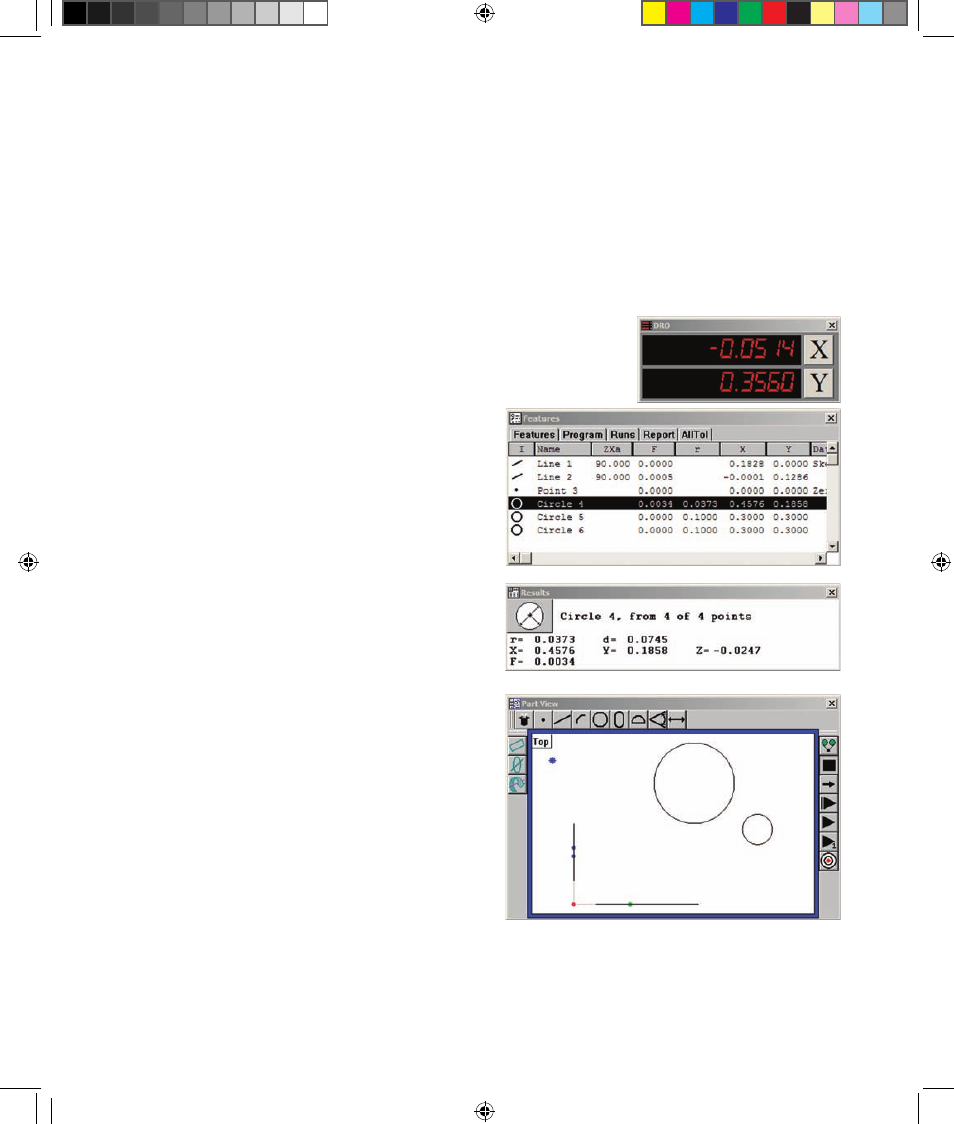

Windows
Four window types are used to present numeric, text and graphic information:
• DRO
• Templates
• Results
• Part View
DRO
The Digital Readout (DRO) presents numeric position information for
each axis.
Templates
Template windows present tabular data describing fea-
tures, programs, runs database contents and tolerance
measurements. The template windows shown here
are stacked. However, each window can be presented
alone.
Results
The Results window contains measurement data related
to a feature selected in a template or in the Part View
window.
Part View
The Part View window contains a graphic display of the
measurement reference frame and measured features.
