270
QC5200 Series User’s Guide
Button functions that can be momentary or toggled
Buttons that are active while pressed and held, or toggled on and off include:
• Axis lock
• Speed toggle
• Motors off
• Swap Z joystick
• Swap Z digital positioner
• Swap Q joystick
Button functions
Descriptions of the functions are provided in the following para-
graphs:
No assignment
Pressing the button causes no action

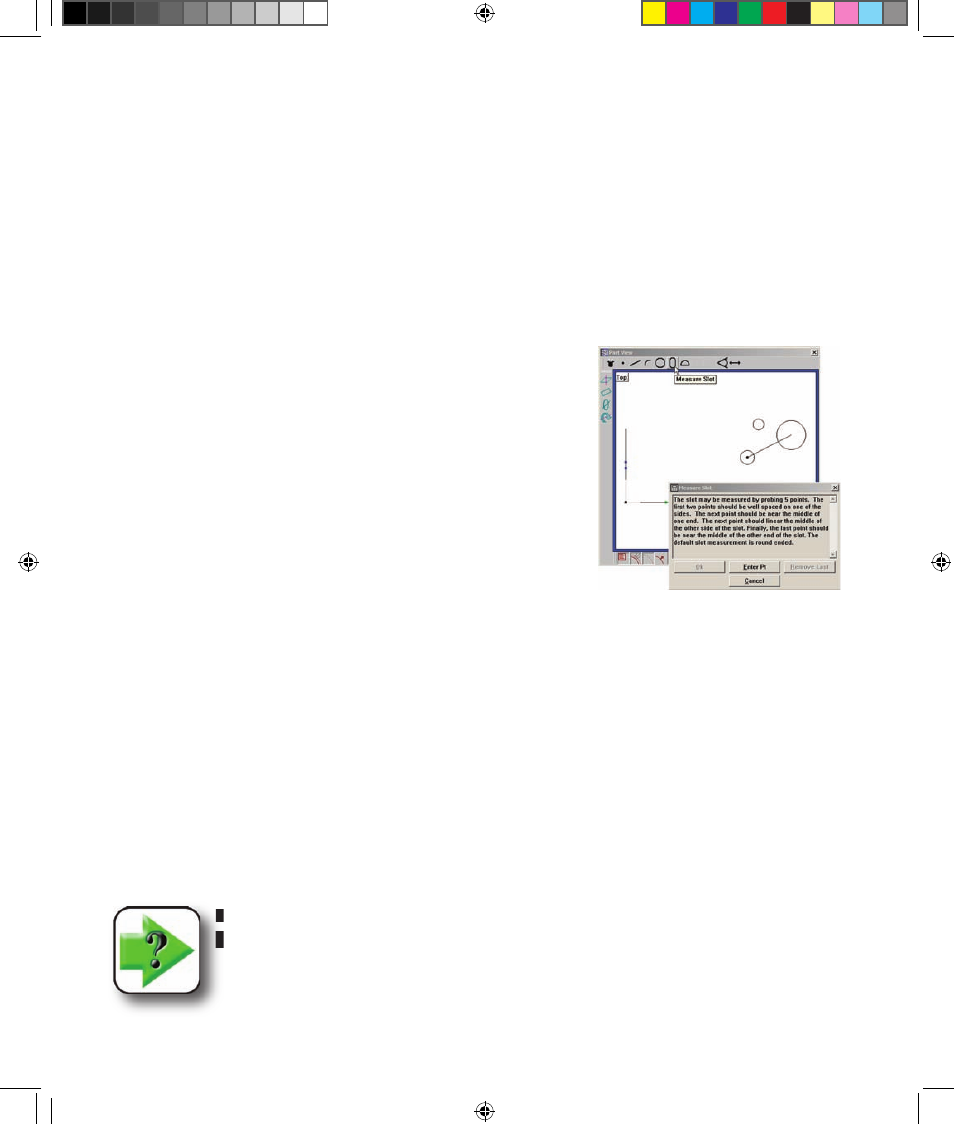

Feature measure functions
The functions below duplicate those shown on Feature measure dia-
log boxes.
• Measure: OK
• Measure: Enter pt
• Measure: Remove last
• Measure: Cancel
Axis lock
Pressing the button toggles the Axis Lock function on or off. When Axis lock is toggled on, motion is
permitted on only one Axis at a time; diagonal motion is not permitted. This function duplicates the Axis
Lock found in the Joystick Tools menu.
Motors off
Pressing the button toggles all Axis motors on or off. This the Motors Off found in the Tools menu.
Speed toggle
Pressing the button toggles all Axis motor speeds between fast and slow.
NOTE
Axis motor speeds are defined in the CNC Tools screen.
Feature measure functions
