5.5 CP-215 Transmission Definitions
5-23
5

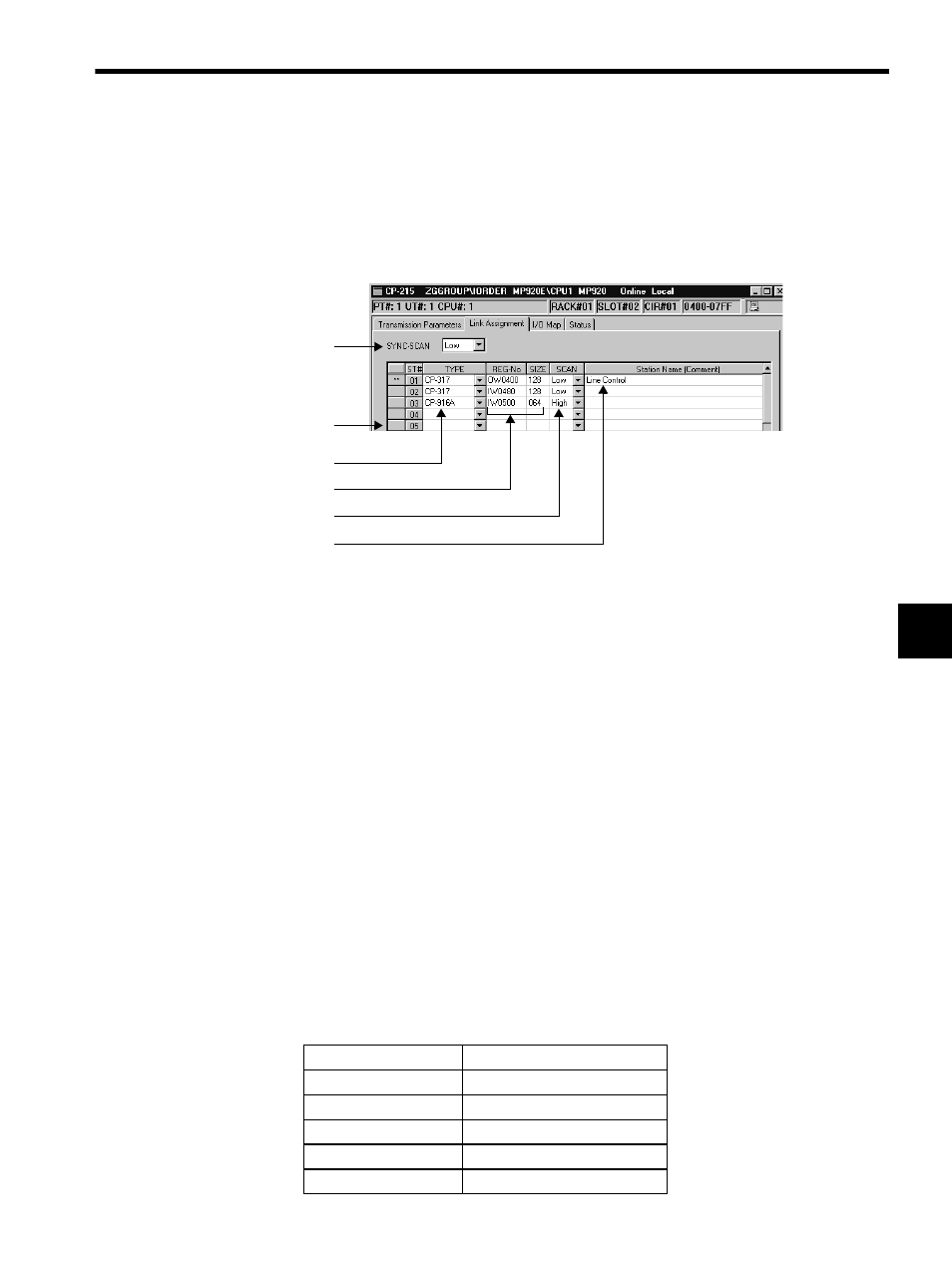

„ Link Assignments
Assignment Data Settings
Assign the I/O registers to be linked between the stations connected to the CP-215 network.
Set the station number, controller type, and I/O register number of each station to be linked.
1. Configuration Information
Displays the 215IF configuration information that was set in the Module Definition
Window.
2. SYNC-SCAN
The 215IF performs regular transmissions. This setting determines whether the trans-
mission data refresh cycle of the 215IF transmission is synchronized with the HIGH or
LOW scan cycle of the Machine Controller.
• HIGH: High-speed scan
• LOW: Low-speed scan
3. ST#
Displays the station number. Two asterisks (**) will be displayed for the local station
number. The local station number is determined by the number input in the Transmis-
sion Parameter Tab’s Own Station Number Box. The station number displays only the
number input in the Transmission Parameter Tab’s Max No. of Stations Connected Box.
4. TYPE
Select a name for the I/O device connected to each station. The following table shows
the I/O devices that can be selected.
Selected Item I/O Device Name
CP-3500H CP-3500H
CP-316 CP-316
CP-916A CP-916A
CP-9200SH CP-9200SH
CP-317 CP-317
2.
3.
4.
5.
6.
7.
