PTQ-101M ♦ Quantum Platform
Configuring the Processor with Concept
IEC 60870-5-101 Master Communication Module
Page 38 of 181
ProSoft Technology, Inc.
May 14, 2008
6

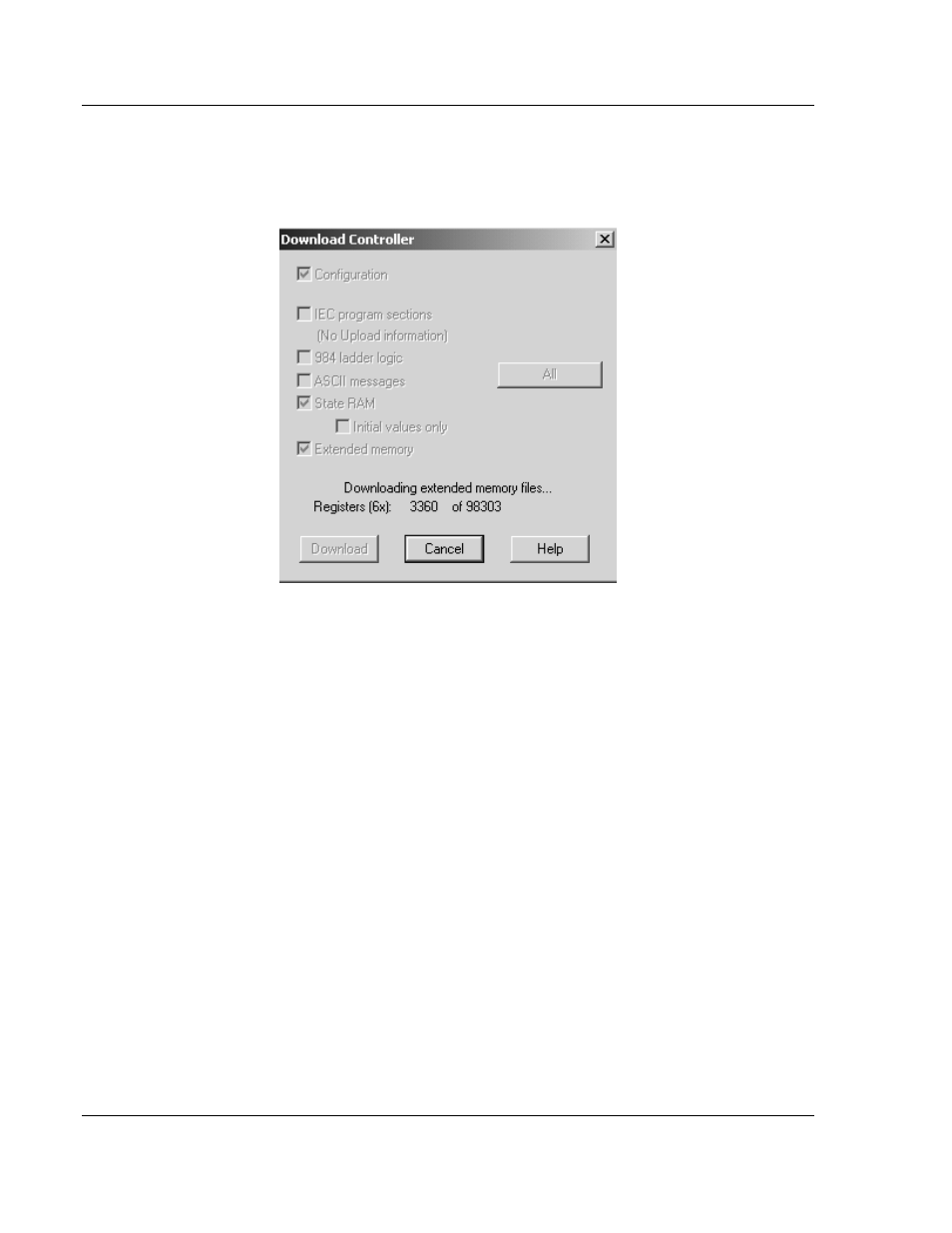

Click all, and then click Download. If a message box appears indicating that
the controller is running, click Yes to shut down the controller. The Download
Controller dialog box displays the status of the download as shown in the
following illustration.
7
When the download is complete, you will be prompted to restart the
controller. Click Yes to restart the controller.
