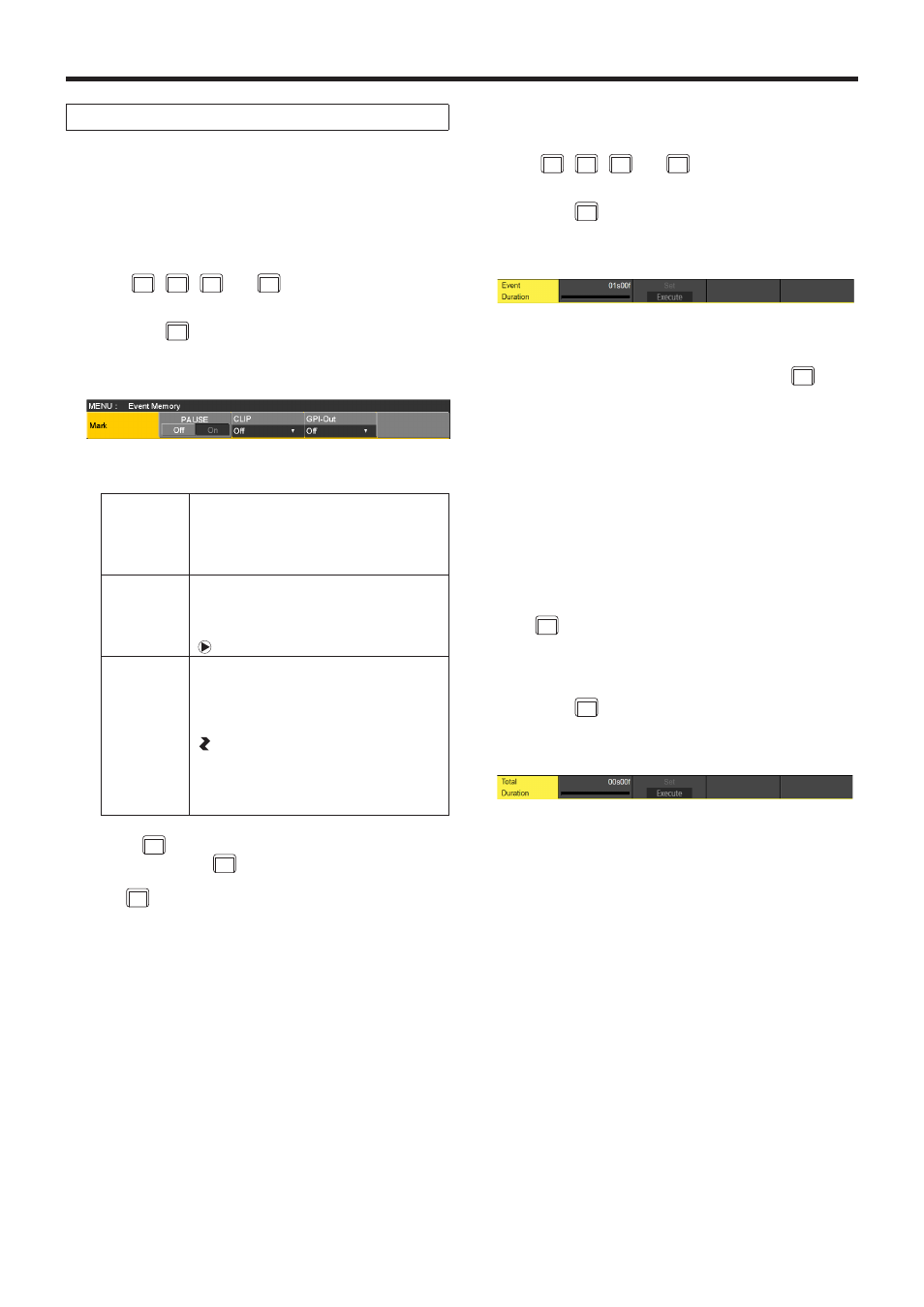

Basic operations
Setting events using the menus
w Registering marks
Marks can be registered and events inserted at the event
points.
p Pause
p Clip playback
p GPI-Out output
1 Use 0/10
<<
, 1
<
, 2
>
and .
>>
to select the event where
the mark is to be registered or the event inserted.
2 Press the SHOT
EVENT
button to display the Event Memory
menu.
3 Use [F1] to display the Mark sub menu.
4 Use [F2] (PAUSE item), [F3] (CLIP item) or [F4]
(GPI-Out item) to select the item.
PAUSE When “On” is selected and the mark is
registered in the event point, playback is
paused at the mark position during event
playback.
“||” appears above the timeline.
CLIP When “Clip1” or “Clip2” is selected and the
mark is registered in the event point, the clip
is played back at the mark position during
event playback.
“ ” appears above the timeline.
GPI-Out When a GPI output port from “GPI-O1”
to “GPI-O19” is selected and the mark is
registered in the event point, pulse signals
are output from the GPI Output port at the
mark position during event playback.
“ ” appears above the timeline.
p For the Config menu  GPI-Out Port 1/5
sub menu to GPI-Out Port 5/5 sub menu 
Assign item, check that the selected GPI
output port is set to “Event MEM”.
5 Press 6
MOD
to register the mark.
In addition, press 4
INS
to insert the event.
To cancel the mark registration or event insertion, press
the
C
UNDO
button.
w Setting the event duration
The lengths of the events can be set.
1 Use 0/10
<<
, 1
<
, 2
>
and .
>>
to select the event to be
modified.
2 Press the SHOT
EVENT
button to display the Event Memory
menu.
3 Use [F1] to display the Event Duration sub menu.
4 Use [F2] to set the event length.
5 Press [F3] to enter the duration.
To cancel what has been modified, press the
C
UNDO
button.
w Setting the total duration
The total length of all the events from start to end can be set.
When the total duration is changed, the durations of the
events contained in the event memories are re-calculated
using the duration ratio prior to the change.
However, the shortest duration of an event cannot be shorter
than one frame.
1 Press the [EVENT MEM] button and light its indicator.
2 Press the [RECALL] button to light its indicator, and use
the
-/+
PAGE
button and number keys (1 to 10) to select the
event memory to be modified.
 Refer to “Recalling the operations stored in the
memory (Recall)”.
3 Press the SHOT
EVENT
button to display the Event Memory
menu.
4 Use [F1] to display the Total Duration sub menu.
5 Use [F2] to set the event length.
6 Press [F3] to enter the duration.
p If no more events can be contained in the total duration
which already has many events and which has been
changed, the number of frames will be forcibly adjusted.
