The clock recovery core produces resynchronized video data together with the following clocks:
• Recovered video pixel clock
• Second clock with twice the recovered pixel clock frequency
The video output data is synchronous to the recovered video clock. You can use the second clock as a
reference clock for the TX transceiver, which is optionally used to serialize the video output data.

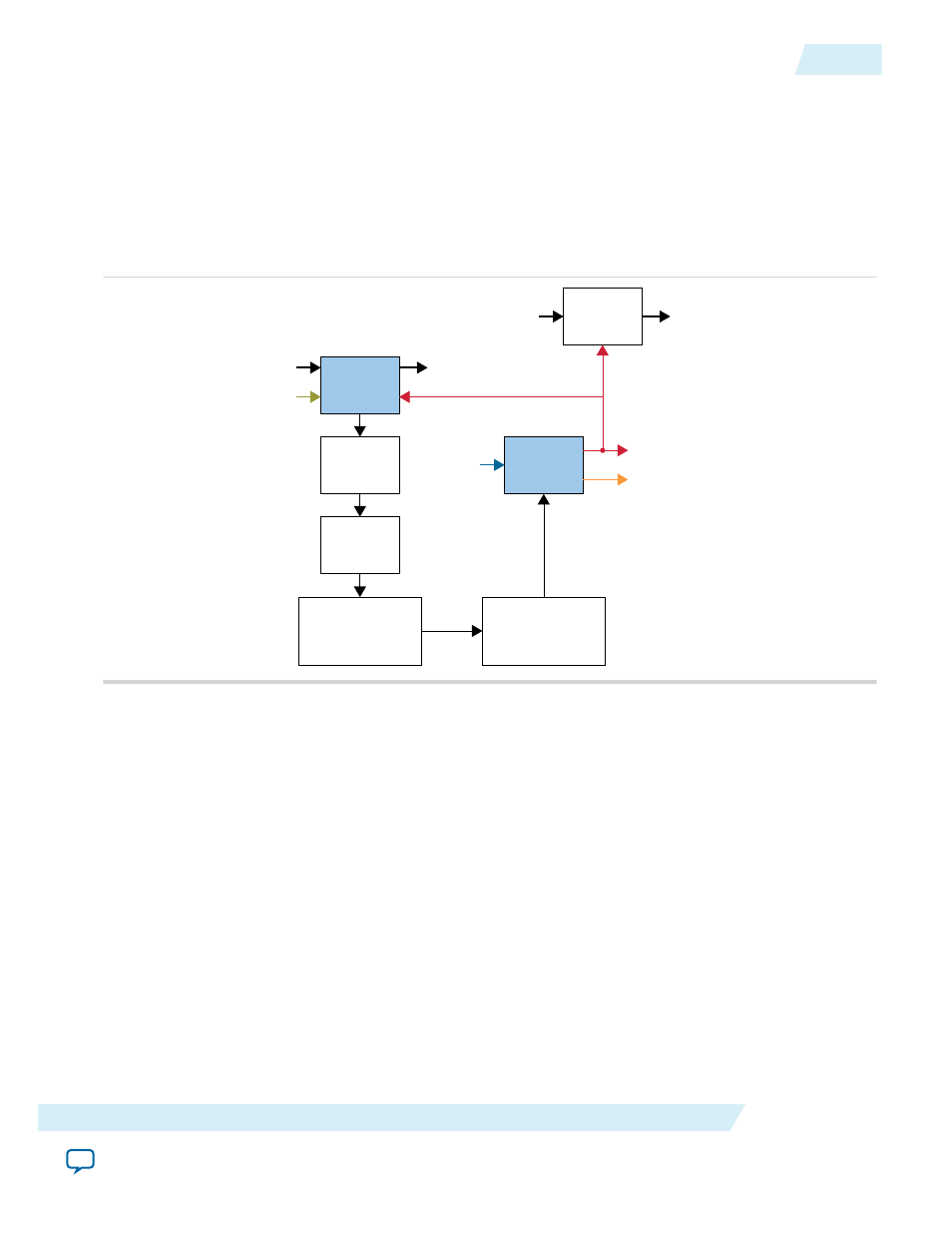

Figure 6-4: Clock Recovery Core Functional Diagram
The following shows a simplified functional diagram of the clock recovery core.
Video Timing
Generator
Altera fPLL
Reconfiguration
Controller
fPLL
Reconfiguration
Avalon Master
fPLL
Controller
Loop
Controller
FIFO
Altera fPLL RX Link
Clock
Fill Status
RX Video Clock
Video Input Data Video Output Data
Recovered Video Clock x2
Recovered Video Clock
RX MSA Video Output Syncs
The clock recovery core clocks the video data input gathered from the DisplayPort sink into a dual-clock
FIFO at the received video clock speed. The core reads from the video data input using the recovered
video clock.
• Video Timing Generator: This block uses the received MSA to create
h-sync
,
v-sync
, and
data
enable
signals that are synchronized to the recovered video clock.
• Loop Controller: This block monitors the FIFO fill level and regulates its throughput by altering the
original Mvid value read from the MSA. The block feeds the modified Mvid to the fPLL Controller,
which calculates a set of parameters suitable for the fPLL Controller. This set of parameters provides
the value to create a recovered video clock frequency corresponding to the new Mvid value. The
calculated fPLL parameters are written by the fPLL Reconfiguration Avalon Master to the Altera fPLL
Reconfiguration Controller internal registers.
• Reconfiguration Controller: This block serializes the parameter values and writes them to the Altera
fPLL IP core.
• Altera fPLL: Generates the recovered video clock and a second clock with twice the frequency.
Clock Recovery Core Parameters
You can use these parameters to configure the clock recovery core.
