302

Appendix B, Matrox MXO2 Connectors

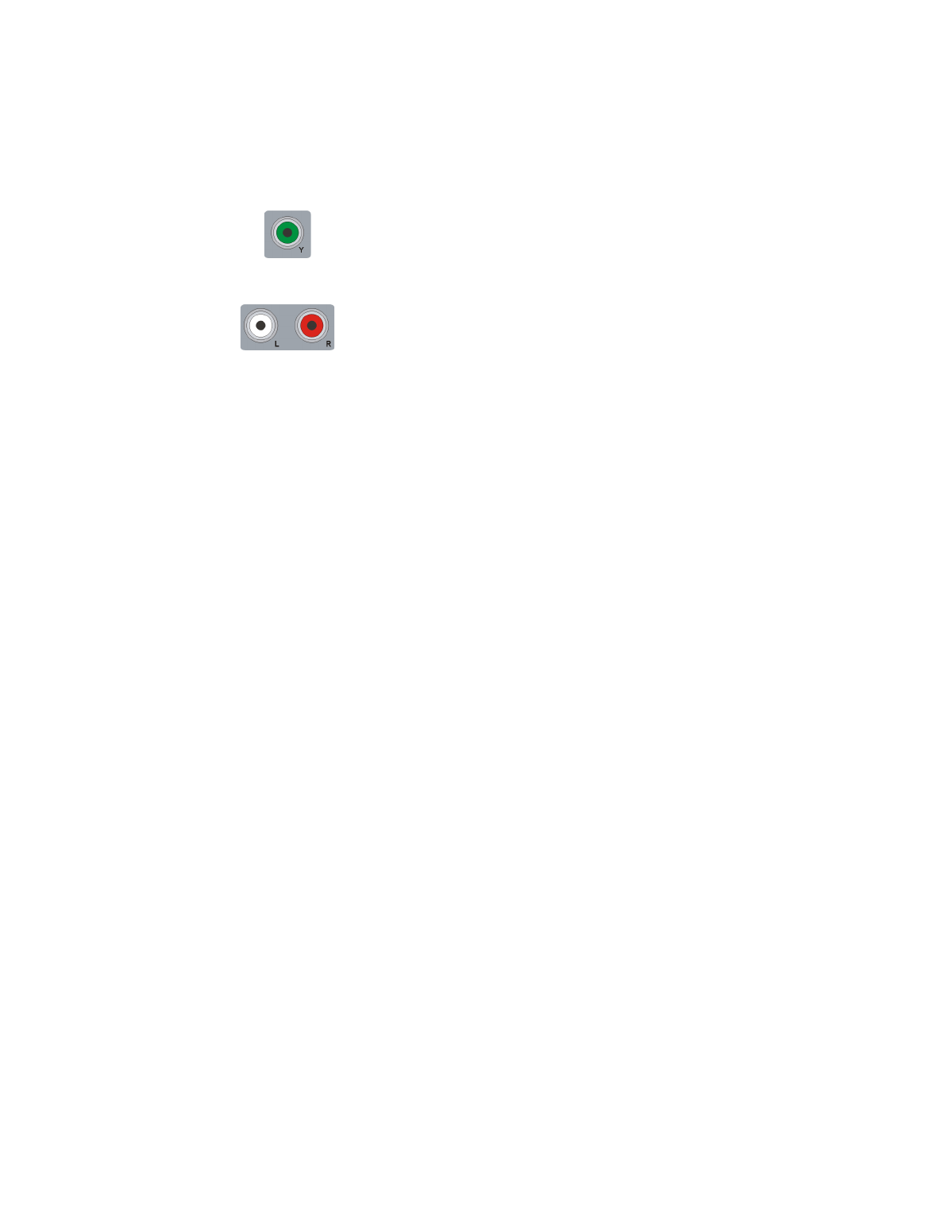

Composite video (Y)

Allows you to output SD video to an

analog NTSC or PAL device. Connect a composite video cable
to a video monitor, VTR, or other NTSC or PAL device.

Analog audio (unbalanced)

Provide outputs for unbalanced

analog audio channels one and two, or one stereo pair. Connect
RCA cables to a VTR, audio mixer, speakers, or other audio
device.
