4.5.1 GPI/GPO Pin-Out Information

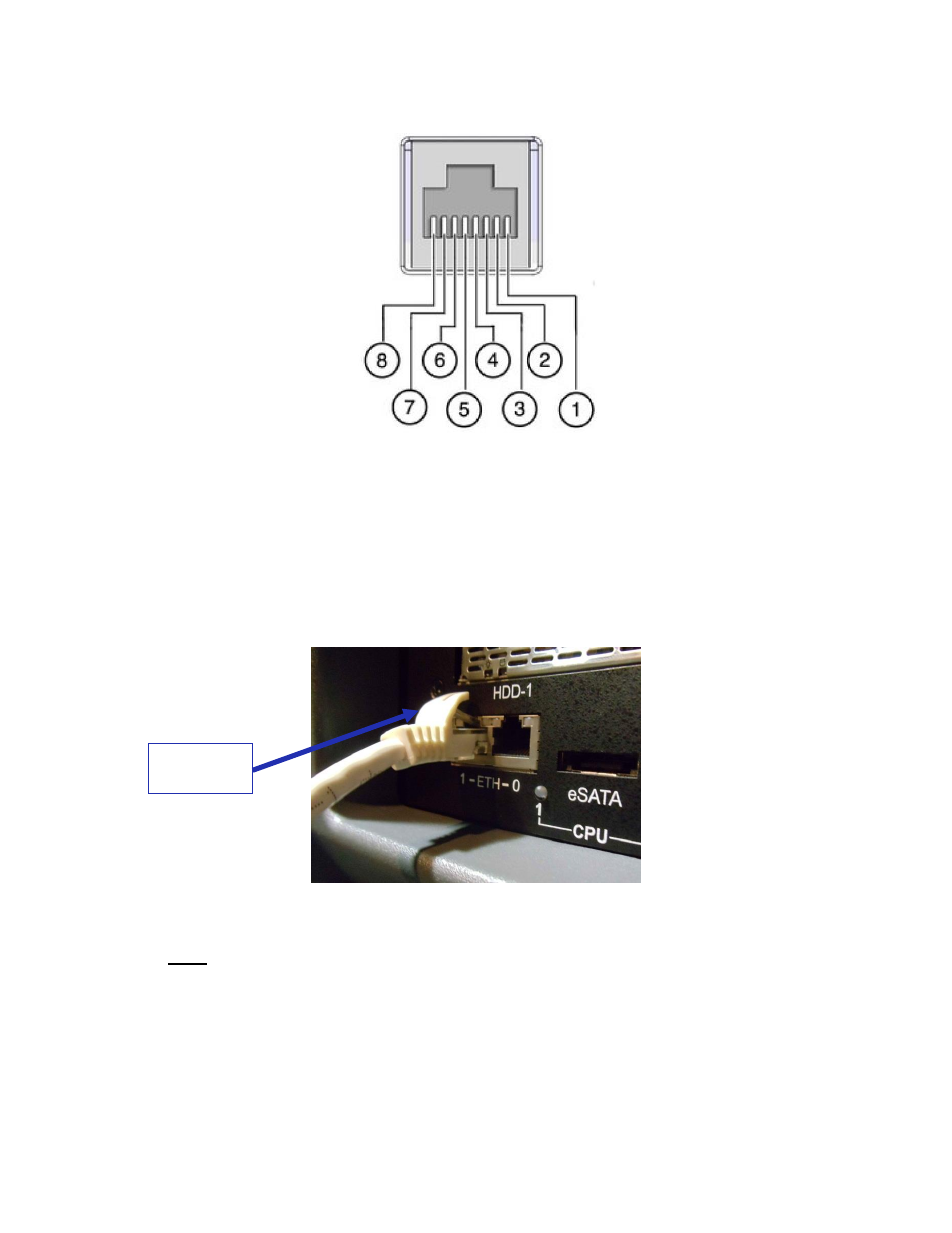

Figure 24: RJ45 Socket Pin-Out
4.6 Ethernet Cables
● Connect an Ethernet cable to the Ethernet connector on the IMS1000 and the other end
of the cable to either a laptop or network switch (Figure 25). Install a ferrite core clamp
near the connector closest to the IMS1000. Refer to Section 25 for more information on
ferrite core clamp installation.
Figure 25: Ethernet Connector
Note: Ethernet port (Eth0) is set to DHCP by default. All IMS1000 boards are shipped
from the factory with the following default IP address for Eth1:
o
IP: 192.168.100.50
o
SM: 255.255.255.0
o
GW: 192.168.100.1
For more information, refer to Section 23.
Ethernet
Cable
