D16 Group Drumazon 2 Drum Machine 909 Emulation Plug-In - Manual (Page 27)

The Look Ahead option allows the Compressor to “see what’s coming ”, to better predict signal level changes and allow
for precise peak detection at the cost of latency.
• Off - The option is disabled (no Look Ahead ).
• 1ms - 1ms look ahead.
• 5ms - 5ms look ahead.

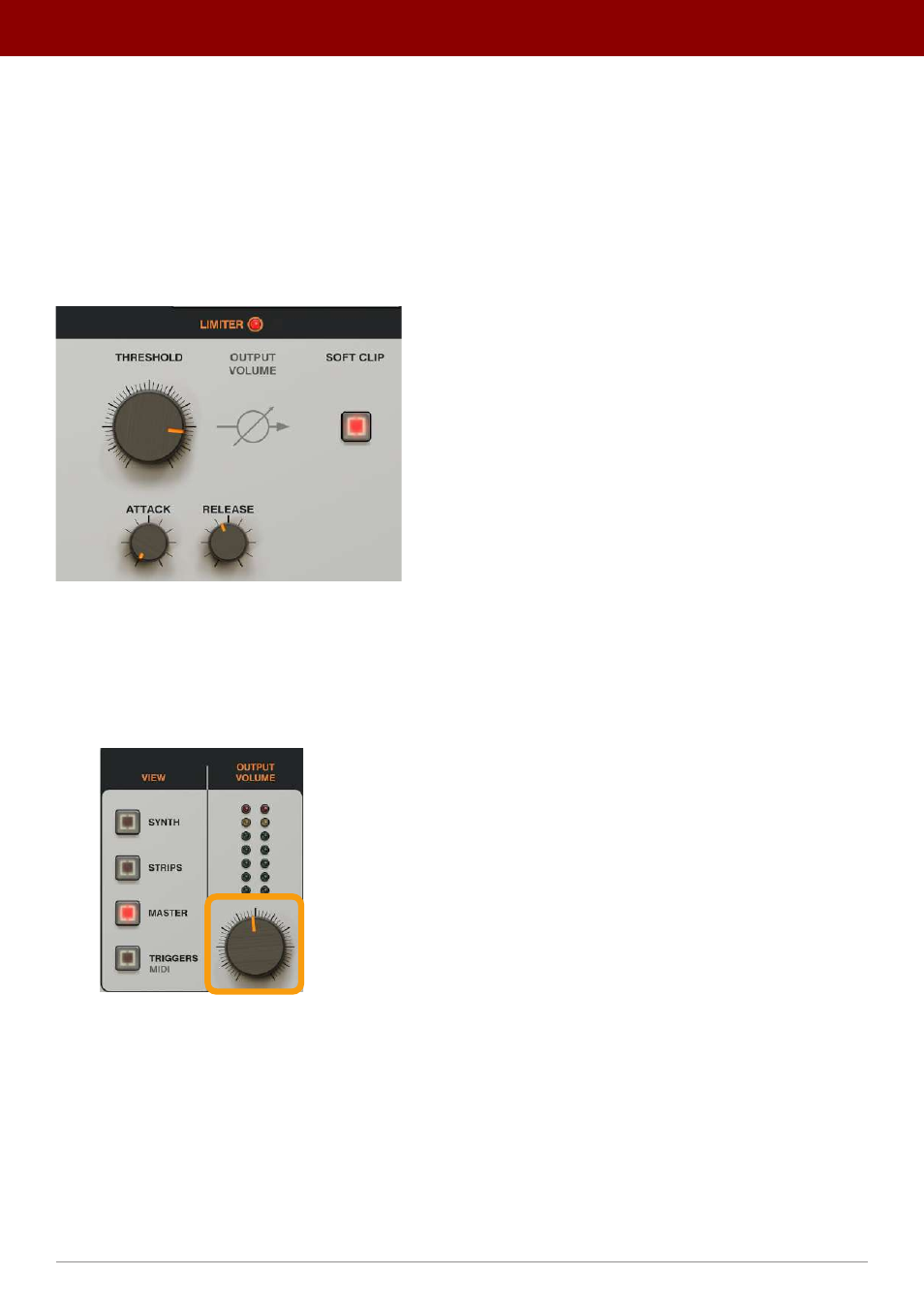

Limiter
The limiter has fairly standard parameters, with a soft-clip option:
The Master FX chain Limiter
• Attack - Sets the attack time for the limiter’s VCA (Voltage Controlled Amplifier) envelope between 1 and 500 ms.
• Release - Sets the release time for the limiter’s VCA envelope between 1 and 500 ms.
• Threshold - Adjusts the threshold level below which the limiter activates its VCA and the envelope is triggered.
• Output volume - Sets the overall output volume for the signal leaving the Limiter and can be found outside the
Master view for quick access:
Output Volume parameter
• Soft Clip - Enables a diode-like soft clipper that cuts out all peaks that exceed a 0 dB amplitude level.
27
inteRface oveRview • The sound conTrol secTion
