568
30 Managing mesh networks
Different from a traditional WLAN, a WLAN mesh network allows for wireless connections between
APs, making the WLAN more mobile and flexible. Moreover, multi-hop wireless links can be
established between APs.
WLAN mesh has the following advantages:
• Low cost and high performance
• Expandable without the need of new wiring or access points
• Applicable to areas such as metro, company, office, large warehouses, manufacturing, ports
and waterfronts
• Avoidance of single point failures because of multi-path availability
Figure 74 and Figure 75 show applications of typical WLAN mesh networks.

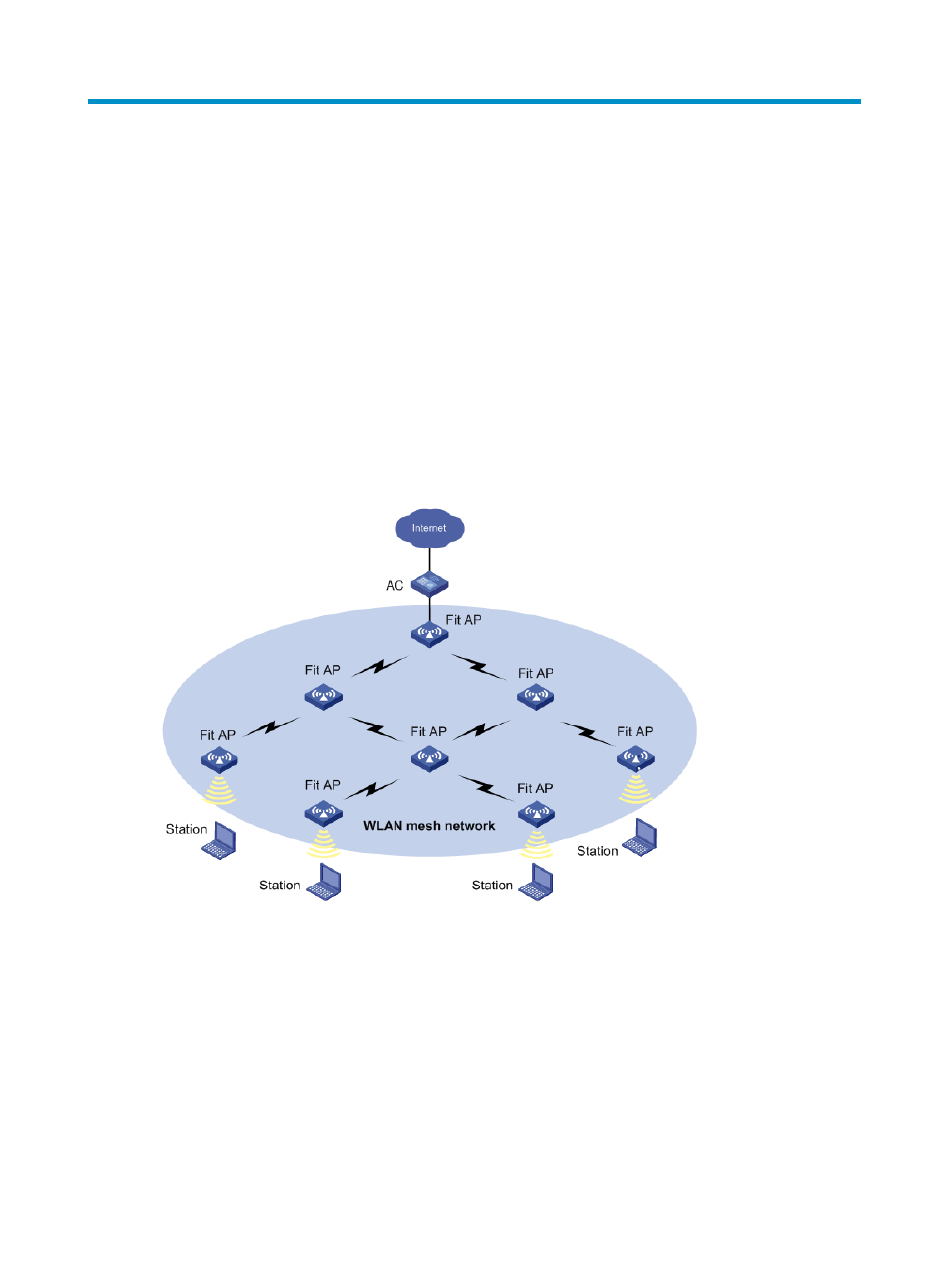

Figure 74 Typical WLAN mesh network (AC application)
