EDIUS NEO — User Reference Guide 133
Preview Settings

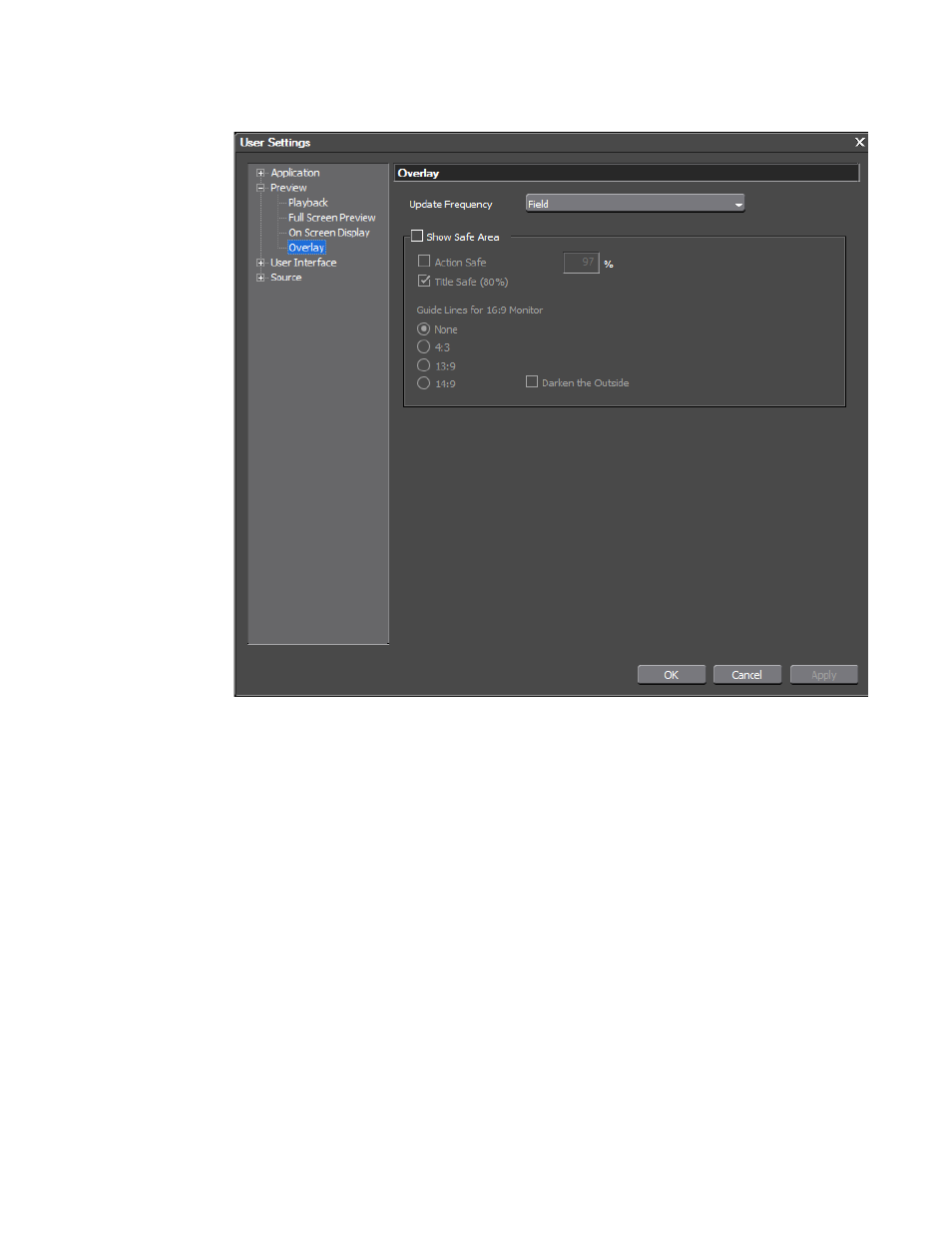

Figure 120. Overlay Settings
Update Frequency
Select the desired overly update frequency; Field (default) or Frame.
Show Safe Area
Safe area overlays show an outline over the video content which indicates
the safe areas for action and titles. On some screens, the edges of content
may be lost due to various degrees of over scanning. To make certain that
titles and other important information will always be visible, they should
be inside the safe areas.
If Show Safe Area is selected, the Action Safe Area may be set as desired
(default = 100% of the screen). In
Figure 121 , the action safe area is set to
95% to better see the overlay.
The title safe area is fixed at 80% of the screen area and cannot be changed.
Select Title safe area (80%) to display the title safe area overlay.
