40 EDIUS NEO — User Reference Guide
Section 1 — Getting Started
Customizing Screen Layout
If you wish to use the entire lower section of the monitor display for the
Timeline, the Information Palette can be moved to the upper tabbed section
with the Asset Bin, Source Browser and palettes as illustrated in
Figure 30 .
In the custom layout in Figure 30 , all of the major elements of EDIUS NEO
are still readily available with a single mouse click.
Note Other custom layouts may be created according to user preferences. The
example in
Figure 30 is intended to show one way in which all major elements
remain easily accessible although not simultaneously visible on the screen.

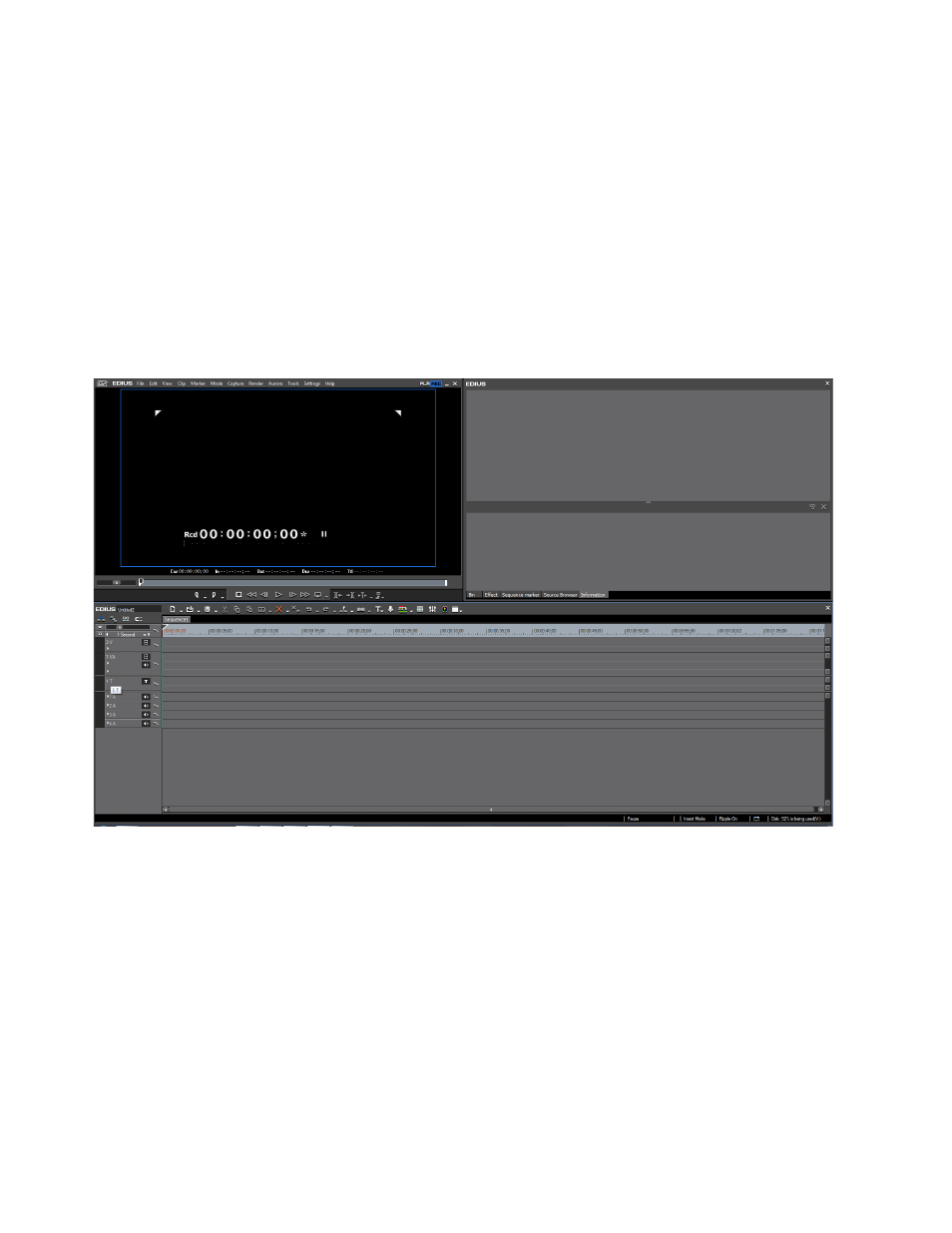

Figure 30. Single-Monitor Customized Layout
To create the custom layout depicted in Figure 30 , do the following:
1. Click View on the menu bar and then select Single Mode.
Note Both the Player and Recorder previews are still available. In single mode they
are not simultaneously displayed. See Preview Window
on page 44 for more
information.
2. Drag the Information tab and drop it next to the Bin, Effect, Sequence
Marker and Source Browser tabs in the upper right section of the
display as illustrated in
Figure 31 .
