580 EDIUS NEO — User Reference Guide
Section 6 — Effects and Titles
Note When adding transitions and cross fades, the length of the clips and the
sequence changes depending upon the current editing mode (Extend or Fix).
No margin is present if the Out point of the first clip is set at the end of the
clip and the In point of the second clip is at the beginning of the clip.
If there is no margin between clips, the black triangles illustrated in
Figure 677 are present on the clips. The triangles indicate that the Out point
of first clip is at the end of the clip and the In point of the second clip is at
the beginning of the clip.

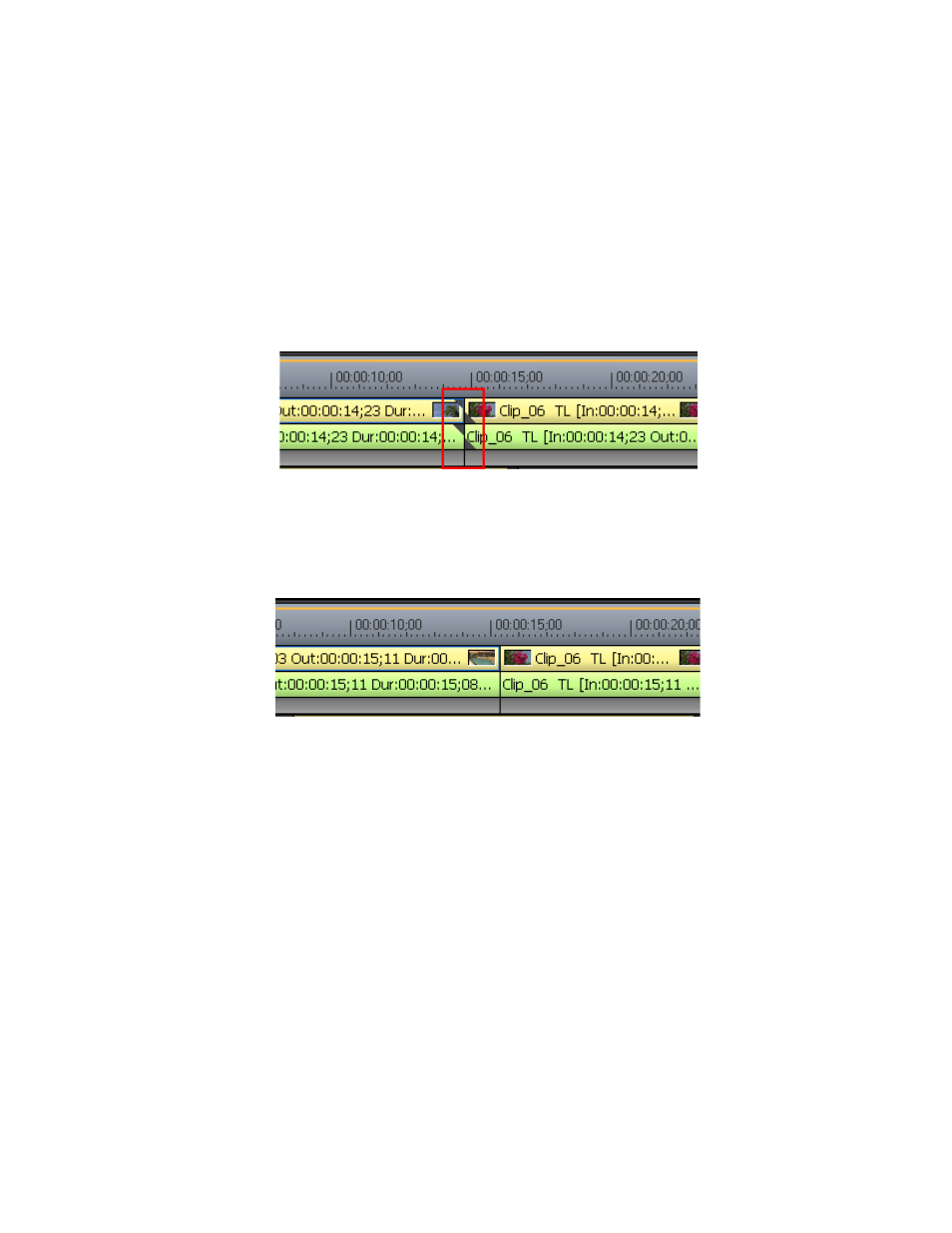

Figure 677. Clips with No Margin
If there is a margin between clips, the black triangles do not appear as
shown in
Figure 678 .
Figure 678. Clips with Margin
Clip Transitions
Transitions are effects that occur between clips as one clip is ending and the
next clip is beginning.
To add a transition between clips, do the following:
1. Select Transitions in the Effect folder of the Effect Palette.
2. Select the desired transition type from the effect view (see Figure 679 )
or the Effect>Transitions folder if the effect view is hidden.
