EDIUS NEO — User Reference Guide
191
Capturing from a DV or HDV Device

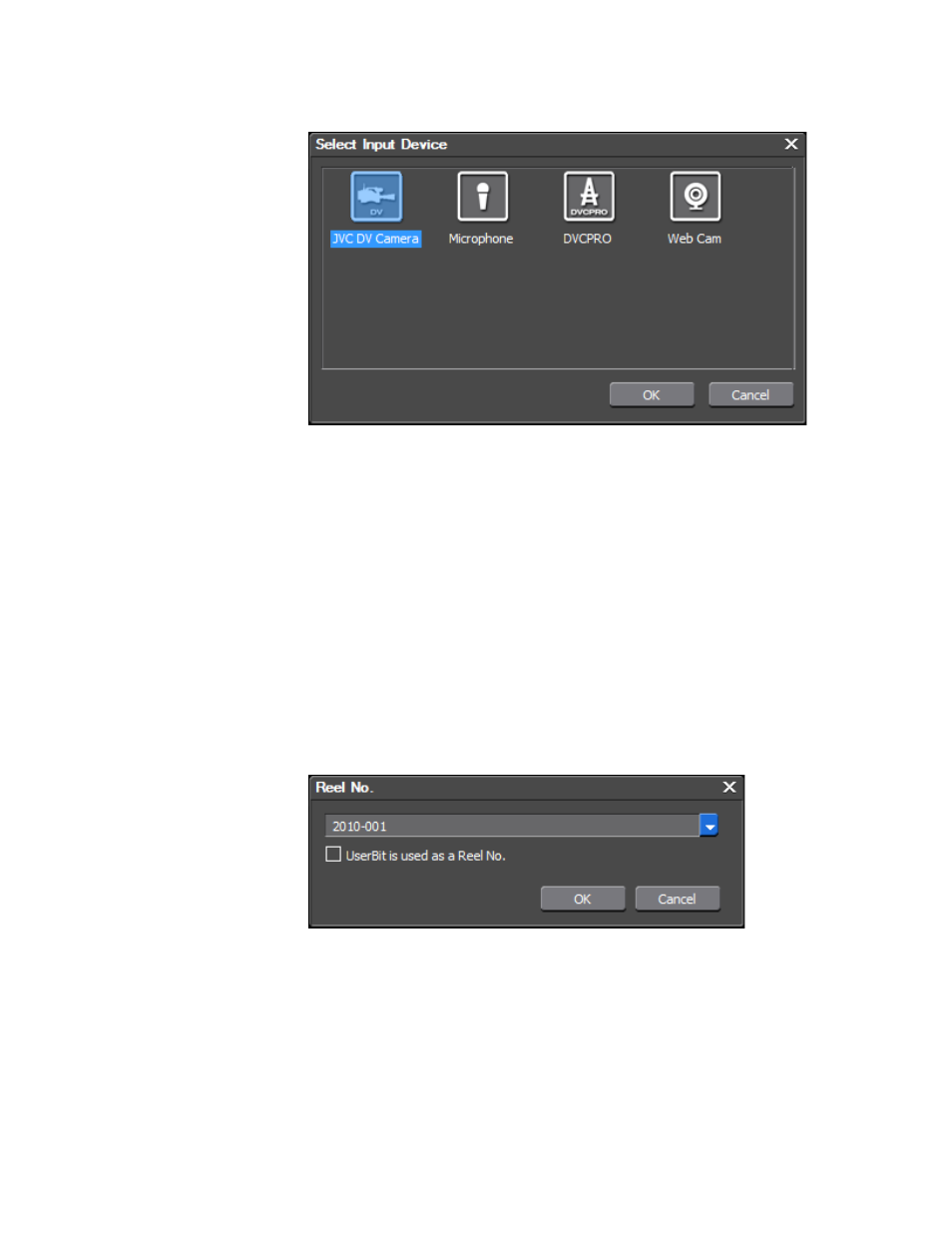

Figure 173. Select Input Device Dialog
Note
The available input device(s) are dependent upon the current project settings
and the device(s) which are attached to the EDIUS NEO computer. Device set-
tings are defined as device presets. For more information on configuring
device presets, see
Any attached devices that can be used with the current project settings and
for which hardware device presets exist are displayed in the Select Input
Device dialog.
2.
Select the desired capture device and click the
OK
button.
Note
Depending on the settings in the Capture Settings dialog, the ReelName or
Rename dialogs may appear when the OK button is clicked. See Setting Reel
Name
for more information.
Figure 174. ReelName Dialog
3.
If the Reel No. or Rename dialogs appears, enter the desired reel
number and file name for the captured file and click the
OK
button.
4.
Set the desired In, Out and Duration values for the clip to be captured
(see Setting In/Out Points and Duration
methods for setting these values). Setting these values determines the
capture mode. See Capture Modes
for more information on
capture modes.
