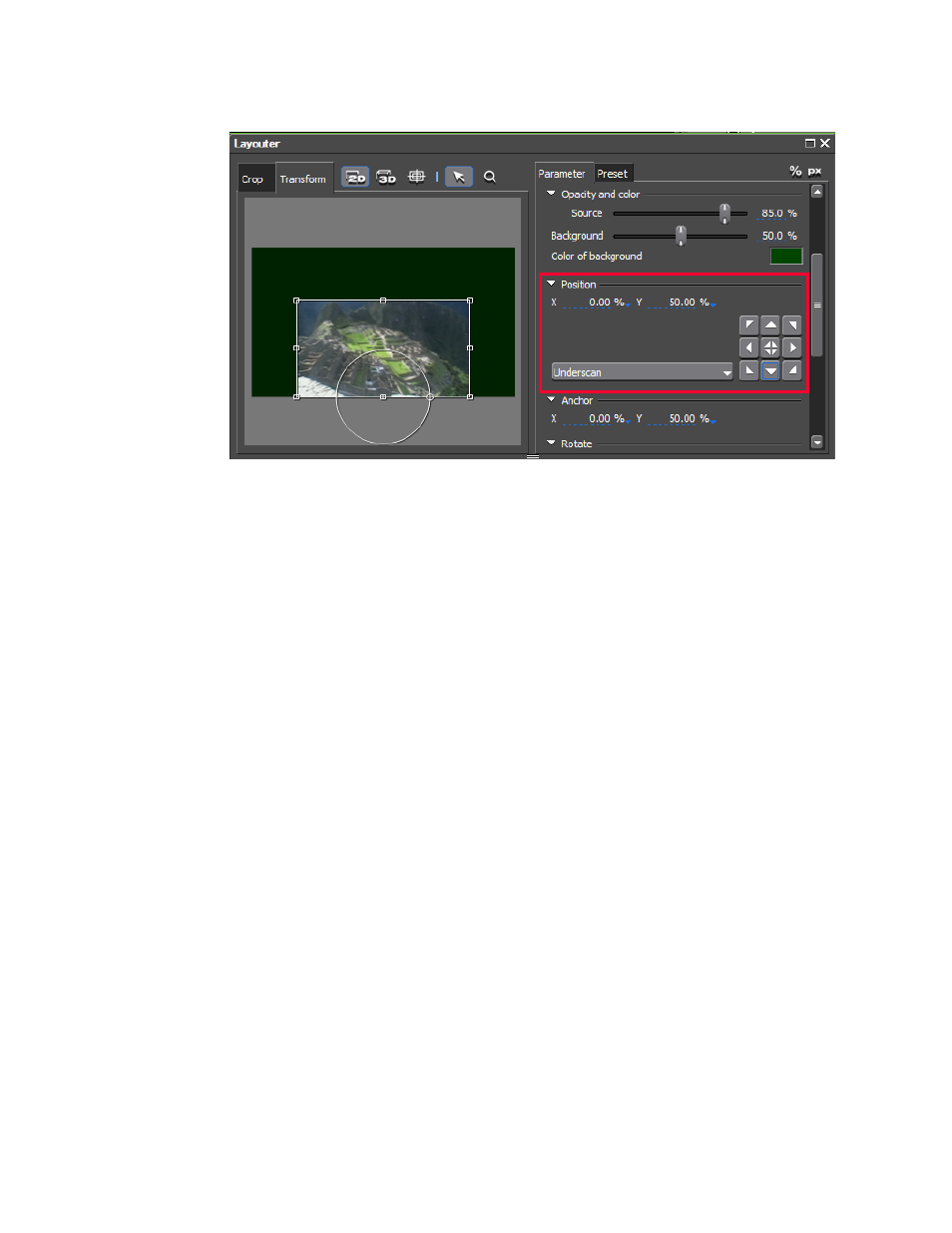

Figure 437. Source Position in Layouter
The nine (9) position control buttons specify fixed anchor positions within
the specified area selection. The button positions are Upper Left, Upper
Center, Upper Right, Center Left, Center, Center Right, Lower Left, Lower
Center and Lower Right.
In the example in Figure 437 , the source image has been positioned by
clicking the lower center button.
Note Only one position is active. Selecting another position changes the active
position to the new selection.
If the Center position is selected, the display remains centered even when
the Source Crop or Stretch settings are modified. If a different position
control is selected, the position may also be modified with X and Y values.
The position controls also work in conjunction with the designated image
display area.
From the drop-down list, select the desired display area as indicated in
Figure 438 :
• Underscan Area
• Overscan Area
• Title Safe Area
The position selection button (or X, Y coordinates) in this example positions
the image in the lower center of the Titlesafe image display area.
