NVR 2.3 (V2.3.05.11) User’s Manual
PTZ Preset
This section describes how to setup PTZ preset points, auto scan and the OSD (On Screen
Display) settings of the camera. Some devices may not support all functions listed here.

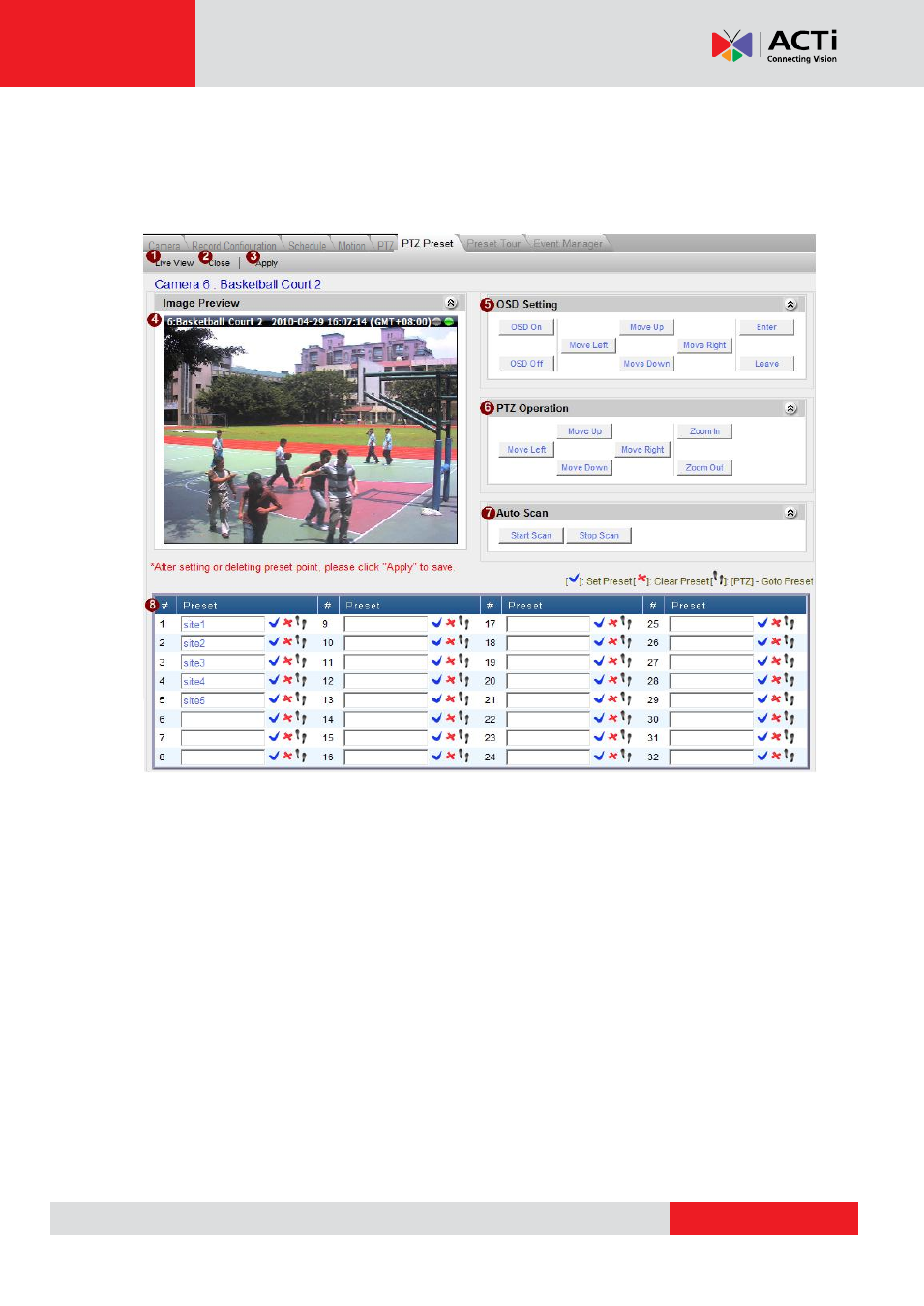

Fig. 34 Camera Setup - PTZ preset
1.
Live View: Click this button to see live view from camera
2.
Close: Click this button to stop previewing current camera in live preview window
3.
Apply: Click this button after you
’ve completed setup to save the settings
4.
Image Preview: You can see the camera preview here
5.
OSD setting Control Panel: For devices that provide On Screen Display control (OSD),
you may open control panel and configure the camera via OSD here.
6.
PTZ Operation Control Panel: You may control camera movement in this panel. Please
note that if the device does not support zoom, then the zoom in / zoom out buttons will
not show up.
7.
Auto Scan Panel: You may setup Auto scan parameters in this panel. For some devices
and PTZ protocol, you can only start or stop the auto scan. The camera will automatically
scan between the left extreme and the right extreme position; for other cases, you may
