7.3 Example for Configuring Virtual Server
7.3.1 Network Requirements
The network administrator builds up a FTP server on the local network and wants to share it
on the internet.
7.3.2 Network Topology

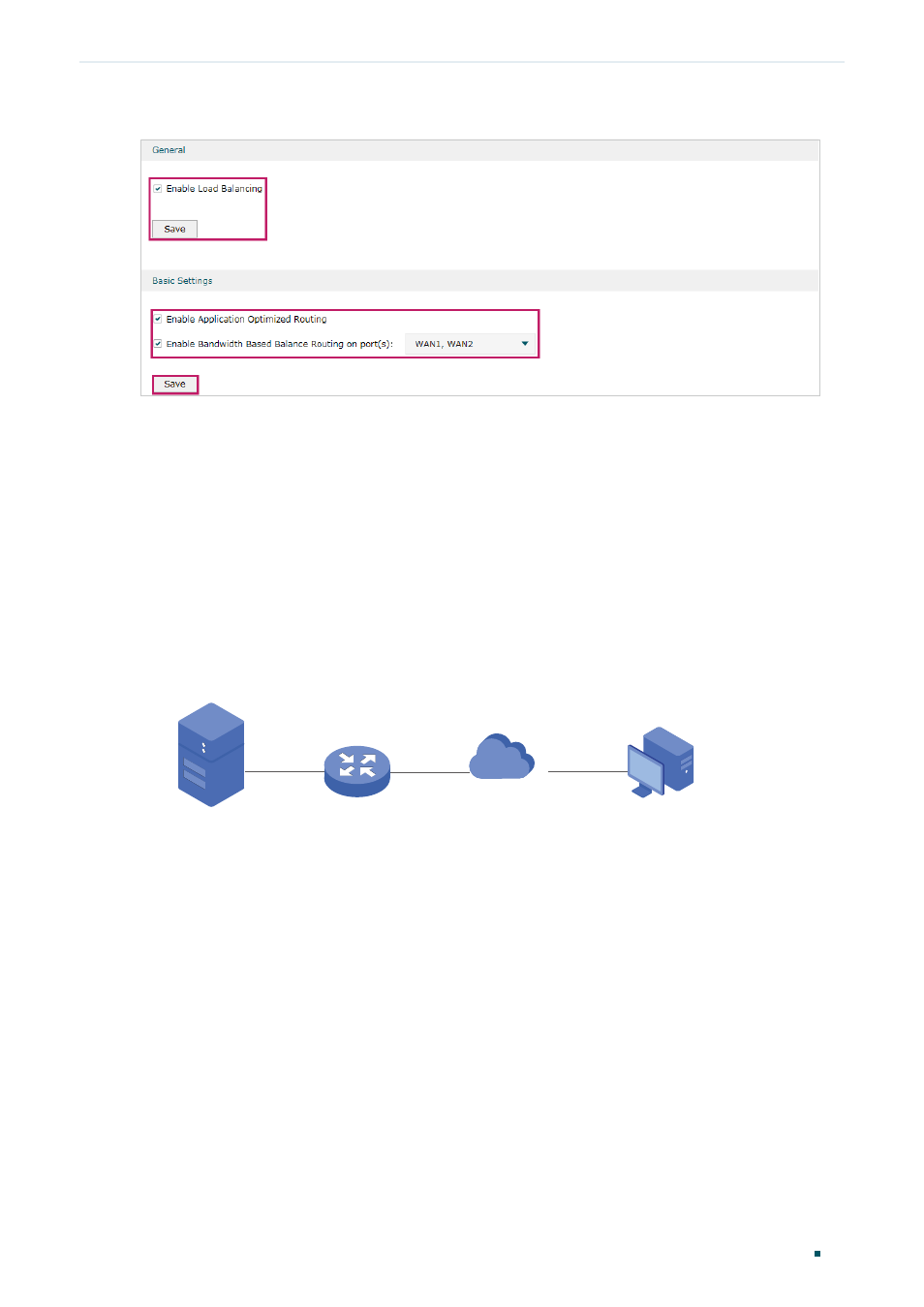

Figure 7-7
Network Topology
Internet
PC
Gateway
FTP Server
IP:192.168.0.100
LAN
WAN1
7.3.3 Configuration Scheme
In this scenario, both virtual server and DMZ host can be configured to meet the
requirement. Here we take configuring Virtual Server as an example, owing to that for a
DMZ host all ports are open which may result in unsafety. Configure the FTP server as a
virtual server on the router so that the FTP server can be accessed by the internet user.
7.3.4 Configuration Procedure
Follow the steps below to configure virtual server on the router:
1) Choose the menu
Transmission > NAT > Virtual Servers
to load the configuration
page, and click
Add
.
