7-22

z

It is required that Switch C and Switch E be configured as static RPF peers of Switch B, and

Switch B be configured as the only static RPF peer of Switch C and Switch E, so that any switch

can receive SA messages only from its static RPF peer(s) and permitted by the corresponding

filtering policy.

Network diagram

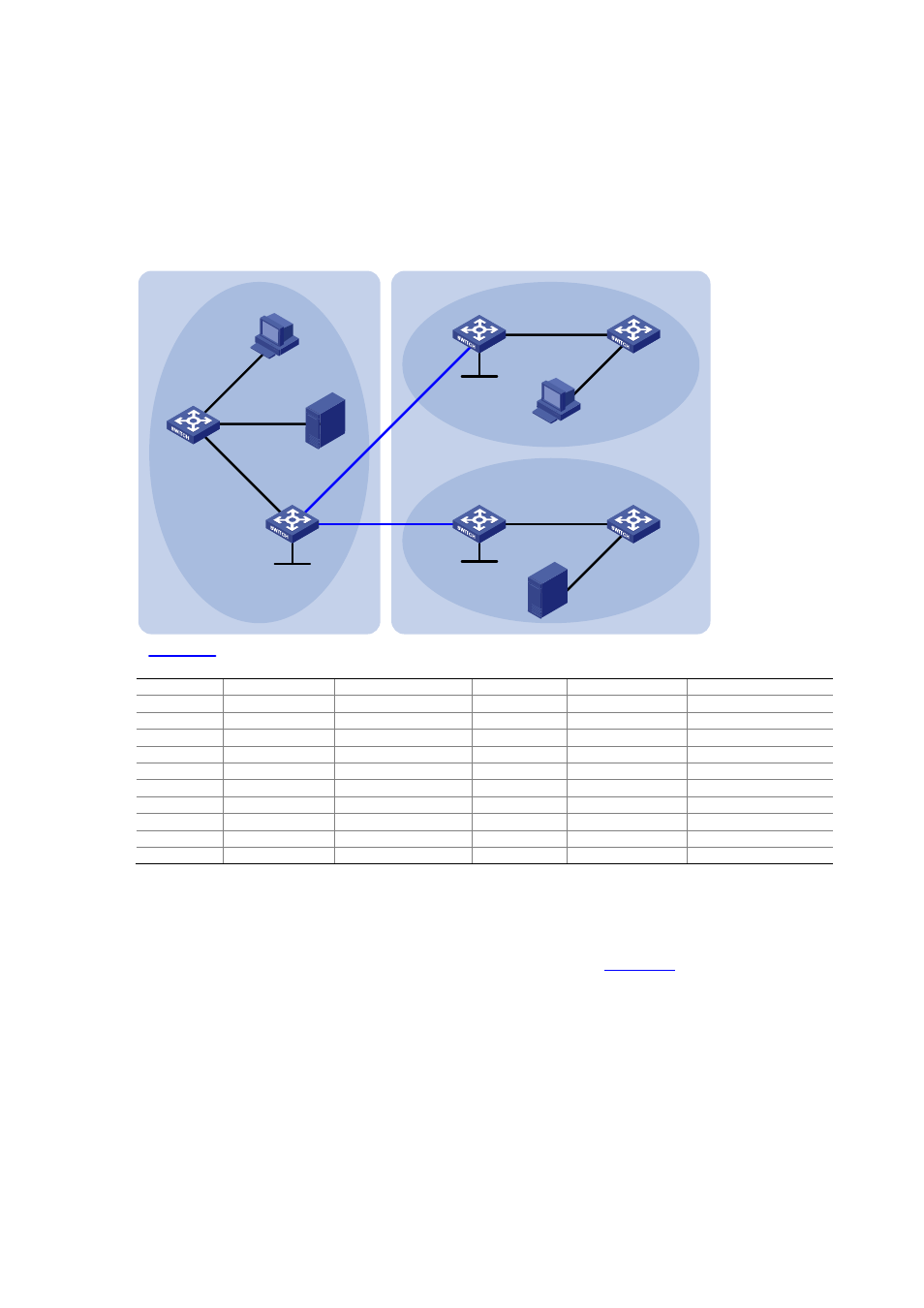

Figure 7-6 Network diagram for inter-AS multicast configuration leveraging static RPF peers

Vlan-int101

Vlan-

int10

2

Switch B

Switch A

Source 1

AS 100

PIM-SM 1

PIM-SM 3

PIM-SM 2

Loop0

Switch C

Switch D

Switch E

Switch F

Source 2

Vlan-int100

Vlan-

in

t103

Vlan-int101

Vlan-int104

Vlan-int105

Loop0

Receiver

Receiver

Loop0

Static RPF peers

Vlan-

int1

03

Vlan-

in

t2

00

Vlan-int104

Vlan-int105

Vl

an-

int300

Vlan-

int40

0

AS 200

Vlan-

int1

02

Device Interface

IP

address

Device Interface

IP

address

Switch A

Vlan-int103

10.110.1.2/24

Switch D

Vlan-int104

10.110.4.2/24

Vlan-int100

10.110.2.1/24

Vlan-int300

10.110.5.1/24

Vlan-int200

10.110.3.1/24

Switch E

Vlan-int105

10.110.6.1/24

Switch B

Vlan-int103

10.110.1.1/24

Vlan-int102 192.168.3.2/24

Vlan-int101

192.168.1.1/24

Loop0

3.3.3.3/32

Vlan-int102

192.168.3.1/24

Switch F

Vlan-int105

10.110.6.2/24

Loop0

1.1.1.1/32

Vlan-int400 10.110.7.1/24

Switch C

Vlan-int101

192.168.1.2/24 Source

1 —

10.110.2.100/24

Vlan-int104

10.110.4.1/24

Source 2

10.110.5.100/24

Loop0

2.2.2.2/32

Configuration procedure

1) Configure IP addresses and unicast routing

Configure the IP address and subnet mask for each interface as per

Figure 7-6.

Detailed configuration

steps are omitted here.

Configure OSPF for interconnection between the switches. Ensure the network-layer interoperation in

each AS, and ensure the dynamic update of routing information among the switches through a unicast

routing protocol. Detailed configuration steps are omitted here.

2) Enable IP multicast routing, enable PIM-SM and IGMP, and configure a PIM-SM domain border

# Enable IP multicast routing on Switch A, enable PIM-SM on each interface, and enable IGMP on the

host-side interface VLAN-interface 200.

<SwitchA> system-view

[SwitchA] multicast routing-enable
