26
Video Operations

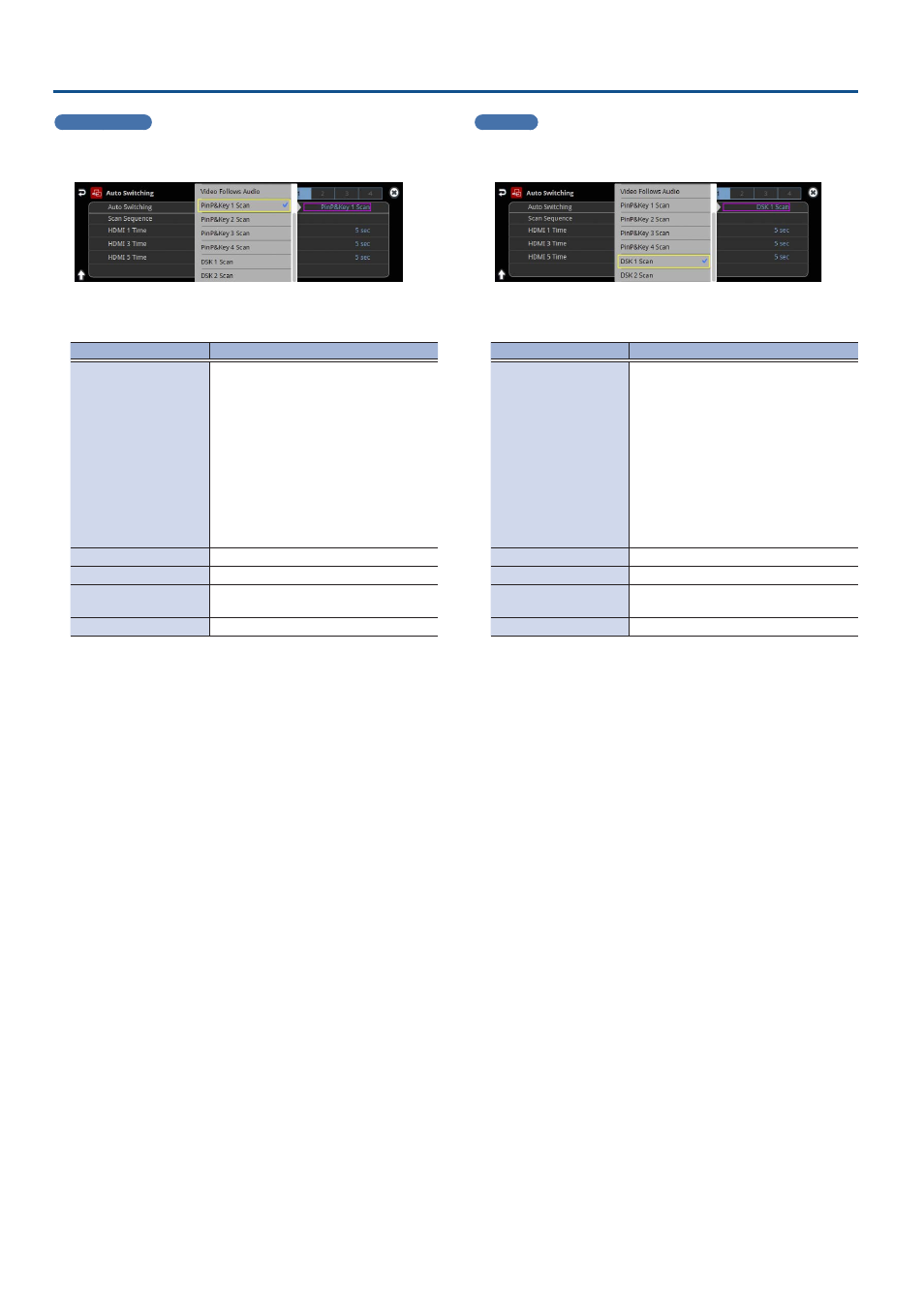

PinP&KEY scan
1 . On the setup screen for the auto-switching function, touch
<Type> to select “PinP&Key 1–4 Scan”.
The setup screen changes accordingly.
2 . Touch the screen to access the settings.
Menu item Explanation
SCAN SEQUENCE
Specifies the order in which video signals
are shown.
Normal:
Switches in the order of HDMI 1
Ó
6, SDI
1
Ó
6, STILL 1
Ó
16.
Reverse:
Switches in the order of STILL 16
Ó
1, SDI
6
Ó
1, HDMI 6
Ó
1.
Random:
Switches randomly.
HDMI 1–8 Time Specifies the time that the video is shown.
SDI 1–8 Time Specifies the time that the video is shown.
Still 1–8 Time
Specifies the time that the still image is
shown.
V.Player Time Specifies the time that the video is shown.
* For details on the parameters, refer to “20: Auto Switching” (p. 141).
3 . Press the [SETUP] button to close the screen.
DSK scan
1 . On the setup screen for the auto-switching function, touch
<Type> to select “DSK 1, 2 Scan”.
The setup screen changes accordingly.
2 . Touch the screen to access the settings.
Menu item Explanation
SCAN SEQUENCE
Specifies the order in which video signals
are shown.
Normal:
Switches in the order of HDMI 1
Ó
6, SDI
1
Ó
6, STILL 1
Ó
16.
Reverse:
Switches in the order of STILL 16
Ó
1, SDI
6
Ó
1, HDMI 6
Ó
1.
Random:
Switches randomly.
HDMI 1–8 Time Specifies the time that the video is shown.
SDI 1–8 Time Specifies the time that the video is shown.
Still 1–8 Time
Specifies the time that the still image is
shown.
V.Player Time Specifies the time that the video is shown.
* For details on the parameters, refer to “20: Auto Switching” (p. 141).
3 . Press the [SETUP] button to close the screen.
