35

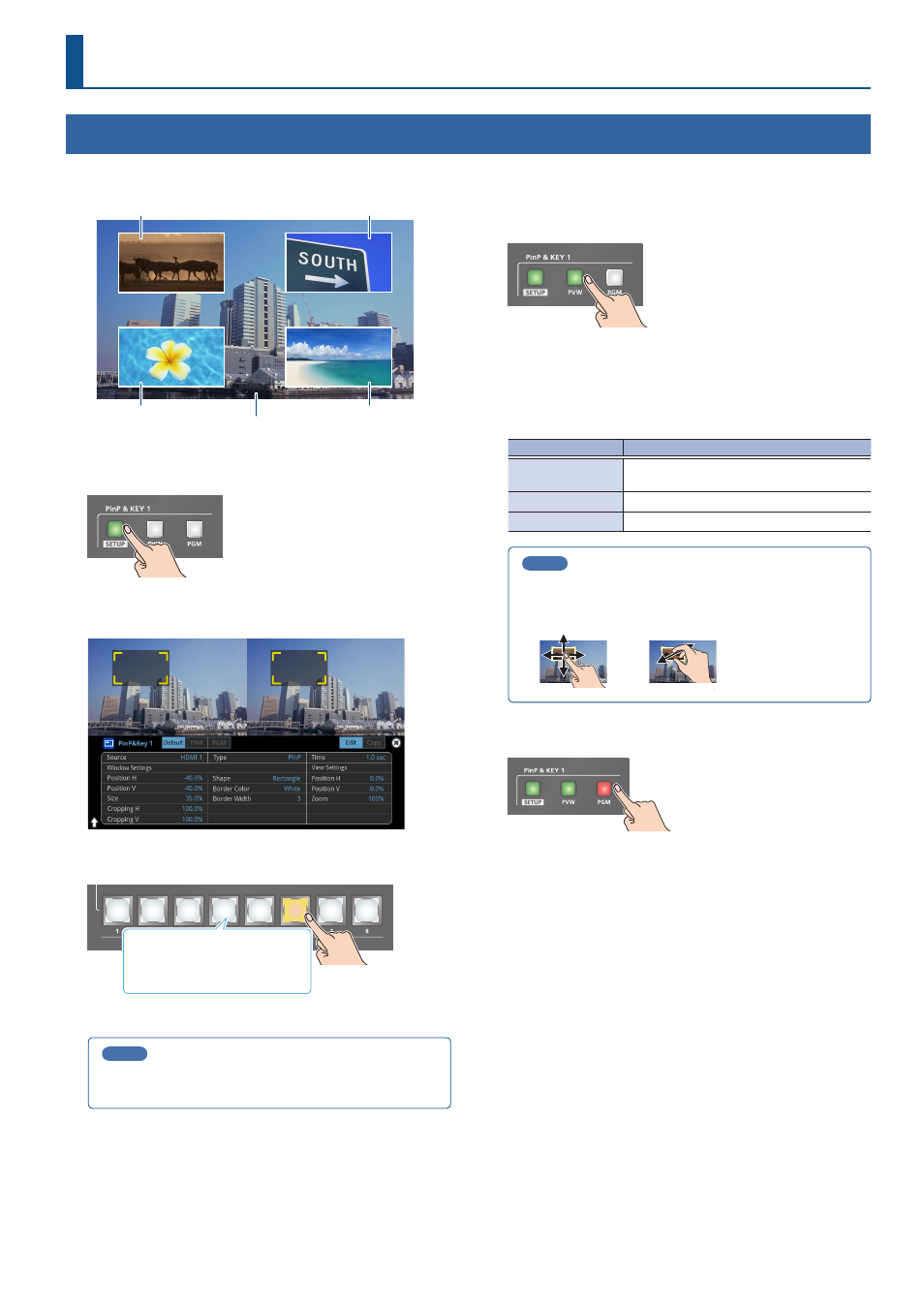

Video Composition Operations
Compositing Video with Picture-in-Picture (PinP)
Here’s how to composite an inset screen onto the background video. You can use PinP & Key 1–4 at the same time to display four inset screens.
This example shows you how to composite video using “PinP & Key 1”. The operation is the same when using “PinP & Key 2–4”.
Inset screen 1 (PinP & Key 1) Inset screen 2 (PinP & Key 2)
Inset screen 3 (PinP & Key 3)
Background video
Inset screen 4 (PinP & Key 4)
1 . Press the PinP & Key 1 [SETUP] button to turn it on (the
button lights up).
The PinP & Key setup screen appears.
Yellow guide lines for the inset screens (PinP & Key 1) are shown in the
multi-view.
2 . Press a VIDEO SWITCHER [1]–[8] button to select the video
you want to make the inset screen.
Yellow: Inset screen video
White: Video input available
Unlit: Video input unavailable
* When selecting a video that is not assigned to Input 1–8, set this in
“Source” on the setup screen.
MEMO
You can also directly touch the multi-view, input-view or still-view
screens to select a video signal.
3 . Press the PinP & KEY 1 [PVW] button to turn on the inset
screen preview output (lit).
The inset screen appears in the PVW section of the multi-view,
allowing you to check the inset screen’s location and size.
At this stage, the final output has not yet been changed.
4 . Touch the setup screen to adjust the position of the inset
screen.
Window Settings Explanation
Position H
Adjusts the horizontal position of the inset
screen.
Position V Adjusts the vertical position of the inset screen.
Size Adjusts the size of the inset screen.
MEMO
Making adjustments by touching the inset screen
You can directly drag on an inset screen to adjust its position, and
you can pinch in/out to adjust its size.
5 . Press the PinP & KEY 1 [PGM] button to turn on PinP
compositing (lit).
The inset screen is displayed on the final output.
6 . To turn off PinP compositing, press the PinP & KEY 1 [PGM]
button once again.
