Audio Operations

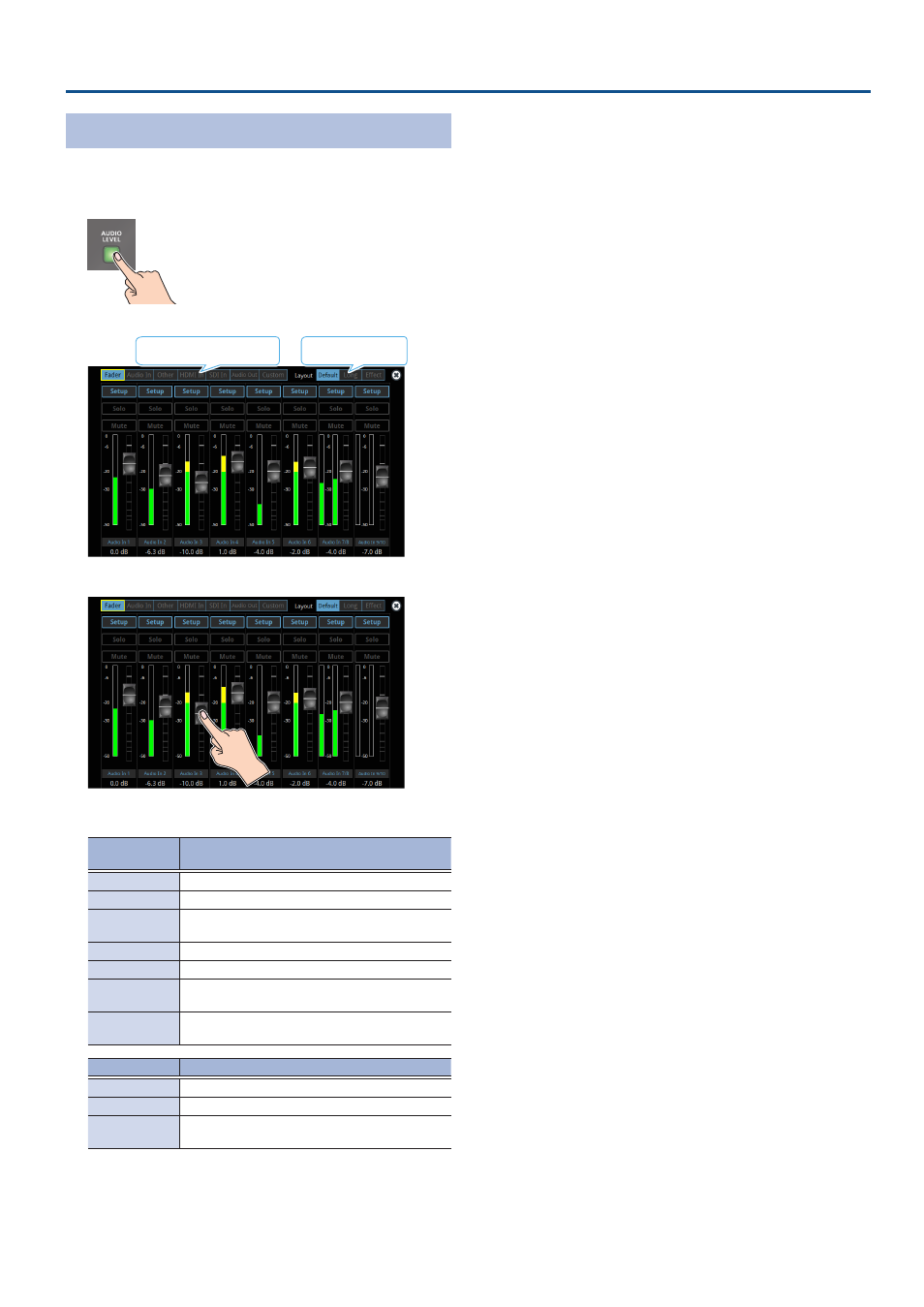

Adjusting the Volume Balance from the Mixer Screen
The mixer screen on this unit’s display lets you adjust the various volumes
while checking their values.
1 . Press the [AUDIO LEVEL] button.
The Audio Level screen appears.
Layout selector Selector for content display
2 . Drag the faders on the screen to adjust the volumes.
You can switch between content displays and layout by using the tabs
at the top of the screen.
Content
displayed
Explanation
Fader Audio source assigned to a channel
Audio In Audio from AUDIO IN 1–9/10 jacks
Other
Audio from USB STREAM port, Bluetooth In, audio
player and video player
HDMI In Audio from HDMI IN 1–6 connectors
SDI In Audio from SDI IN 1–6 connectors
Audio Out
Output from Main Bus, AUX 1–2 Bus, USB Out,
Stream/Record
Custom
Custom settings. This lets you freely assign the
inputs and outputs.
Layout Explanation
Default The standard layout.
Long Layout with longer fader travel.
Effect
Layout which shows other parameters such as
effects.
3 . Press the [AUDIO LEVEL] button to close the screen.
