96

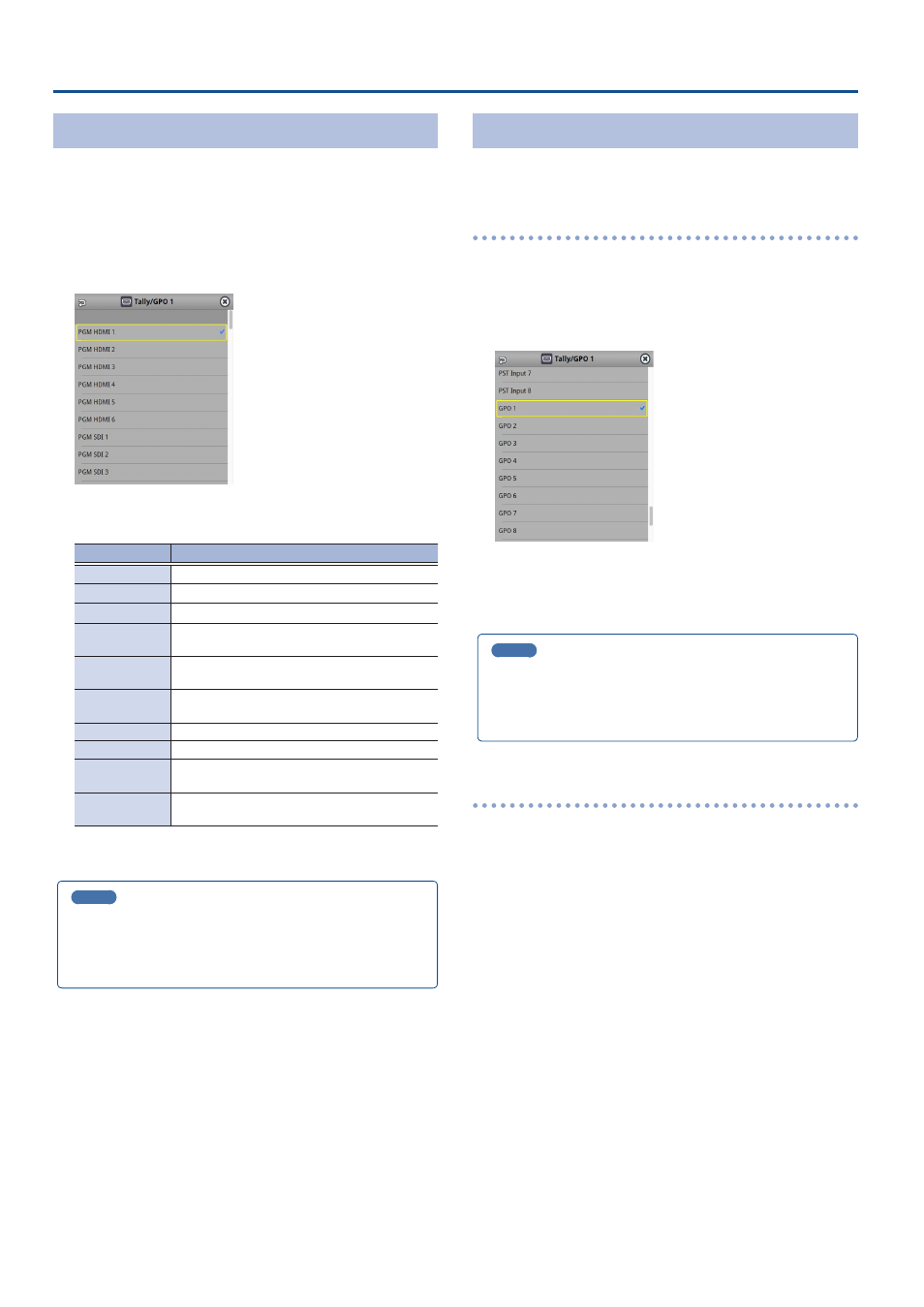

Other Functions

Outputting a Tally Signal

Pins 1–16 of the TALLY/GPIO connector can be used to output a tally.

A tally signal is output from the connector pins whenever a VIDEO

SWITCHER button is selected.

1 .

[MENU] button

Ó

“RS-232/Tally/GPO/GPI”

Ó

“Tally/GPO”

Ó

select “Tally/GPO 1”–“Tally/GPO 16”, and press the [VALUE]

knob.

2 .

Use the [VALUE] knob to select the tally signal assigned to

the connector pins and then press the [VALUE] knob.

Value

Explanation

PGM HDMI 1–6

Video for which the final output is HDMI IN 1–6.

PGM SDI 1–6

Video for which the final output is SDI IN 1–6.

PGM Still 1–16

The final output is still images 1–16.

PGM Video

Player

The final output is the video from the video player.

PGM Input 1–8

Use the VIDEO SWITCHER [1]–[8] buttons to select

the final output video.

PST HDMI 1–6

Video for which the preview output is HDMI IN

1–6.

PST SDI 1–6

Video for which the preview output is SDI IN 1–6.

PST Still 1–16

The preview output is still images 1–16.

PST Video Player

The preview output is the video from the video

player.

PST Input 1–8

Use the VIDEO SWITCHER [1]–[8] buttons to select

the preview output video.

3 .

Press the [MENU] button to close the menu.

MEMO

Use a settings template to change the assignments for the connector

pins all at once.
Select a template from “Template” in the Tally/GPO menu and then

press the [VALUE] knob to apply the settings.

Outputting a Control Signal

You can use connector pins 1–16 of the TALLY/GPIO connector as GPOs to

output control signals.

Assigning the GPOs

You can assign pins 1–16 of the TALLY/GPIO connector to the GPOs (1–16)

in order to output control signals.

1 .

[MENU] button

Ó

“RS-232/Tally/GPO/GPI”

Ó

“Tally/GPO”

Ó

select “Tally/GPO 1”–“Tally/GPO 16”, and press the [VALUE]

knob.

2 .

Use the [VALUE] knob to select one of “GPO 1”–“GPO 16”,

and press the [VALUE] knob.

3 .

Press the [MENU] button to close the menu.

MEMO

Use a settings template to change the assignments for the

connector pins all at once.
Select a template from “Template” in the Tally/GPO menu and

then press the [VALUE] knob to apply the settings.

Outputting a control signal

Control signals are outputted when you operate a USER button,

footswitch or other control to which a GPO output function has been

assigned.

Using the USER buttons

The USER buttons light up while control signals are being output.

Ø

“Assigning Functions to the USER Buttons” (p. 90)

Using a footswitch

Ø

“Using a Footswitch” (p. 93)

Inputting an external control signal (GPI)

Ø

“Inputting a Control Signal” (p. 95)
