5-4 W A N s u i t e 5 2 6 0 / 5 2 3 0
To enter an established password, press the SCROLL button until the desired
character appears (the characters scroll 0–9, A–Z, and a–z for a total of 62
distinct characters), then press the
SELECT button to enter that character.
Continue selecting the appropriate characters until the last character is
entered. Finally, press the
EXIT button. A correctly entered password advances
the unit to the Main Menu screen. An incorrectly entered password returns an
“Idle” screen. If unsuccessful, reenter the password.
NOTICE: Remember that passwords are case-sensitive. When logging on, you
must enter the password exactly as it was programmed.
Interface Conventions

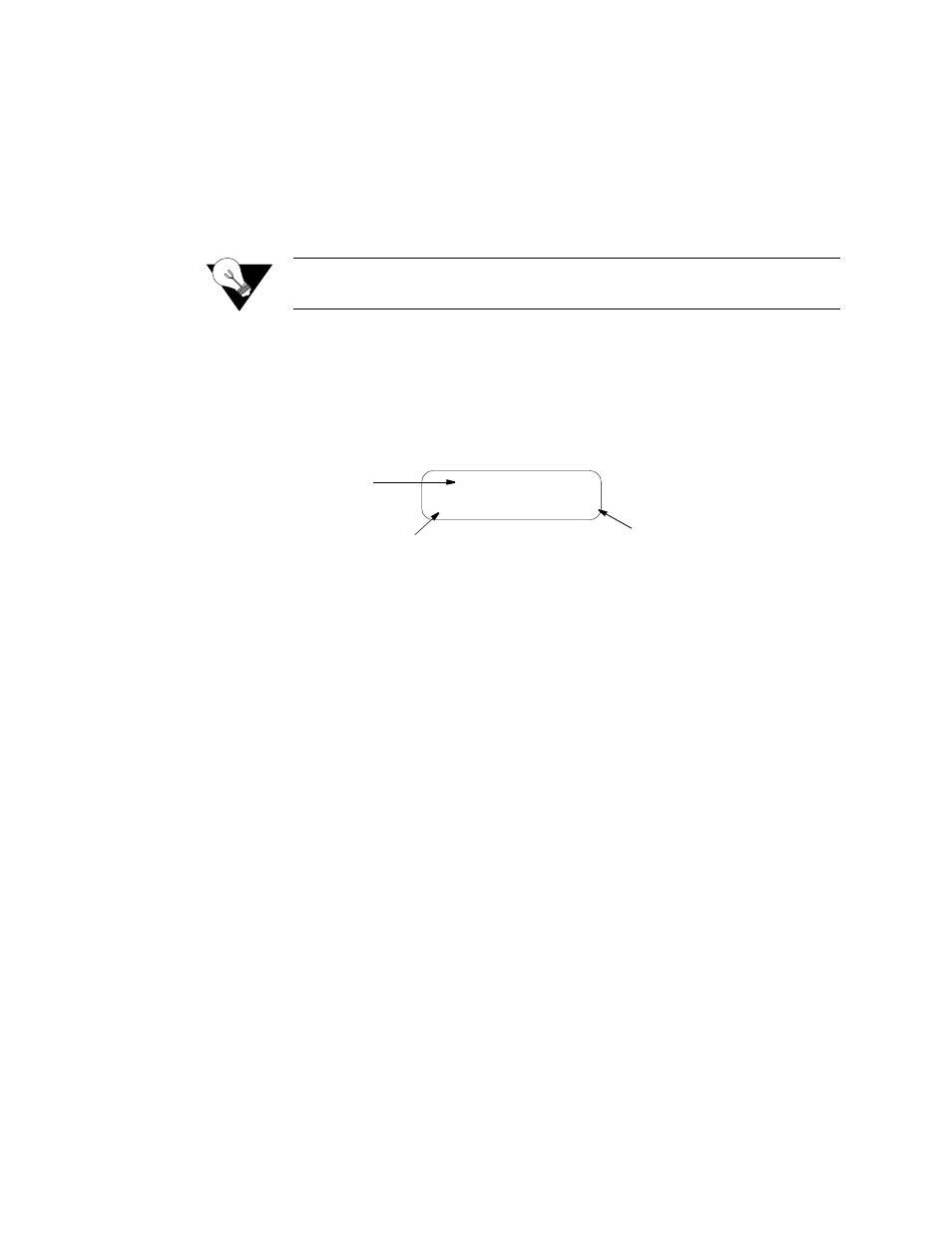

Figure 5.5 shows a front panel display consisting of a menu title, the menu
element, and the information element.
Menu Title
The menu title shows the general classification for a group of accessible
functions.
Menu Element
There are three types of menu elements, distinguished in this manual by the
box type shown in the menu diagrams.
•
A large, solid box denotes user-selectable menus with lower level menu items.
•
A dashed box lists user-selectable parameters. Press SELECT to execute the
displayed configuration.
• A small, solid box indicates either a non -selectable status or a field in which a
particular value can be entered.
For example, refer to WANsuite 5260 Alarms Menu Tree on page 5-6. The
upper-level menus are shown within a large, solid box, which indicates they
are user-selectable menus. The lower-level menus are in dashed boxes to
indicate user-selectable parameters. The smaller, solid boxes under “Net 15
Min Perf” indicate that values can be entered in these fields.
The menu element is a menu or submenu accessible by pressing the SELECT
button. When you select a menu element, it becomes the menu title and the
next lower level in the hierarchy becomes the menu element. For example, if
the MAIN MENU menu element is NET 1 CONFIG, pressing the
SELECT
button moves NET 1 CONFIG up to the menu title level and FRAMING
moves up to the menu element level with CAS being displayed as the option.
Menu Element
NET CONFIG
FRAMING: C AS
Menu Title
Information Element
Figure 5.5 LCD Menu Example Showing Screen Elements
