TP-Link TL-WR902AC AC750 Wireless Dual-Band Travel Router - Manual (Page 122)

115
Chapter 6 Configure the Router in Range Extender Mode

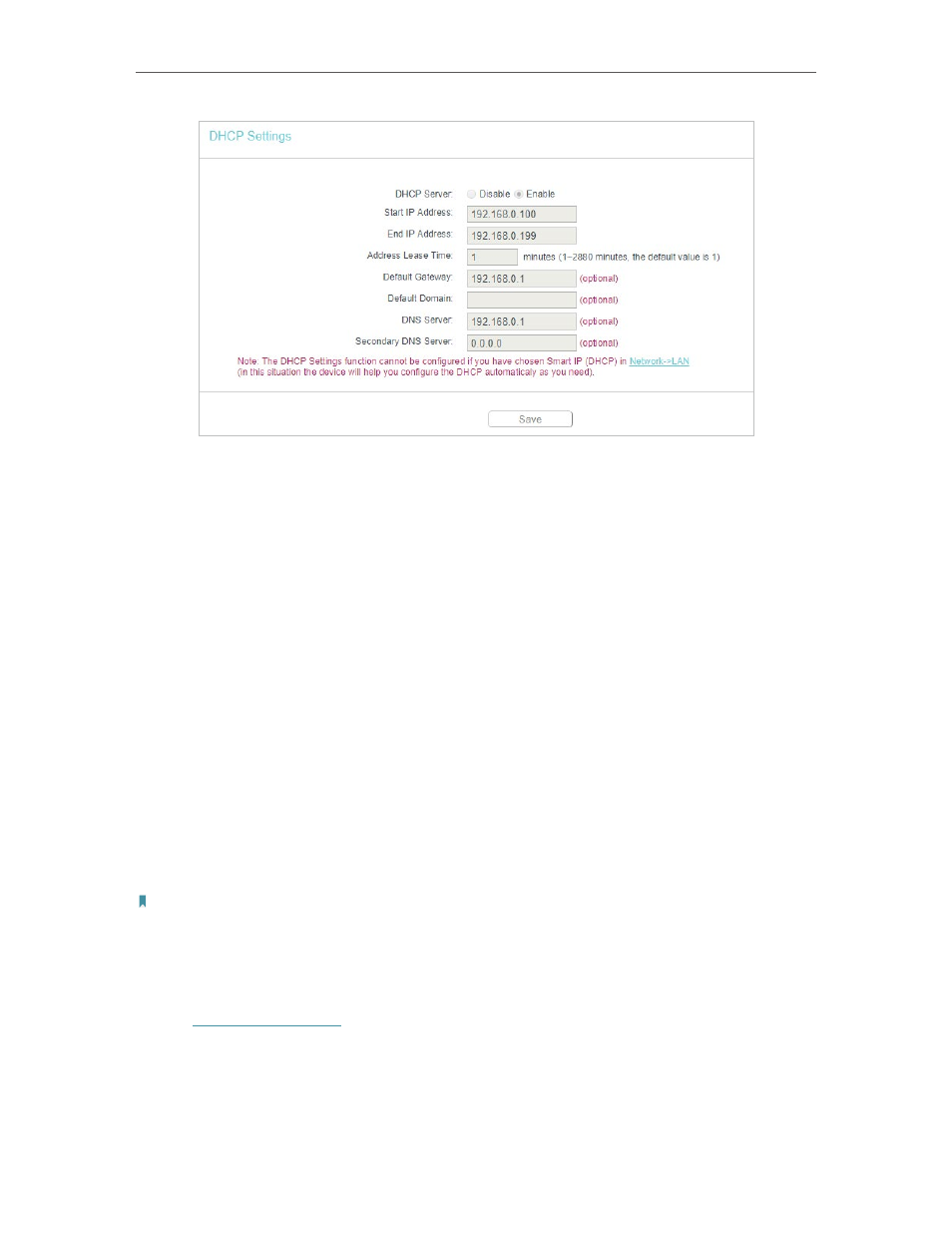

• DHCP Server - Enable or disable the DHCP server. If disabled, you must have another
DHCP server within your network or else you must configure the computer manually.
• Start IP Address - Specify an IP address for the DHCP Server to start with when
assigning IP addresses. 192.168.0.100 is the default start address.
• End IP Address - Specify an IP address for the DHCP Server to end with when assigning
IP addresses. 192.168.0.199 is the default end address.
• Address Lease Time - The Address Lease Time is the amount of time a network user
will be allowed to connect to the router with the current dynamic IP Address. When
time is up, the user will be automatically assigned a new dynamic IP address. The
range of the time is 1 ~ 2880 minutes. The default value is 120.
• Default Gateway (Optional) - It is suggested to input the IP address of the LAN port of
the router. The default value is 192.168.0.254.
• Default Domain (Optional) - Input the domain name of your network.
• Primary DNS (Optional) - Input the DNS IP address provided by your ISP.
• Secondary DNS (Optional) - Input the IP address of another DNS server if your ISP
provides two DNS servers.
Note: To use the DHCP server function of the router, you must configure all computers on the LAN as
Obtain an IP Address automatically .
6. 5. 2. DHCP Client List
1. Visit http://tplinkwifi.net , and log in with the username and password you set for the
router.
2. Go to DHCP > DHCP Client List to view the information of the clients connected to
the router.
